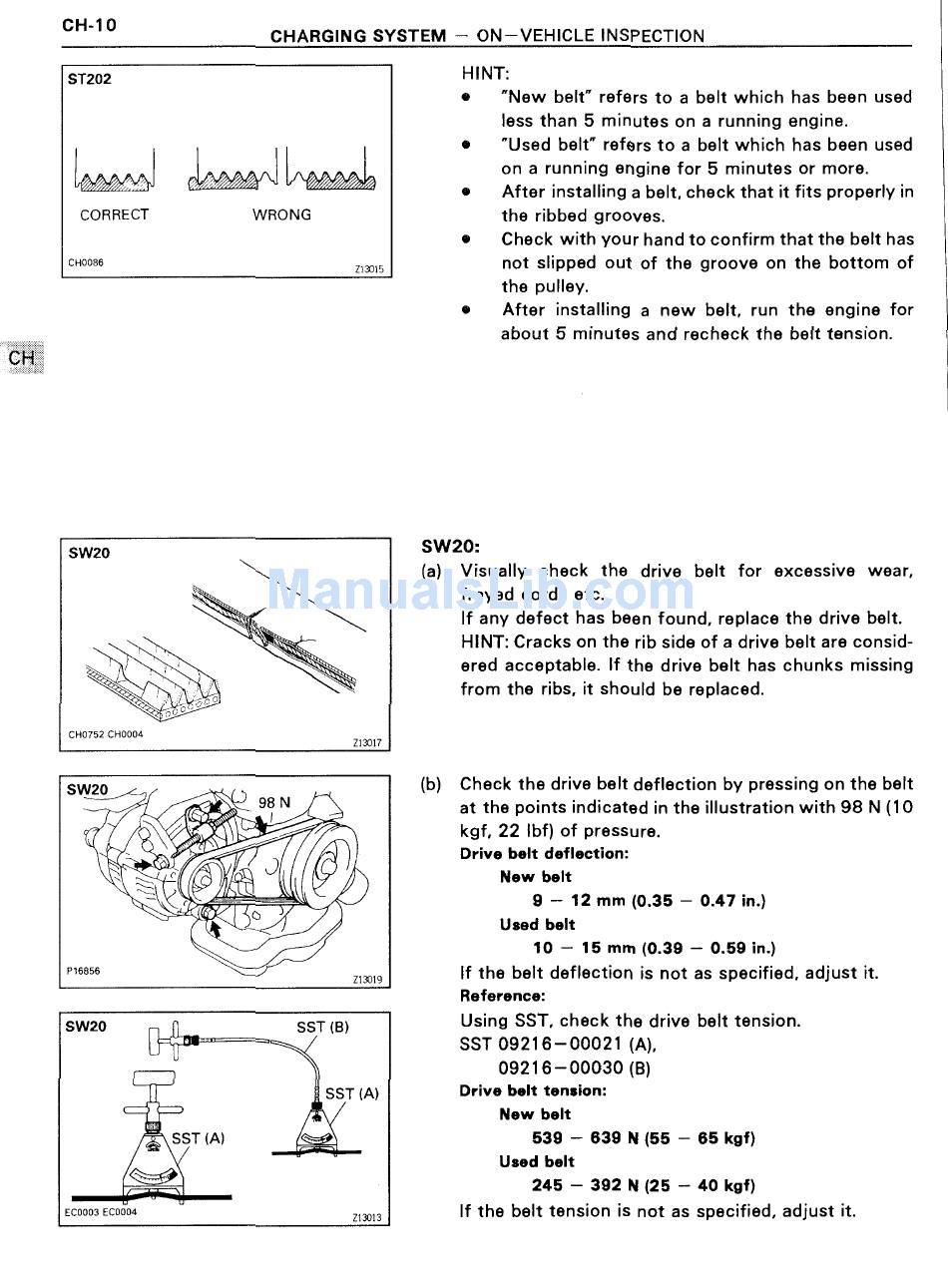

Toyota 3S-GE Repair Manual page 474

CH-10
CHARGING SYSTEM —— ON—VEHICLE INSPECTION
ST202
CORRECT WRONG
CH0086 213015
HINT:
0 "New belt" refers to a belt which has been used
less than 5 minutes on a running engine.
O "Used belt" refers to a belt which has been used
on a running engine for 5 minutes or more.
0 After installing a belt, check that it fits properly in
the ribbed grooves.
0 Check with your hand to confirm that the belt has
not slipped out of the groove on the bottom of
the pulley.
0 After installing a new belt, run the engine for
about 5 minutes and recheck the belt tension.
SW20
l \{'~~_
. 1 \\{~~._
.» , '\;~
I _ .
, _./. ,/O0
'Ta 50° 'O
cnorsz CH0004 mm?
\ I3)
\\
$VL2_9//
tits. 9
'
SW20 U ( SST (B)
SST IA)
SST (Al
EC0003 EC0004 213013
Visually check the drive belt for excessive wear,
frayed cords etc.
If any defect has been found, replace the drive belt.
HINT: Cracks on the rib side of a drive belt are consid-
ered acceptable. If the drive belt has chunks missing
from the ribs, it should be replaced.
Check the drive belt deflection by pressing on the belt
at the points indicated in the illustration with 98 N (10
kgf, 22 Ibf) of pressure.
Drive belt deflection:
New belt
9 — 12 mm (0.35 — 0.47 in.)
Used belt
10 — 15 mm (0.39 —- 0.59 in.)
If the belt deflection is not as specified, adjust it.
Reference:
Using SST, check the drive belt tension.
SST 09216-00021 (A).
09216-00030 (B)
Drive belt tension:
New belt
539 — 639 N (55 — 65 kgf)
Used belt
245 — 392 N (25 -— 40 kgf)
If the belt tension is not as specified, adjust it.
