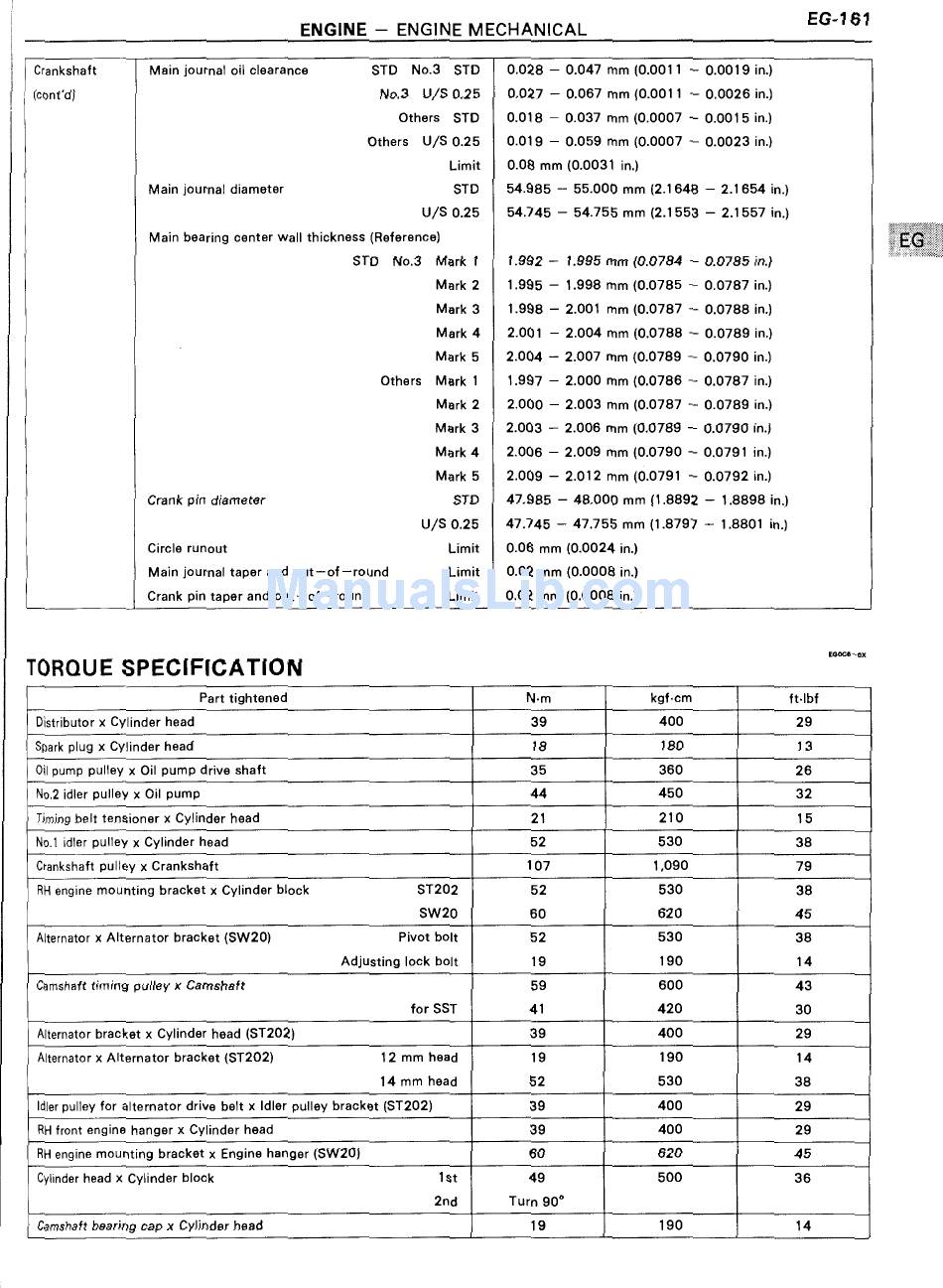

ENGINE — ENGINE MECHANICAL
f Crankshaft Main journal oil clearance STD No.3 STD
(cont'd) No.3 U/S 0.25
Others STD
Others U/S 0.25
Limit
Main journal diameter STD
U/S 0.25
Main bearing center wall thickness (Reference)
STD No.3 Mark 1
Mark 2
Mark 3
Mark 4
Mark 5
Mark 1
Mark 2
Mark 3
Mark 4
Mark 5
Crank pin diameter STD
U/S 0.25
Limit
Others
Circle runout
Main journal taper and out—of—round Limit
Crank pin taper and out—of—round Limit
0.028 — 0.047 mm (0.0011 — 0.0019 in.)
0.027 -— 0.067 mm (0.0011 — 0.0026 in.)
0.018 — 0.037 mm (0.0007 — 0.0015 in.)
0.019 — 0.059 mm (0.0007 —— 0.0023 in.)
0.08 mm (0.0031 in.)
54.985 — 55.000 mm (2.1648 — 2.1654 in)
54.745 — 54.755 mm (2.1553 — 2.1557 in)
1.992 — 1.995 mm (0.0784 — 0.0785 in.)
1.995 — 1.998 mm (0.0785 —— 0.0787 in.)
1.998 — 2.001 mm (0.0787 —— 0.0788 in.)
2.001 — 2.004 mm (0.0788 — 0.0789 in.)
2.004 — 2.007 mm (0.0789 — 0.0790 in.)
1.997 — 2.000 mm (0.0786 — 0.0787 in.)
2.000 — 2.003 mm (0.0787 —— 0.0789 in.)
2.003 -— 2.006 mm (0.0789 —— 0.0790 in.)
2.006 — 2.009 mm (0.0790 — 0.0791 in.)
2.009 — 2.012 mm (0.0791 — 0.0792 in.)
47.985 — 48.000 mm (1.8892 — 1.8898 in)
47.745 — 47.755 mm (1.8797 — 1.8801 in)
0.06 mm (0.0024 in.)
0.02 mm (0.0008 in.)
0.02 mm (0.0008 in.)
TORQUE SPECIFICATION
Part tightened
N-m kgf-cm ft Ibf
Distributor x Cylinder head
39 400
Spark plug x Cylinder head
18 180
Oil pump pulley x Oil pump drive shaft
35 360
No.2 idler pulley x Oil pump
44 450
Timing belt tensioner x Cylinder head
21 210
No.1 idler pulley x Cylinder head 52 530
Crankshaft pulley x Crankshaft 107 1,090
ST202
SW20
RH engine mounting bracket x Cylinder block
52 530
60 620
Alternator x Alternator bracket (SW20) Pivot bolt
Adjusting lock bolt
52 530
19 190
Camshaft timing pulley x Camshaft
for SST
59 600
41 420
Alternator bracket x Cylinder head (ST202)
39 400
12 mm head
14 mm head
Alternator x Alternator bracket (ST202) 19 190
52 530
Idler pulley for alternator drive belt x Idler pulley bracket (ST202)
39 400
RH front engine hanger x Cylinder head 39 400
RH engine mounting bracket x Engine hanger (SW20)
60 620
Cylinder head x Cylinder block 1st
2nd
49 500
Turn 90°
Camshaft bearing cap x Cylinder head
19 190
