EG'39° ENGINE — LUBRICATION SYSTEM
2.
' (8)
£5:
I} ssr
P'IS65l
1
) C
.4' §
g§~.Q;
C C
c ¢
C' @-
P15682
t\-
I
SST
I.
PI5683
/A
\_
Cut Position
E I ./
..' » 5i ; ;/; $1)
/ s t » / i <
r
/\
\
2
? '
Pl69l1
Uo(,>)/
/\
/\
SST
P1691?

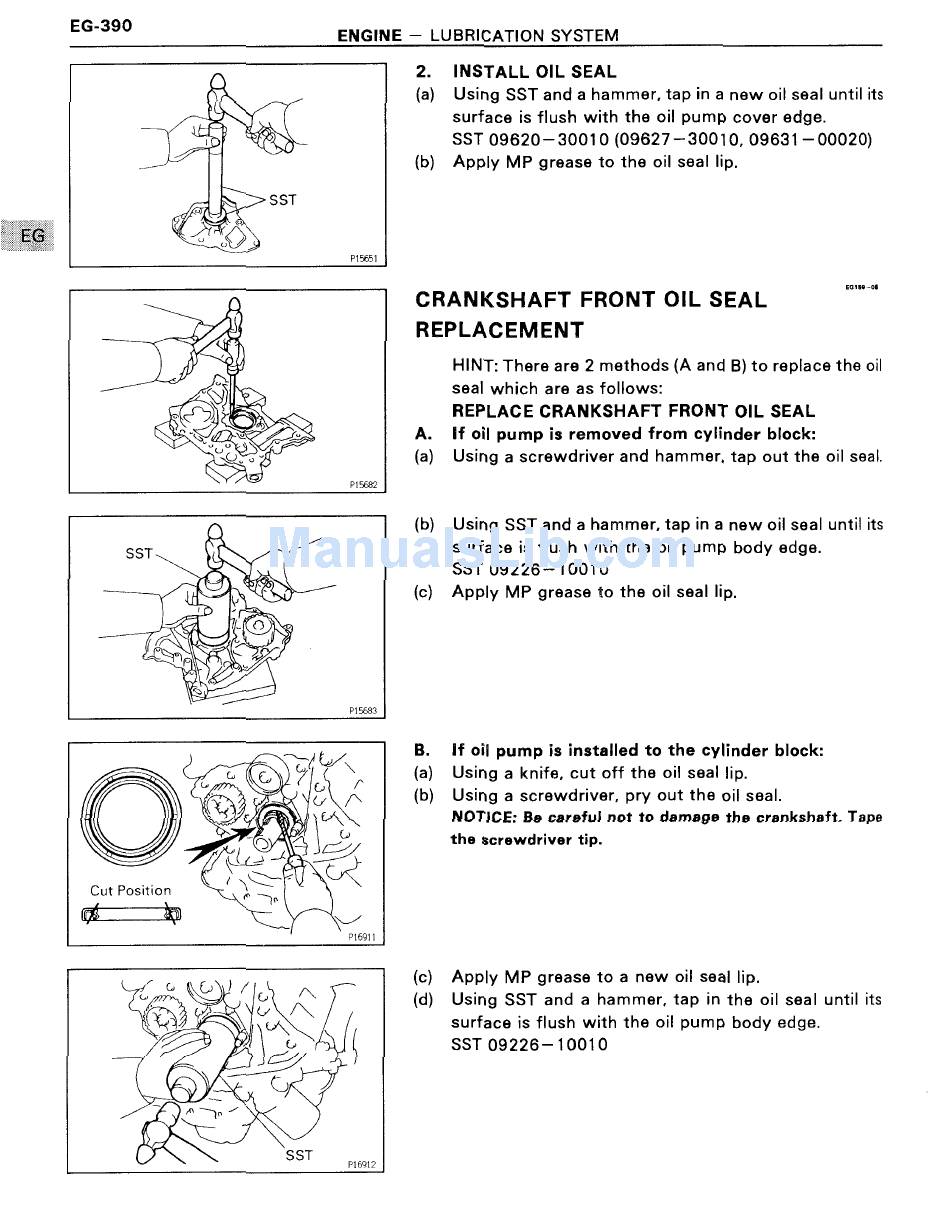

INSTALL OIL SEAL
Using SST and a hammer, tap in a new oil seal until its
surface is flush with the oil pump cover edge.
SST 09620-30010 (09627—300l0, 09631-00020)
(b) Apply MP grease to the oil seal lip.
EUIll—0l
CRANKSHAFT FRONT OIL SEAL
REPLACEMENT
HINT: There are 2 methods (A and B) to replace the oil
seal which are as follows:
REPLACE CRANKSHAFT FRONT OIL SEAL
A. If oil pump is removed from cylinder block:
(a) Using a screwdriver and hammer, tap out the oil seal.
(b) Using SST and a hammer, tap in a new oil seal until its
surface is flush with the oil pump body edge.
SST 09226-10010
(c) Apply MP grease to the oil seal lip.
B. If oil pump is installed to the cylinder block:
(a) Using a knife. cut off the oil seal lip.
(b) Using a screwdriver, pry out the oil seal.
NOTICE: Be careful not to damage the crankshaft. Tape
the screwdriver tip.
(c) Apply MP grease to a new oil seal lip.
(d) Using SST and a hammer, tap in the oil seal until its
surface is flush with the oil pump body edge.
SST 09226-10010
