Toyota 3S-GE Repair Manual page 135

ENGINE — ENGINE MECHANICAL E6421
swzqe '
I-5}!/gd'}'%i)I
e /Jsé"
. i q uégl
Y.
/I@~ I v" "Q
pk.»
Q
Water ~
Bypass
l15§51
- ii (3)
(bi
Hose \ "
SW
/'C/" te
¢\ ? " ' ~ %
@3
'\\
%@
9§3:'.__,4
Q 'fig (3)
Pl68'50
W'
8/) \ Fuet 8
Q '\ I
I' 'Sp / l
's¥~ if'
€'3\ 2 s. '
r Fuel Inlet Pipe H6849
Protrusion: Q
Downward mm
,9
\§A i" ' b '
8
T \
W' "re Q
SW20:

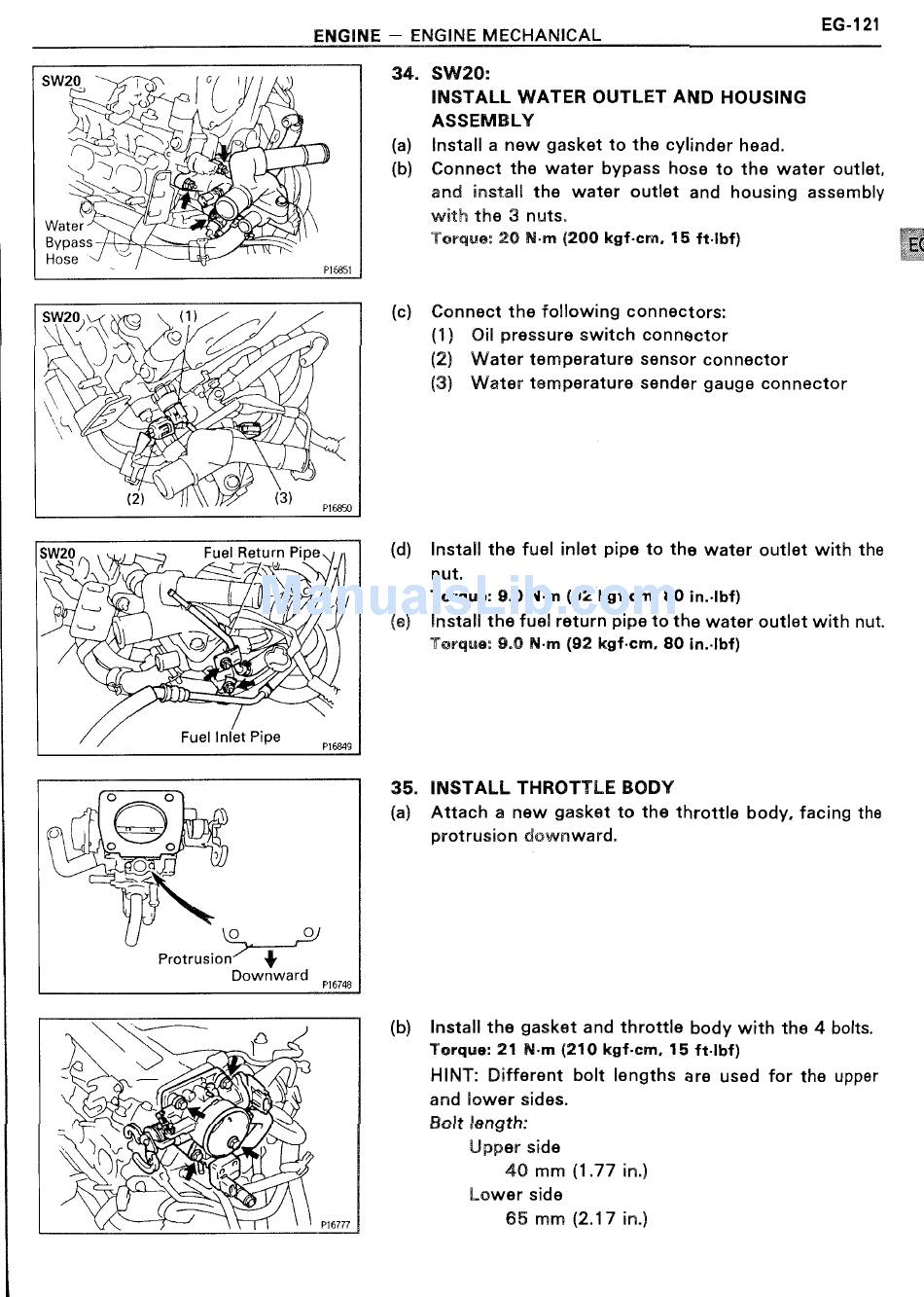

INSTALL WATER OUTLET AND HOUSING
ASSEMBLY
lnstall a new gasket to the cylinder head.
Connect the water bypass hose to the water outlet,
and install the water outlet and housing assembly
with the 3 nuts.
Torque: 20 N-m (200 kgf-cm. 15 ft-Ibf)
Connect the following connectors:
(1) Oil pressure switch connector
(2) Water temperature sensor connector
(3) Water temperature sender gauge connector
Install the fuel inlet pipe to the water outlet with the
nut. A A
Torque: 9.0 N-m (92 kgf-cm. 80 in.-Ibf)
lnstall the fuel return pipe to the water outlet with nut.
Torque: 9.0 N-m (92 kgf-cm. 80 in.-Ibf)
INSTALL THROTTLE BODY
Attach a new gasket to the throttle body, facing the
protrusion downward.
lnstall the gasket and throttle body with the 4 bolts.
Torque: 21 N-m (210 kgf-cm. 15 ft-Ibf)?
HINT: Different bolt lengths are used for the upper
and lower sides.
Bolt length:
Upper side
40 mm (1.77 in.)
Lower side
65 mm (2.17 in.)
