Toyota 3S-GE Repair Manual page 79

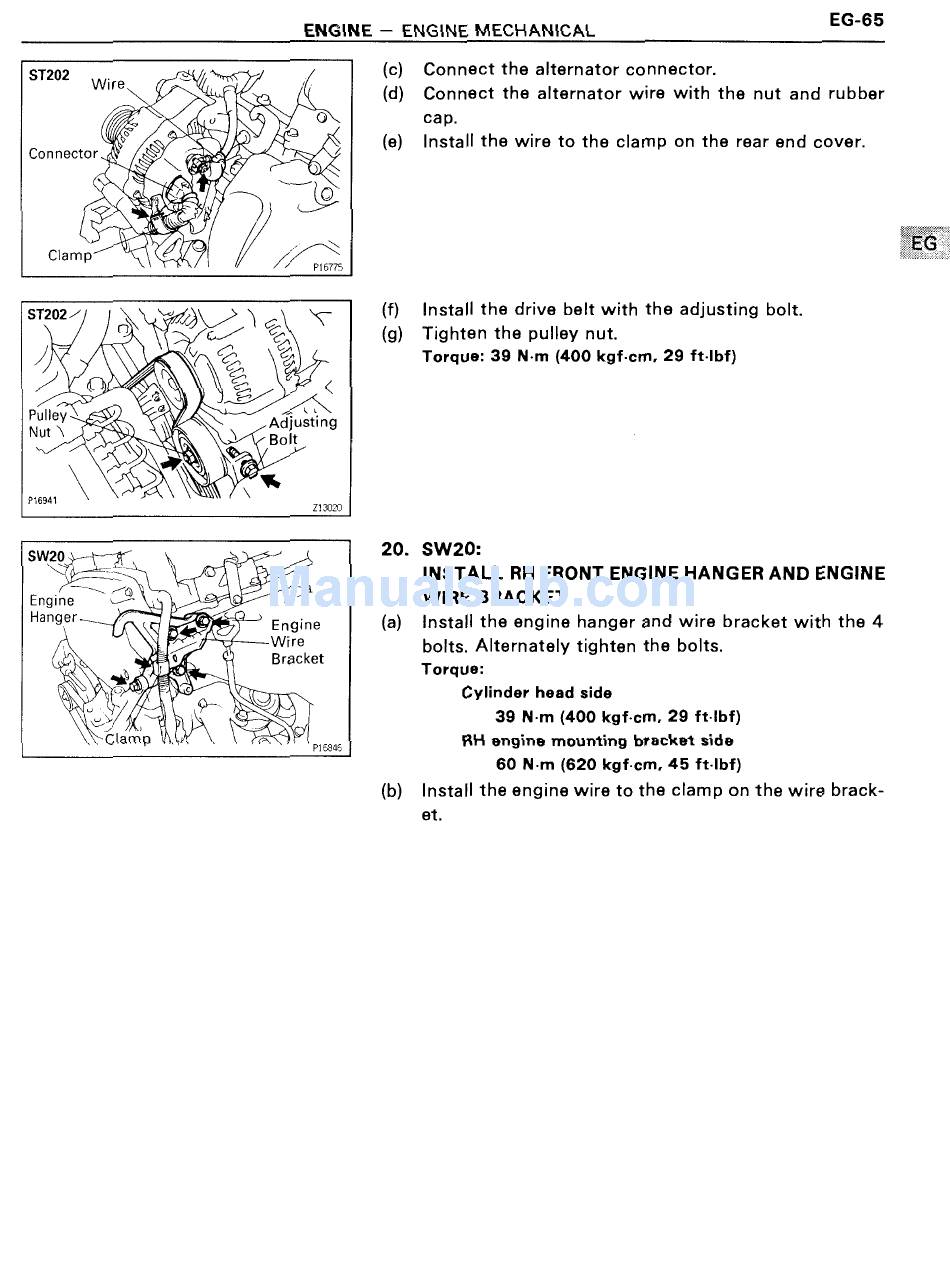

ENGINE — ENGINE MECHANICAL EG_65
ST202 _ (c) Connect the alternator connector.
Wire
Connector
Clamp
'9
r' * V(' ~ \
1i
2;?'
16¢ 0
96
w k/ I
(d) Connect the alternator wire with the nut and rubber
O cap.
/ (e) Install the wire to the clamp on the rear end cover.
ST202 /
Pulley -\ 1 "-
Nut\ \ Ad]US'(lI'lg
\ \\\ \
P16941
3/
. 4
\.
<\ < \ < \ < \ C §\ ' \
>;\
\
Q'. Bolt
'7") F'
\' '5
P 67
\_ (f) Install the drive belt with the adjusting bolt.
(g) Tighten the pulley nut.
Torque: 39 N-m (400 kgf-cm. 29 ft-Ibf)
Z1302!)
SW20
\ g"-:7'
. _"\ /0 '.
Engine \/ I
Hanger
.._
l g '
Ue'>/ I
\-Clamjp I
-:~ N'. /
>2;
2.-\
xi r
20. SW20:
INSTALL RH FRONT ENGINE HANGER AND ENGINE
- WIRE BRACKET
- - Engine (a) Install the engine hanger and wire bracket with the 4
Wife bolts. Alternately tighten the bolts.
Bracket
Torque:
Cylinder head side
39 N-m (400 kgf-cm, 29 ft-Ibf)
mm RH engine mounting bracket side
60 N-m (620 kgf-cm, 45 ft-Ibf)
(b) Install the engine wire to the clamp on the wire brack-
91.
