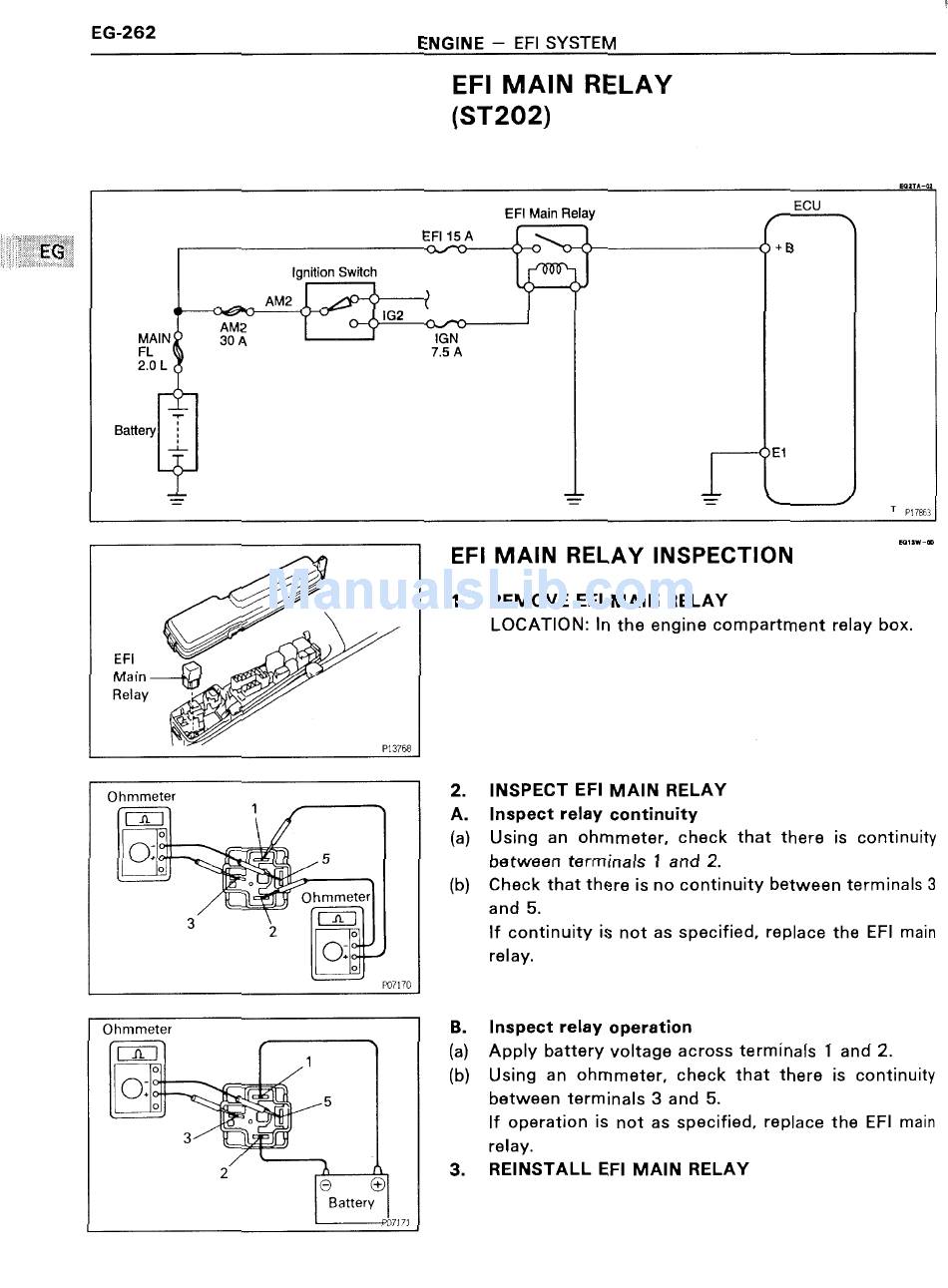

ENGINE — EFI SYSTEM
EFI MAIN RELAY
(ST202)
semi-aq_
EFI Main Relay /-52%
- EFI 15 A
Os/'O o 0 0 0 0 + B
Ignltlon Switch ' "
,iIIi,
O§0.0)
AM2 ' °
MAIN ° 30 A
F \ 7 5 A
O
--l
FOE1
-: : : T mesa
IGIIVI U
EFI MAIN RELAY INSPECTION
/ 1 REMOVE EFI MAIN RELAY
M LOCATION: In the engine compartment relay box.
3-e
é v
<¥~ s
./.)@,I
fiJ\
ti. as O\
§
l ; l " i l i | T
INSPECT EFI MAIN RELAY
Inspect relay continuity
Using an ohmmeter, check that there is continuity
between terminals 1 and 2.
Check that there is no continuity between terminals 3
and 5.
If continuity is not as specified, replace the EFI main
relay.
Inspect relay operation
Apply battery voltage across terminals 1 and 2.
Using an ohmmeter, check that there is continuity
between terminals 3 and 5.
If operation is not as specified, replace the EFI main
relay.
REINSTALL EFI MAIN RELAY
