Toyota 3S-GE Repair Manual page 240

ENGINE -— EFI SYSTEM
_-\\ )
Mu,
$1
/ / \ /
so/1
L
\ Q
blot'
< 'Q0 1
se
Gauge Connector ®
Co
'\st
( D UI - P 00

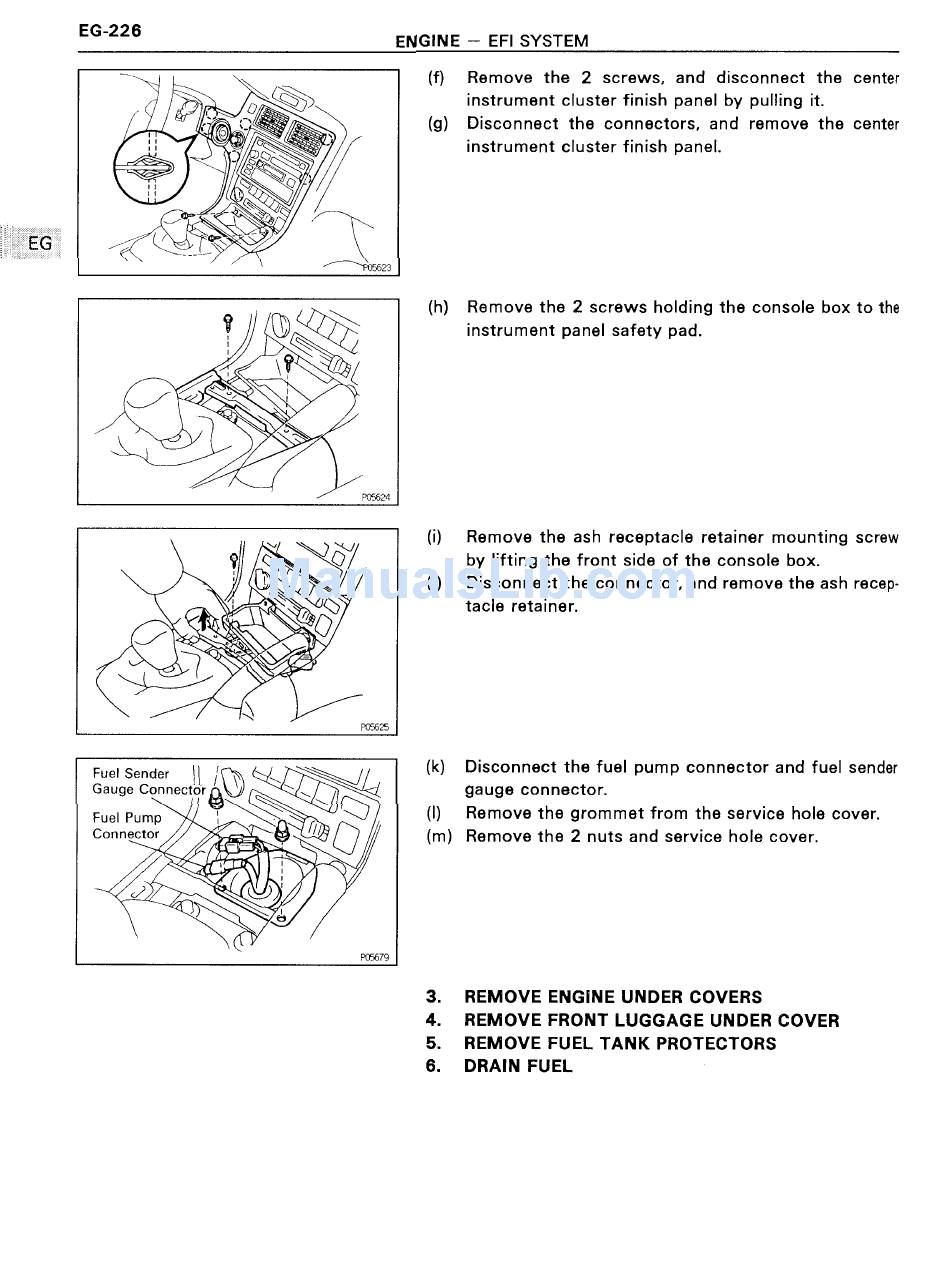

Remove the 2 screws, and disconnect the center
instrument cluster finish panel by pulling it.
Disconnect the connectors, and remove the center
instrument cluster finish panel.
Remove the 2 screws holding the console box to the
instrument panel safety pad.
Remove the ash receptacle retainer mounting screw
by lifting the front side of the console box.
Disconnect the connector, and remove the ash recep-
tacle retainer.
Disconnect the fuel pump connector and fuel sender
gauge connector.
Remove the grommet from the service hole cover.
Remove the 2 nuts and service hole cover.
REMOVE ENGINE UNDER COVERS
REMOVE FRONT LUGGAGE UNDER COVER
REMOVE FUEL TANK PROTECTORS
DRAIN FUEL
