CH-11

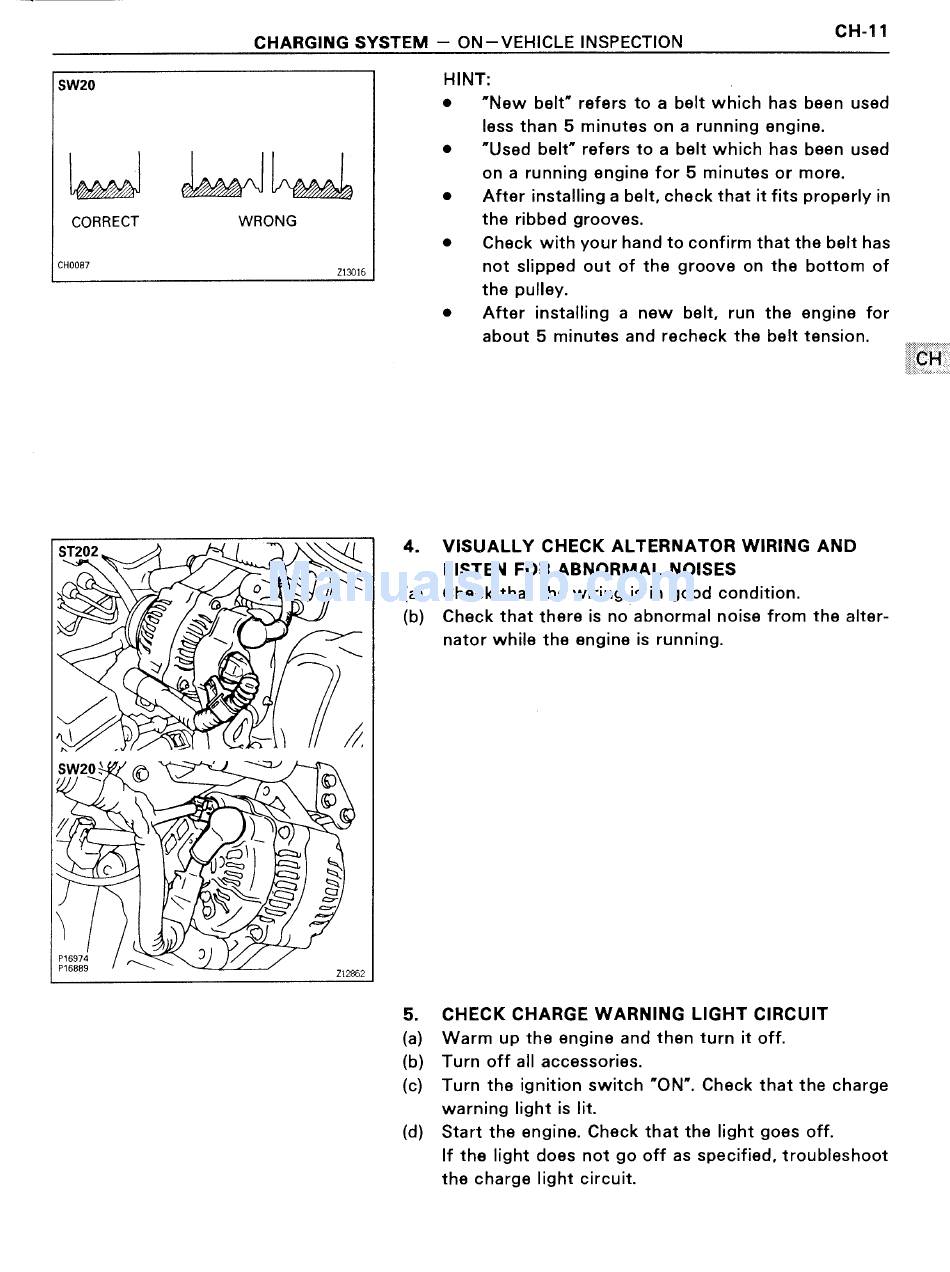

CHARGING SYSTEM — ON—VEHlCLE INSPECTION
SW20
CORRECT WRONG
CH0087
Z13016
ll]
kwC
/ \//7(!i I _1\
"7(70i i i
' ( I B M/ T .
. 1 /.
co T" @
/ 1 ii
fie' Q: ) )
\ _.
2:22;: \ Q I
5.
(a)
(b)
(0)
(d)
sT W' % 4.
I f - 3
4' . \
HINT: .
0 "New belt' refers to a belt which has been used
less than 5 minutes on a running engine.
0 "Used belt' refers to a belt which has been used
on a running engine for 5 minutes or more.
0 After installing a belt, check that it fits properly in
the ribbed grooves.
0 Check with your hand to confirm that the belt has
not slipped out of the groove on the bottom of
the pulley.
0 After installing a new belt, run the engine for
about 5 minutes and recheck the belt tension.
VISUALLY CHECK ALTERNATOR WIRING AND
LISTEN FOR ABNORMAL NOISES
Check that the wiring is in good condition.
Check that there is no abnormal noise from the alter-
nator while the engine is running.
CHECK CHARGE WARNING LIGHT CIRCUIT
Warm up the engine and then turn it off.
Turn off all accessories.
Turn the ignition switch "ON". Check that the charge
warning light is lit.
Start the engine. Check that the light goes off.
If the light does not go off as specified, troubleshoot
the charge light circuit.
