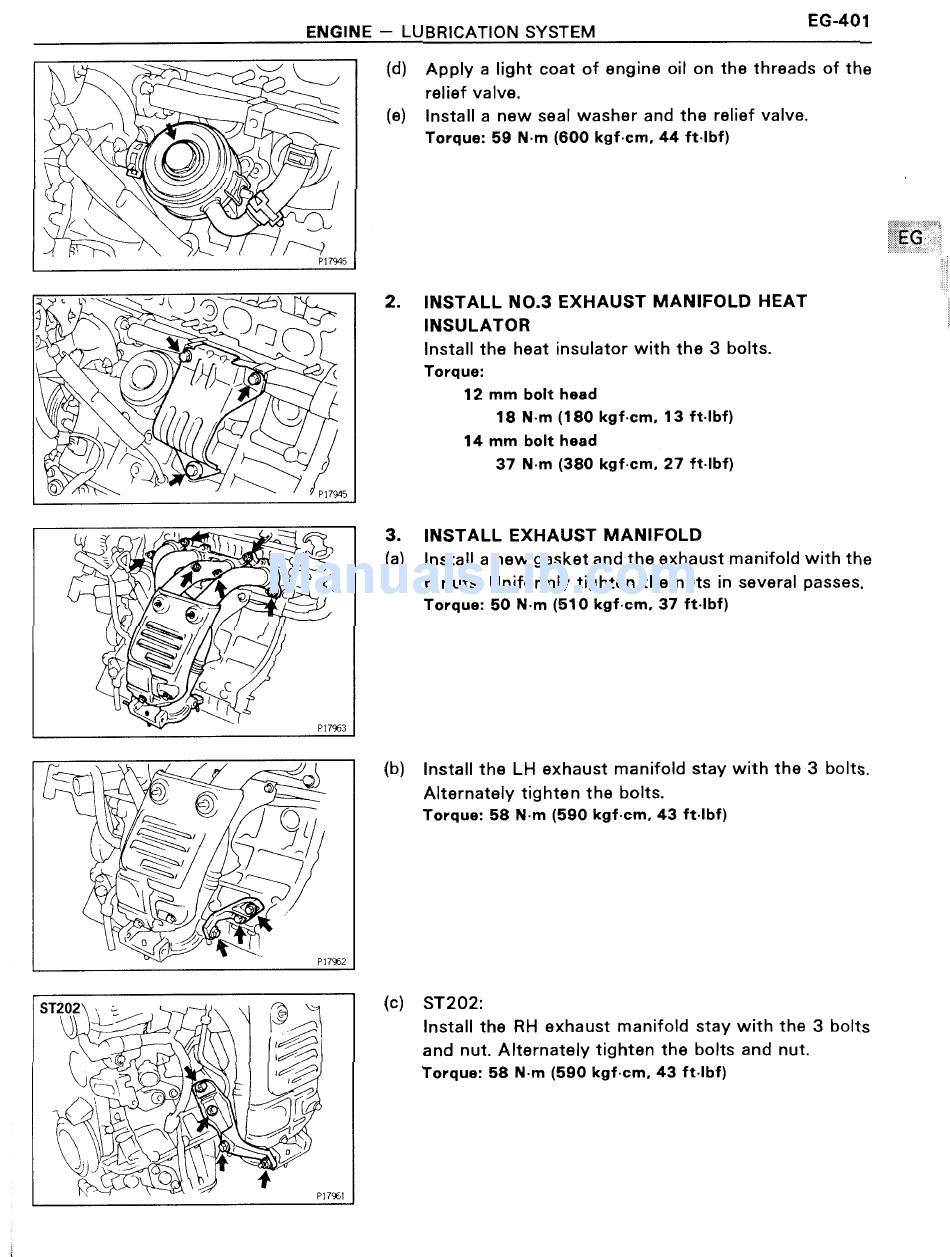

ENGINE — LUBRICATION SYSTEM
EG-401
I
.\Q
\
4.? .0'
ear
€f " % §@' g 4' 4 <
' * ' @ ' ? / r
\/
/\2
P179116
~ .1
§
;-
Y1 Qe
(d) Apply a light coat of engine oil on the threads of the
relief valve.
(e) lnstall a new seal washer and the relief valve.
Torque: 59 N-m (600 kgf-cm. 44 ft-Ibf)
2. INSTALL NO.3 EXHAUST MANIFOLD HEAT
INSULATOR
lnstall the heat insulator with the 3 bolts.
Torque:
12 mm bolt head
$6' 18 N-m (180 kgf-cm, 13 ft-Ibf)
5)
is ~r-»» K
W 5
§;%;é§
I" r e
\
§-
;
Q fiéii
,
i s/it
/5.: '5
we/\7.
14 mm bolt head
37 N-m (380 kgf-cm, 27 ft-Ibf)
- 3. INSTALL EXHAUST MANIFOLD
r'\
\
L
Pl7%3
\
€7
5%
I
. , 7,.~:_
/s5!@»>> .
iiss
sT2o§2 sj/
Q
,
if/A \
4 ")-
\ \
n';'7¢
rI\ts§
I is
->4 '
I.U _" — T
~ X§*t \ § \ § \ \ €
Pl7%l
(a) lnstall a new gasket and the exhaust manifold with the
6 nuts. Uniformly tighten the nuts in several passes.
Torque: 50 N-m (510 kgf-cm. 37 ft-Ibf)
lnstall the LH exhaust manifold stay with the 3 bolts.
Alternately tighten the bolts.
Torque: 58 N-m (590 kgf-cm. 43 ft-Ibf)
(c) ST202:
lnstall the RH exhaust manifold stay with the 3 bolts
and nut. Alternately tighten the bolts and nut.
Torque: 58 N-m (590 kgf-cm. 43 ft-Ibf)
