ENGINE — COOLING SYSTEM
I
/. V M"-'fig
0'
\\l
I
Engine
" "Drain Plug
A l
\c/\
i
Radiator Pipe
Drain Plug
P168Z5
P05680 /
PO4105 213060
E6156 04

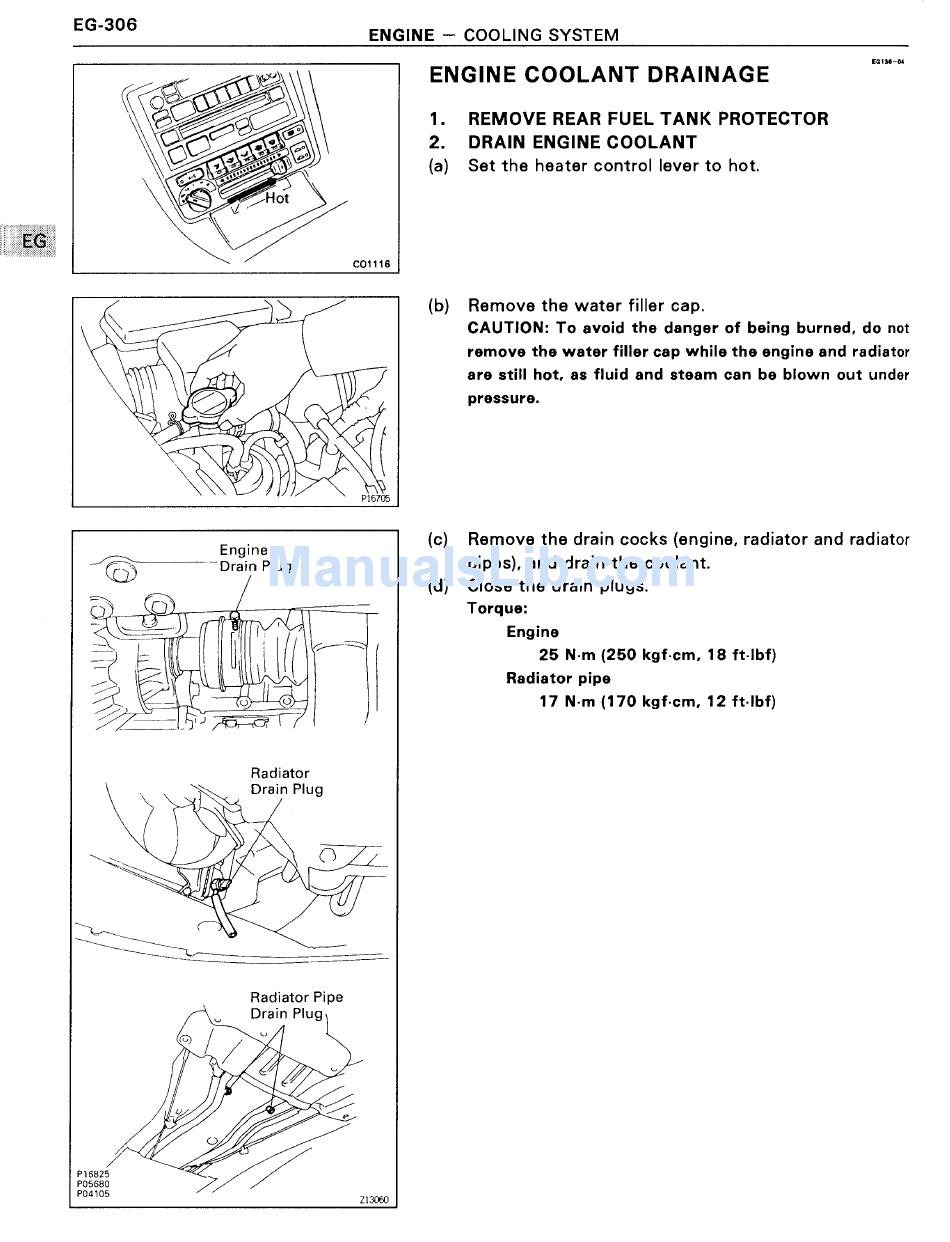

< @ ENGINE COOLANT DRAINAGE
% 1. REMOVE REAR FUEL TANK PROTECTOR
G@¢ge9\ 2. DRAIN ENGINE COOLANT
\ (a) Set the heater control lever to hot.
Remove the water filler cap.
CAUTION: To avoid the danger of being burned, do not
remove the water filler cap while the engine and radiator
are still hot. as fluid and steam can be blown out under
pressure.
Remove the drain cocks (engine, radiator and radiator
pipes), and drain the coolant.
Close the drain plugs.
Torque:
Engine
25 N-m (250 kgf-cm. 18 ft-Ibf)
Radiator pipe
17 N-m (170 kgf-cm. 12 ft-Ibf)
