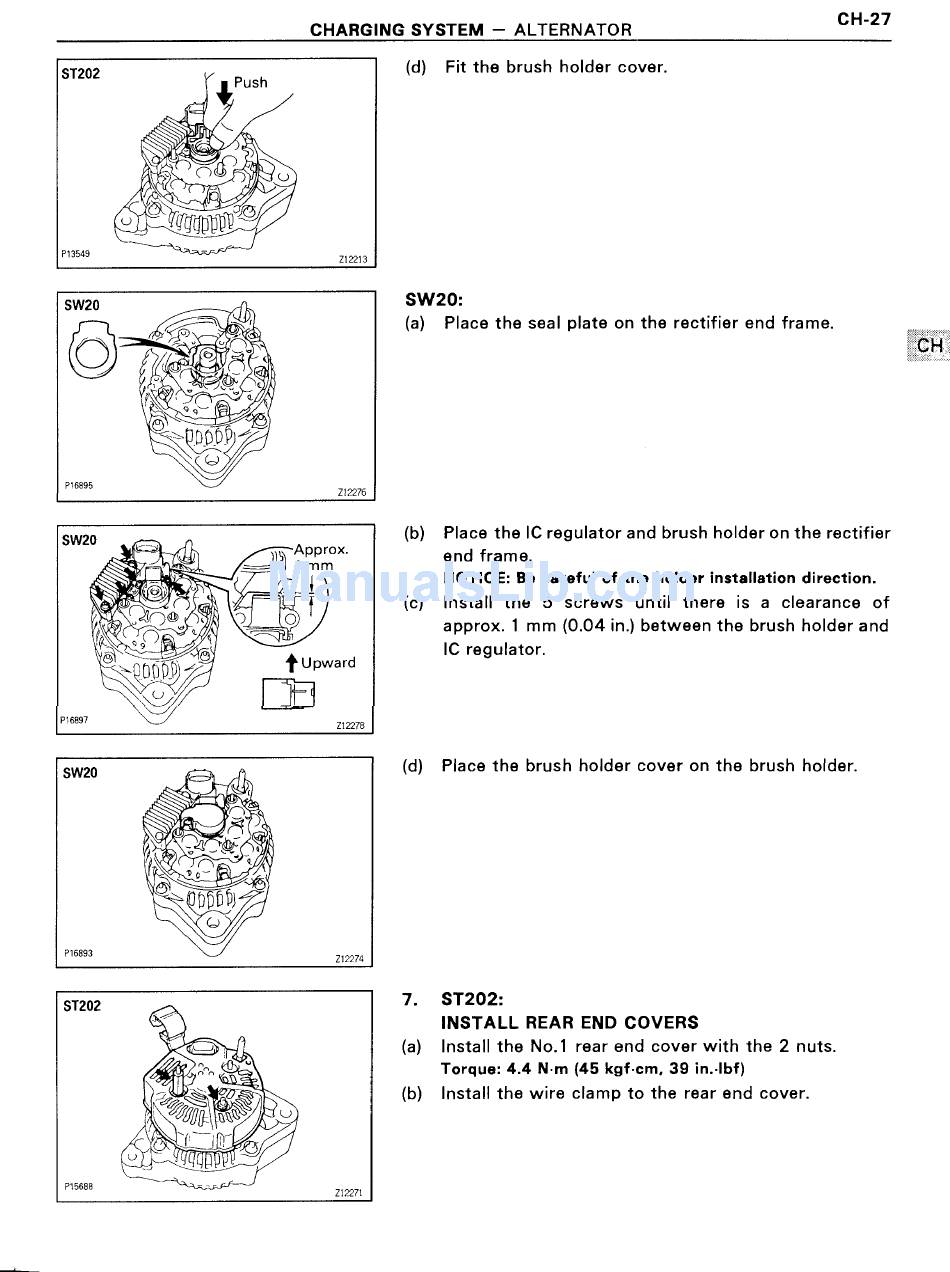

CHARGING SYSTEM - ALTERNATOR CH'27
ST202 (d) Fit the brush holder cover.
Push
Q»
Q'f€ L
Mn
7frq"ci1;m
_ U (a) Place the seal plate on the rectifier end frame.
9
'5. CH
Pl6895 212276
SW20 (b) Place the IC regulator and brush holder on the rectifier
1 l;f;'X' end frame. -
- NOTICE: Be careful of the holder installation direction.
V ' . _ (c) lnstall the 5 screws until there is a clearance of
'4'7@ \ I approx. 1 mm (0.04 in.) between the brush holder and
IC regulator
4/
. a \ . 4 t ~ \ -
L
(fa
. i @ , _
i/ .
' /Vré f Upward
Sf" [E
\£'/
Pl6897 ' 212278
swzo (d) Place the brush holder cover on the brush holder.
il
as °> '*'("i@
03§~\\{1> /Q
S U
H6893 212274
7. ST202:
ST202
INSTALL REAR END) COVERS
/ 4% (a) lnstall the No.1 rear end cover with the 2 nuts.
:~. <'» Torque: 4.4 N-m (45 kgf-cm. 39 in.-lbf)
"/II 7 \\ :— T
\yrJ§\ Q i (b) Install the wire clamp to the rear end cover.
