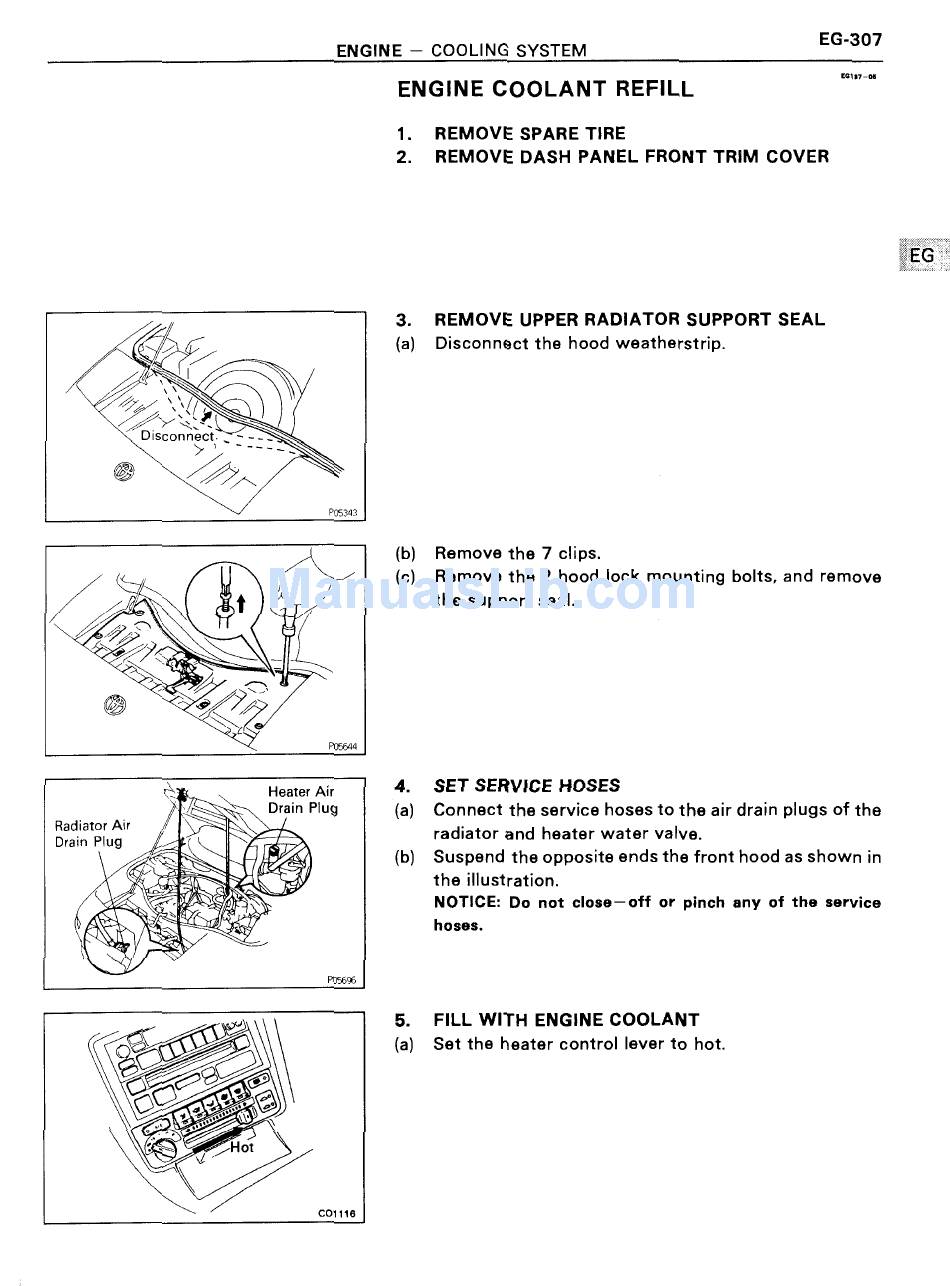

ENGINE — COOLING SYSTEM EG-307
ENGINE COOLANT REFILL
1. REMOVE SPARE TIRE
2. REMOVE DASH PANEL FRONT TRIM COVER
3. REMOVE UPPER RADIATOR SUPPORT SEAL
/ / (a) Disconnect the hood weatherstrip.
@
POS343
7-
>\
(b) Remove the 7 clips.
' % (c) Remove the 2 hood lock mounting bolts, and remove
// '\ the support seal.
W
/ <7.
~»%\>:/71>
Q Heme, A), 4. SET SERVICE HOSES
l _ \\ Drain Plug (a) Connect the service hoses to the air drain plugs of the
Radmor A" radiator and heater water valve.
(b) Suspend the opposite ends the front hood as shown in
the illustration.
f. D \ r NOTICE: Do not close—off or pinch any of the service
1
W' - ' a l l
Drain Plug ,4
hoses.
P0563')
5. FILL WITH ENGINE COOLANT
K (a) Set the heater control lever to hot.
