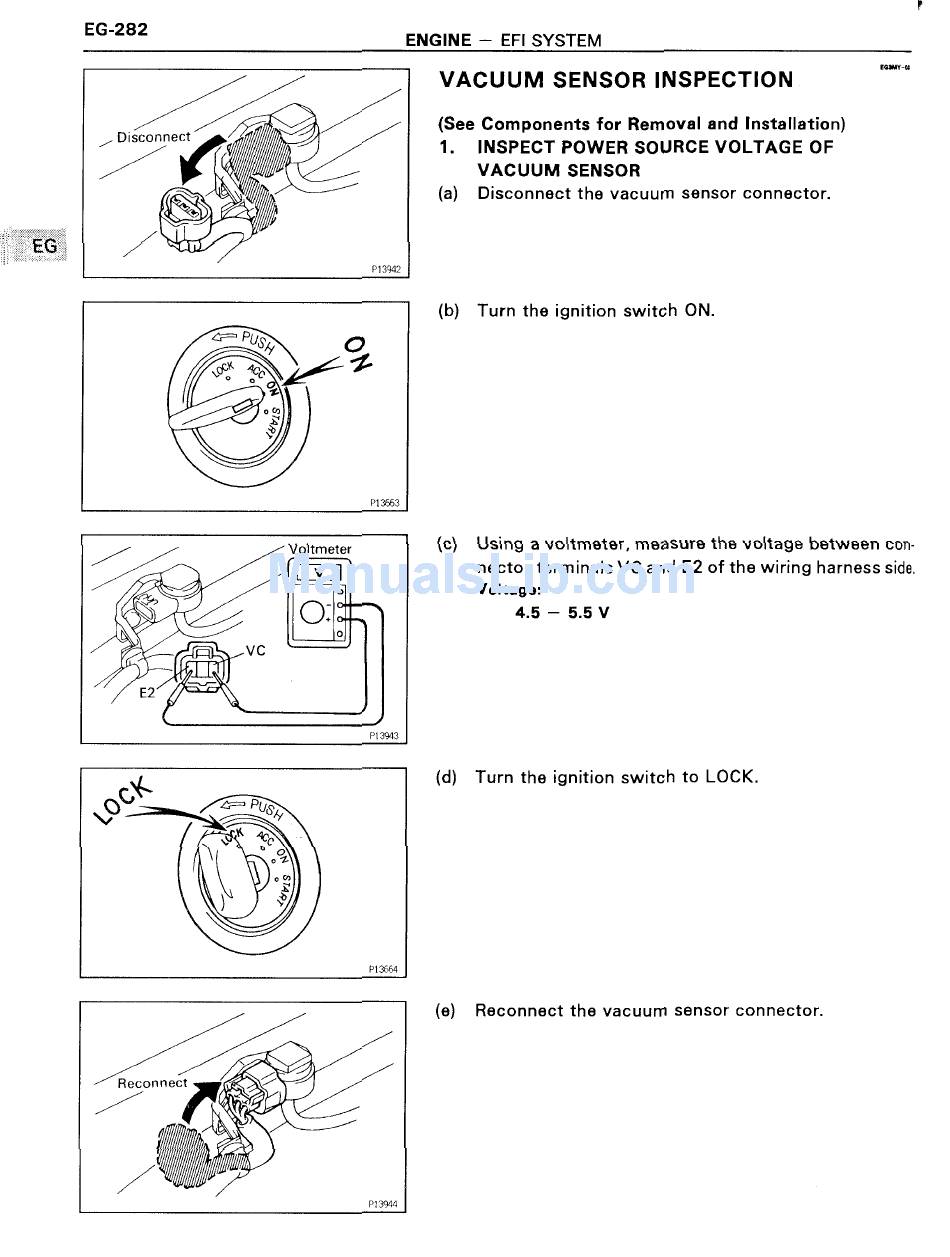

VACUUM SENSOR INSPECTION
(See Components for Removal and Installation)
1. INSPECT POWER SOURCE VOLTAGE OF
VACUUM SENSOR
(a) Disconnect the vacuum sensor connector.
<'.== PUS/9
§\
"O
xélf 400 '\
0
PI3663
(b) Turn the ignition switch ON.
. Ver
g
2 /\.
Pl3Q43
nector terminals VC and E2 of the wiring harness side
Voltage:
4.5 — 5.5 V
OCXT F' pl/8
\' N I9
\\ 400 .
%
Q' Q
_(¢' b ' 1 l § So
P13664
R8COt'meCt g
// I/'/I
\..
P139411
(d) Turn the ignition switch to LOCK.
(e) Reconnect the vacuum sensor connector.
(c) Using a voltmeter, measure the voltage between con-
