Toyota 3S-GE Repair Manual page 238

EG'224 ENGINE - EFI SYSTEM
'0 '
4:
it'?
//% '@0 1
P056225
Ohmmeter
,
\:'./ la
\ - ea'
4/ 41
Q
\
@<4_1
* 0] Z
i.1
P0597/1
-Q,
5.
N
/ /
I i " "@"i
@ n
B attery
P05973
ta
~92,
I
e~/ A /Pm
EGIWO BI

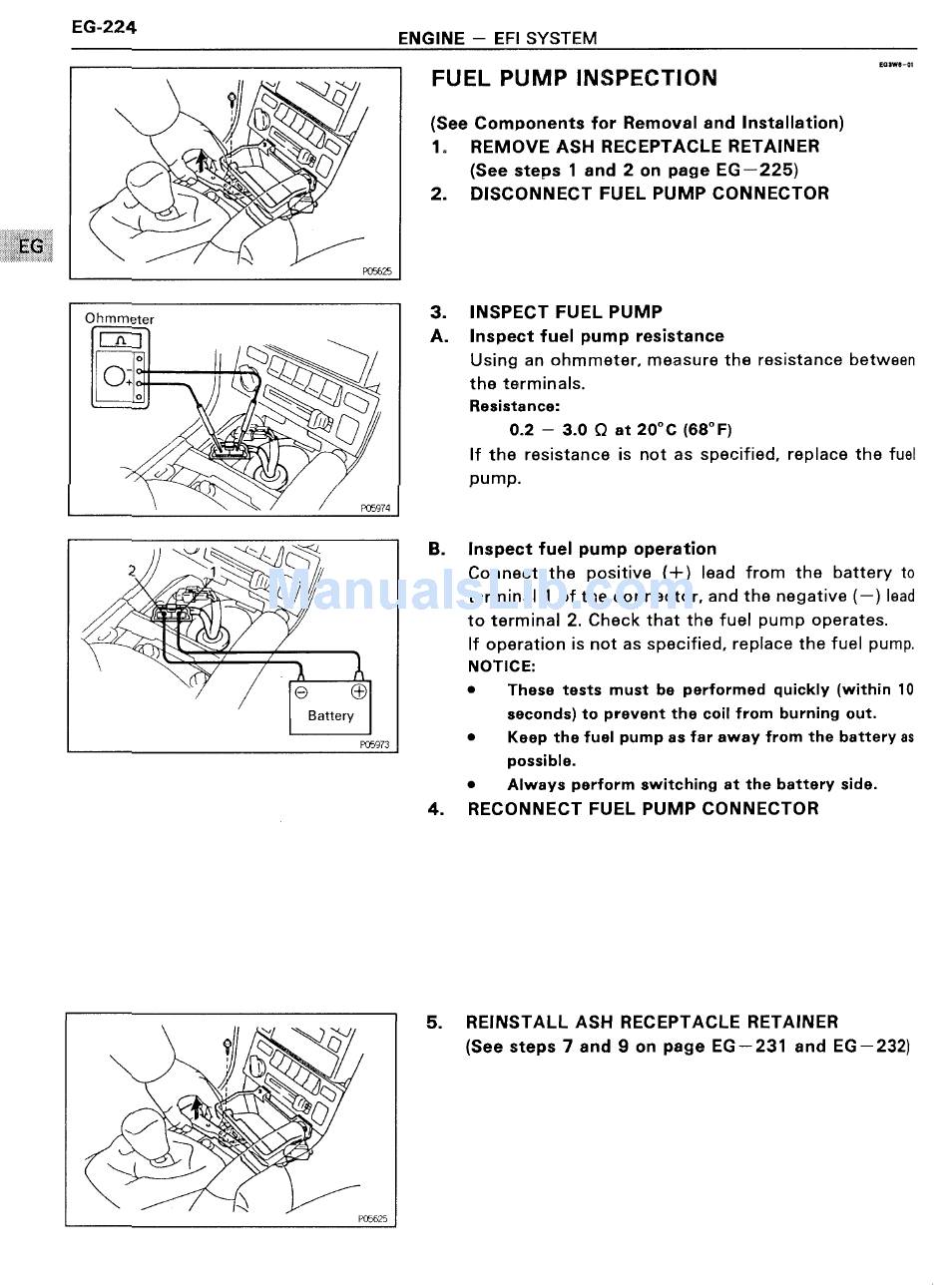

FUEL PUMP INSPECTION e
(See Components for Removal and Installation)
1
2.
3
A.
4.
REMOVE ASH RECEPTACLE RETAINER
(See steps 1 and 2 on page EG—225)
DISCONNECT FUEL PUMP CONNECTOR
INSPECT FUEL PUMP
Inspect fuel pump resistance
Using an ohmmeter, measure the resistance between
the terminals.
Resistance:
0.2 — 3.0 Q at 20°C (68° F)
If the resistance is not as specified, replace the fuel
pump.
Inspect fuel pump operation
Connect the positive (+) lead from the battery to
terminal 1 of the connector, and the negative (—) lead
to terminal 2. Check that the fuel pump operates.
If operation is not as specified, replace the fuel pump.
NOTICE:
I These tests must be performed quickly (within 10
seconds) to prevent thecoil from burning out.
I Keep the fuel pump as far away from the battery as
possible.
O Always perform switching at the battery side.
RECONNECT FUEL PUMP CONNECTOR
\7 \/ 5. REINSTALL ASH RECEPTACLE RETAINER
/ (See steps 7 and 9 on page EG—231 and EG—232)
