Toyota 3S-GE Repair Manual page 104

EG-90
ENGINE — ENGINE MECHANICAL
C0c@l¢
WC, "st
i i s te»
as"
it.
'
Q,
ccfi?
I"
QJV
c_)q,ba°' " U O
"0 »
/f\\
P16727
(>0 °*"<-Q (J
\\
$4
o
C>
L)
es;
°%~
\ Q _
'Q/I7 /Mg: 6/
W
. . %\
/My
C0
C
(J
Q? C
/)6'
0 I
we? *>° 31>.
/ \\>%7) O § L'
\es ~"s»
\'\/ / /$3
4
3%
7
IOIV! 01

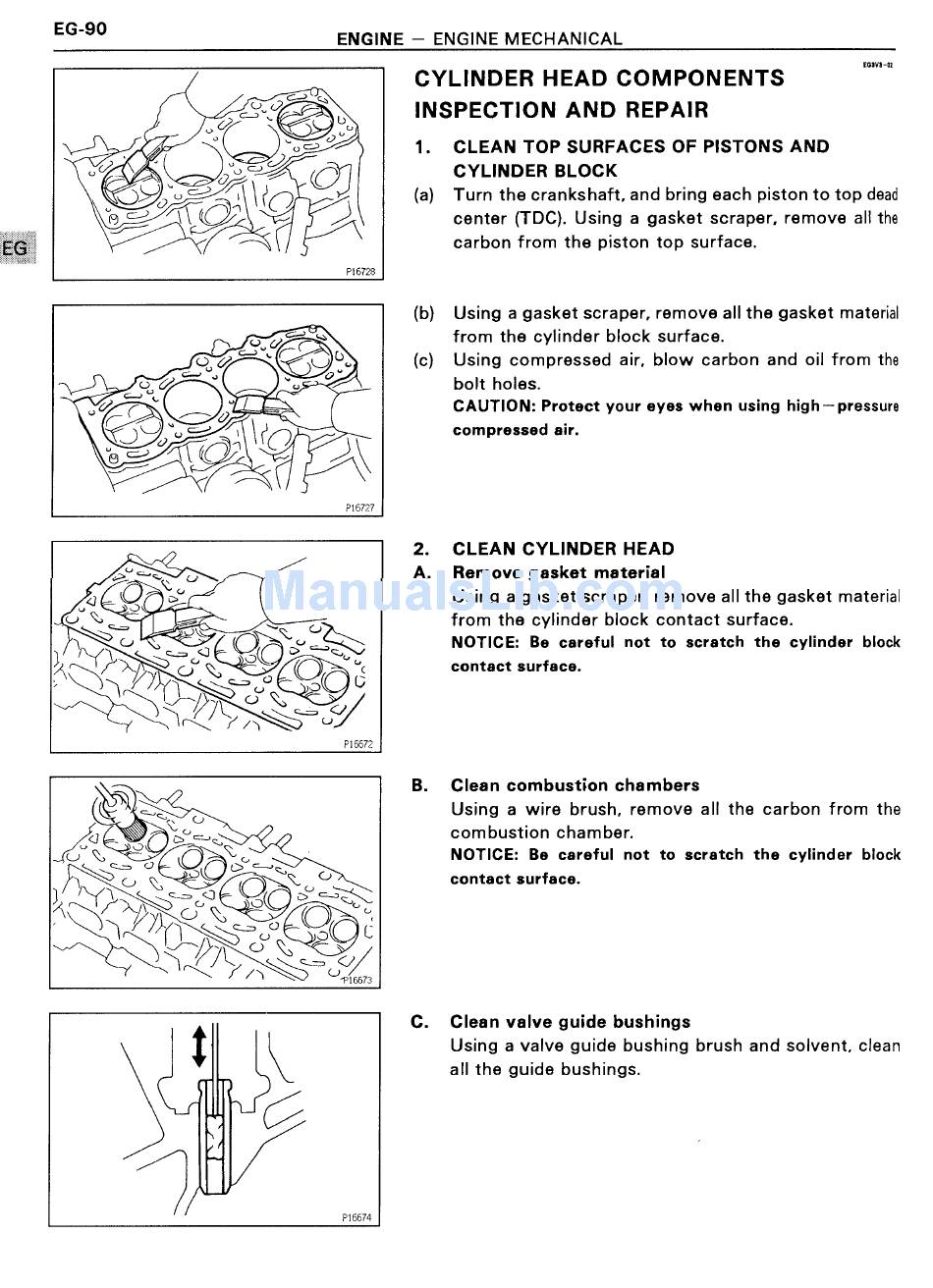

CYLINDER HEAD COMPONENTS
INSPECTION AND REPAIR
CLEAN TOP SURFACES OF PISTONS AND
CYLINDER BLOCK
Turn the crankshaft, and bring each piston to top dead
center (TDC). Using a gasket scraper, remove all the
carbon from the piston top surface.
Using a gasket scraper, remove all the gasket material
from the cylinder block surface.
Using compressed air, blow carbon and oil from the
bolt holes.
CAUTION: Protect your eyes when using high—pressure
compressed air.
CLEAN CYLINDER HEAD
Remove gasket material
Using a gasket scraper, remove all the gasket material
from the cylinder block contact surface.
NOTICE: Be careful not to scratch the cylinder block
contact surface.
Clean combustion chambers
Using a wire brush, remove all the carbon from the
combustion chamber.
NOTICE: Be careful not to scratch the cylinder block
contact surface.
Clean valve guide bushings
Using a valve guide bushing brush and solvent, clean
all the guide bushings.
