Toyota 3S-GE Repair Manual page 367

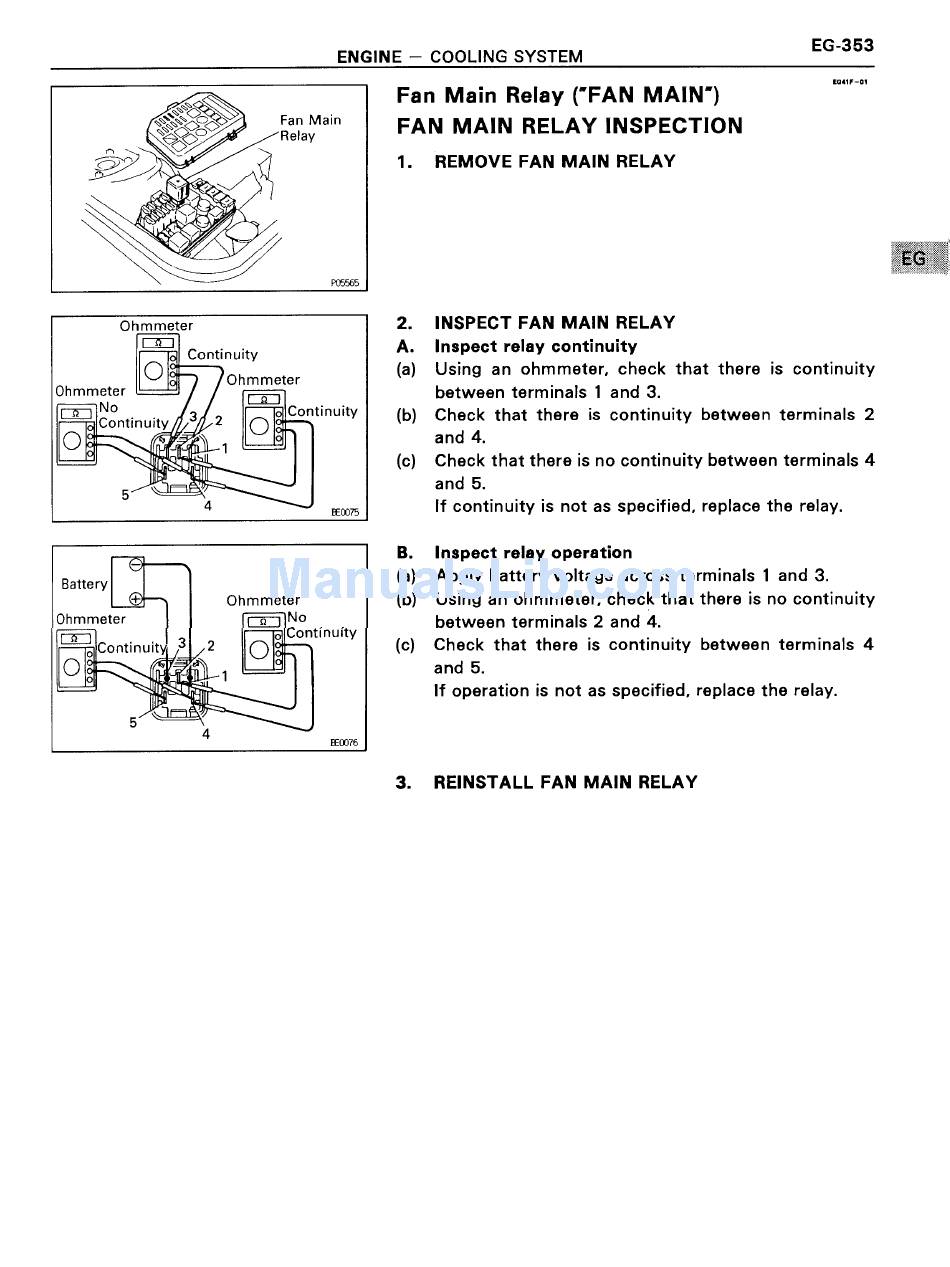

EG-353
ENGINE — COOLING SYSTEM
W
IIIII F-G1
Fan Main Relay ("FAN MAIN')
;i;a$"a'" FAN MAIN RELAY INSPECTION
.. ~ ~ <_>
\.-('XE Q7 1. REMOVE FAN MAIN RELAY
/
Ohmmeter
. Continuity
Ohmmeter mg] Ohmmeter
ggntinuity / 2 c°mlnulty
E \ Q_'|ll 1
s F
|li=: '~'!l:lll
-_a W
5 23
4
(-1-;
EE0075
9'
Battery
9 Ohmmeter
Ohmmeter N0 _ _
nul
_ _ 3 Contl ty
mg Contlnulty 2 E?
cl \_ -I', e
I T' II 1
ul\\|l|£"Q.I|.':T"
III' I §
ii i
5
4
moors
INSPECT FAN MAIN RELAY
Inspect relay continuity
Using an ohmmeter, check that there is continuity
between terminals 1 and 3.
Check that there is continuity between terminals 2
and 4.
Check that there is no continuity between terminals 4
and 5.
If continuity is not as specified, replace the relay.
Inspect relay operation
Apply battery voltage across terminals 1 and 3.
Using an ohmmeter, check that there is no continuity
between terminals 2 and 4.
Check that there is continuity between terminals 4
and 5.
If operation is not as specified, replace the relay.
REINSTALL FAN MAIN RELAY
