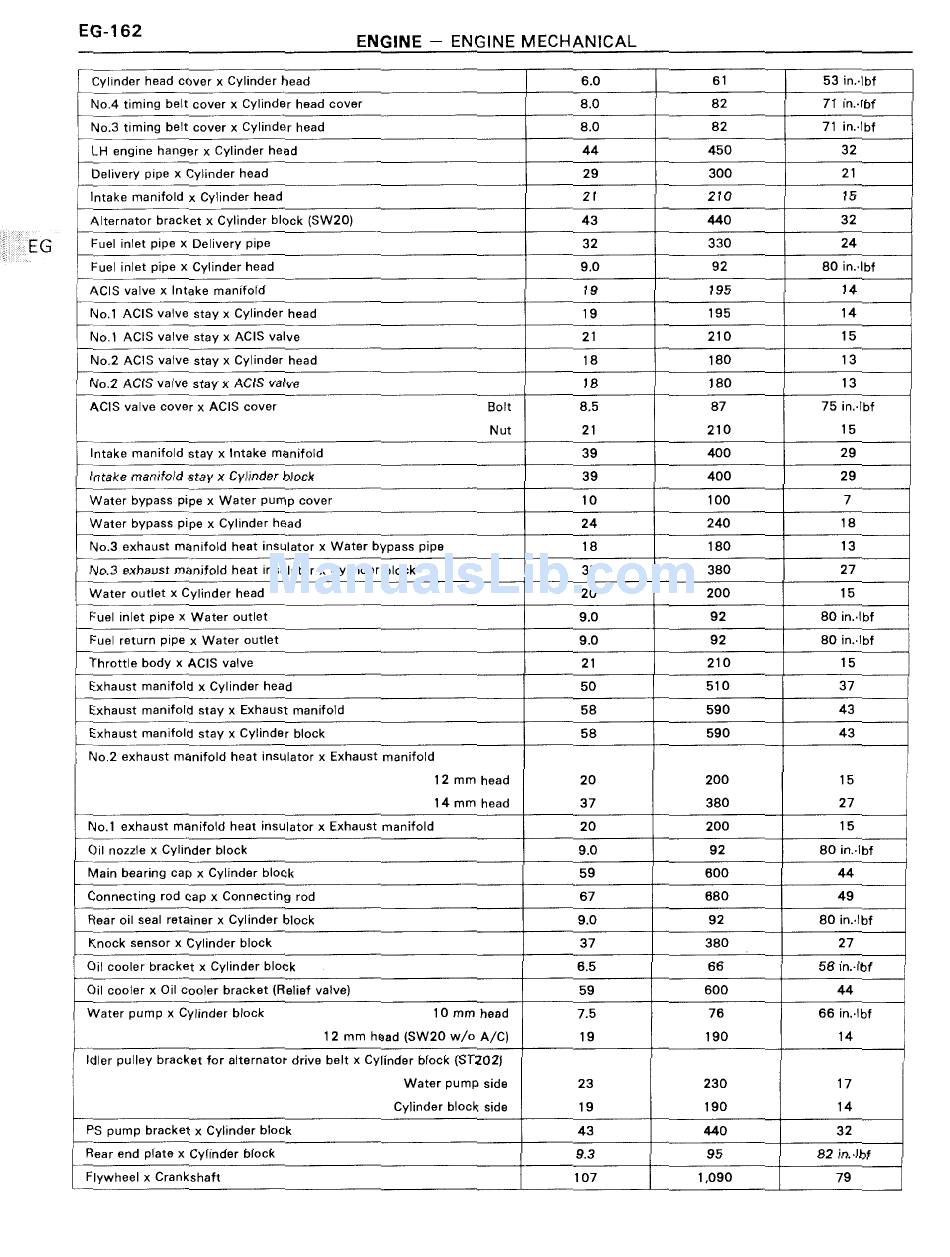

Toyota 3S-GE Repair Manual page 176

EG-162
ENGINE — ENGINE MECHANICAL
Cylinder head cover x Cylinder head 6.0 61 53 in.-lbf
No.4 timing belt cover x Cylinder head cover 8.0 82 71 in.-lbf
No.3 timing belt cover x Cylinder head 8.0 82 71 in.~lbf
LH engine hanger x Cylinder head
44 450 32
Delivery pipe x Cylinder head
29 300 21
lntake manifold x Cylinder head
21 210 15
Alternator bracket x Cylinder block (SW20)
43 440 32
Fuel inlet pipe x Delivery pipe
32
330
24
Fuel inlet pipe x Cylinder head 9.0
92
80 in.-lbf
ACIS valve x Intake manifold 19 195 14
No.1 ACIS valve stay x Cylinder head 19 195 14
No.1 ACIS valve stay X ACIS valve
21 210 15
No.2 ACIS valve stay x Cylinder head 18 180 13
No.2 ACIS valve stay x ACIS valve 18 180 13
ACIS valve cover x ACIS cover Bolt
Nut
8.5
21
87
210
75 in.-lbf
15
lntake manifold stay x lntake manifold 39 400 29
lntake manifold stay X Cylinder block 39 400 29
Water bypass pipe x Water pump cover 10 100 7
Water bypass pipe x Cylinder head 24 240 18
No.3 exhaust manifold heat insulator x Water bypass pipe 18 180 13
No.3 exhaust manifold heat insulator x Cylinder block 37 380 27
Water outlet x Cylinder head 20 200 15
Fuel inlet pipe X Water outlet 9.0
92 80 in.-lbf
Fuel return pipe x Water outlet 9.0 92 80 in.-lbf
Throttle body x ACIS valve
21 210 15
Exhaust manifold x Cylinder head.
50
510
37
Exhaust manifold stay x Exhaust manifold
58 590
43
Exhaust manifold stay x Cylinder block 58 590 43
No.2 exhaust manifold heat insulator x Exhaust manifold
12 mm head
14 mm head
20
37
200
380
15
27
No.1 exhaust manifold heat insulator x Exhaust manifold
20 200 15
Oil nozzle x Cylinder block
9.0 92 80 in.-lbf
Main bearing cap x Cylinder block
59 600 44
Connecting rod cap x Connecting rod 67 680 49
Rear oil seal retainer x Cylinder block 9.0 92 80 in.-lbf
Knock sensor x Cylinder block 37 380
27
Oil cooler bracket x Cylinder block .
6.5 66 58 in.-lbf
Oil cooler x Oil cooler bracket (Relief valve) 59 600
44
Water pump x Cylinder block 10 mm heed
12 mm head (SW20 w/o A/C)
7.5
19
76
190
66 in.-lbf
14
Idler pulley bracket for alternator drive belt x Cylinder block (ST202)
Water pump side
Cylinder block side
23
19
230
190
17
14
PS pump bracket x Cylinder block
43 440
32
Rear end plate x Cylinder block
9.3 95 82 in.~lbf
Flywheel x Crankshaft
107 1.090 79
