Toyota 3S-GE Repair Manual page 32

E648 ENGINE
- ENGINE MECHANICAL
\
<l
f//'NI/Q
V
) . 3:
'\
15909
ORRECT
WRONG
$2
%///V
P16910
\I X"
\ \_Q§\§'
f O
* ~ : » . a § @ '
é
"~
Q.
'er.
Q.
\-\
PI6989
stzoz
I
0*
g% 6'
/Qt
fed
$
4
~
'v '
\<\I I P1699l
IOIIY -01

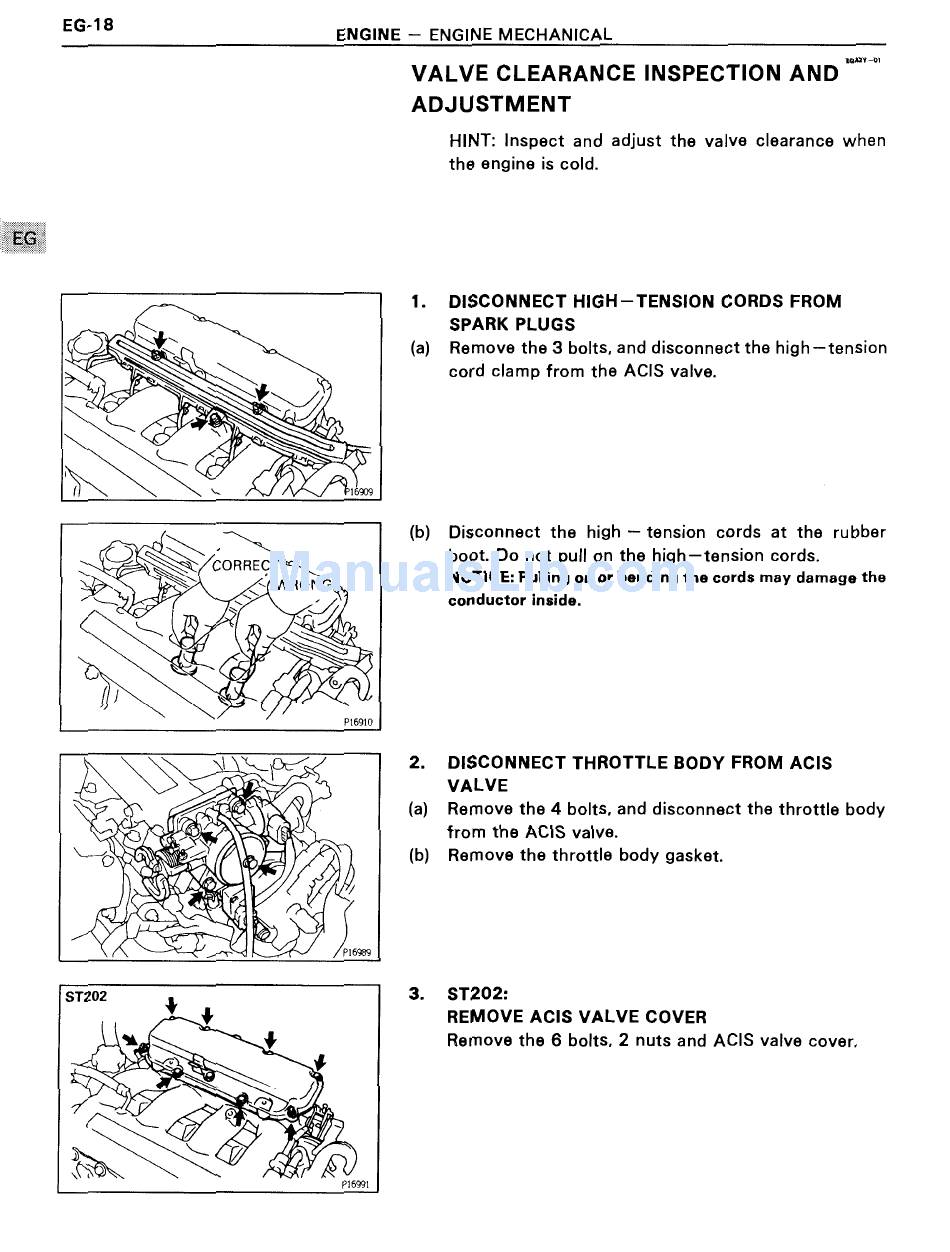

VALVE CLEARANCE INSPECTION AND
ADJUSTMENT
HINT: Inspect and adjust the valve clearance when
the engine is cold.
DISCONNECT HIGH—TENSION CORDS FROM
SPARK PLUGS
Remove the 3 bolts, and disconnect the high—tension
cord clamp from the ACIS valve.
1.
la)
lb)
Disconnect the high - tension cords at the rubber
boot. D0 not pull on the high—tension cords.
NOTICE: Pulling on or bending the cords may damage the
conductor inside.
2. DISCONNECT THROTTLE BODY FROM ACIS
VALVE
(a) Remove the 4 bolts, and disconnect the throttle body
from the ACIS valve.
lb)
Remove the throttle body gasket.
3. ST202:
REMOVE ACIS VALVE COVER
Remove the 6 bolts. 2 nuts and ACIS valve cover.
