Toyota 3S-GE Repair Manual page 454

ST-14

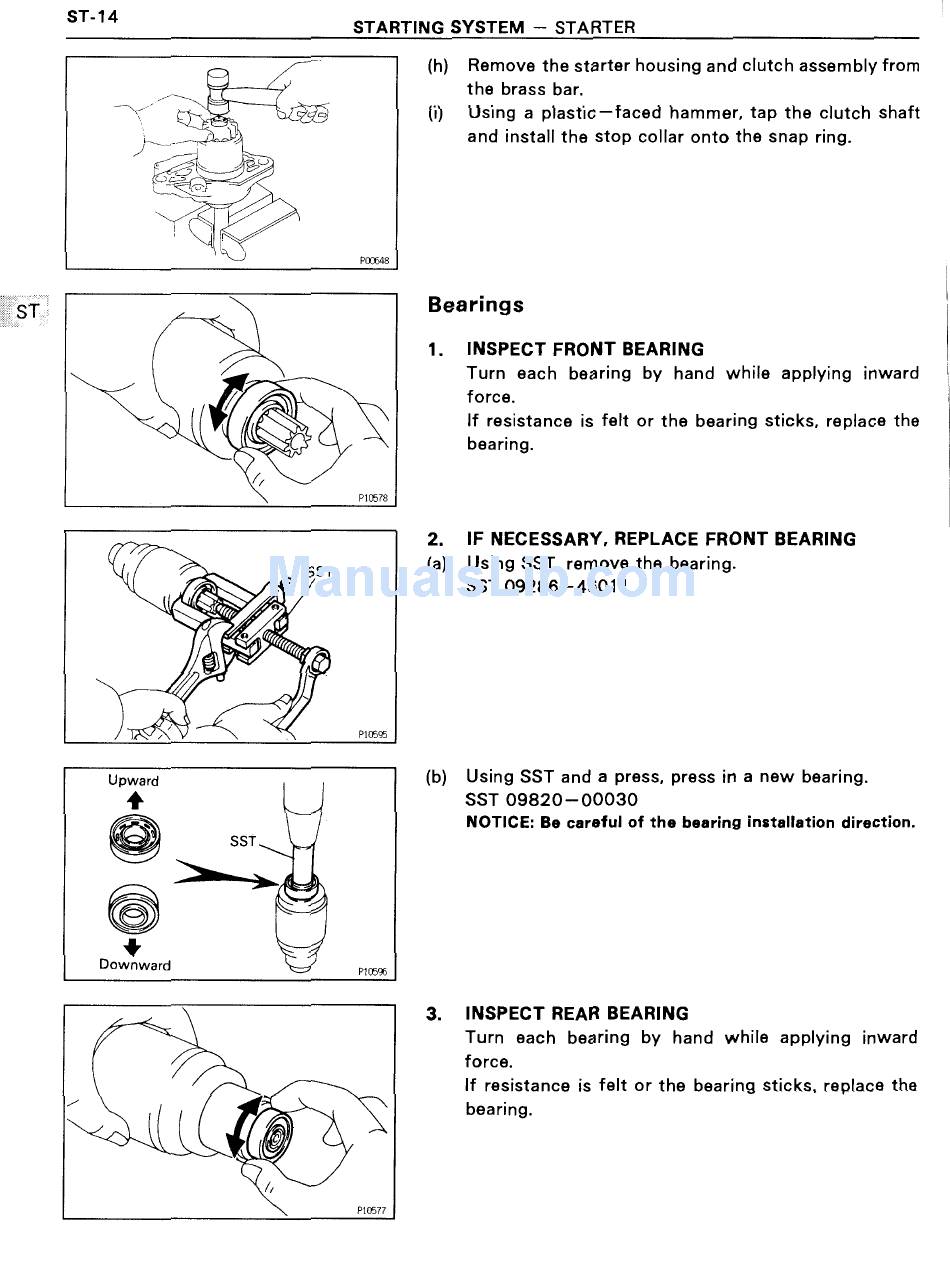

STARTING SYSTEM — STARTER
'\/-' '
\
\
\/_.
{$4 I
sg
Q
Q
1.»
/T
P0(f>48
1
/,
Pl0'578
/
X
s '3'
' . ff I A
I
1I,,,,/If/,,,,'
S'
G
/
0"\ I
V
Downward
SST
l
P'l05%
/
E
P1057?
(h) Remove the starter housing and clutch assembly from
the brass bar.
~51-5 (i) Using a plastic—faced hammer, tap the clutch shaft
-. and install the stop collar onto the snap ring.
Bearings
1. INSPECT FRONT BEARING
Turn each bearing by hand while applying inward
force.
If resistance is felt or the bearing sticks, replace the
beanng.
2. IF NECESSARY, REPLACE FRONT BEARING
Using SST. remove the bearing.
(a)
SST 09286-46011
SST 09820-00030
NOTICE: Be careful of the bearing installation direction.
' / P105951
Upwafd (b) Using SST and a press, press in a new bearing.
t
3. INSPECT REAR BEARING
Turn each bearing by hand while applying inward
force.
If resistance is felt or the bearing sticks, replace the
beanng.
