Toyota 3S-GE Repair Manual page 277

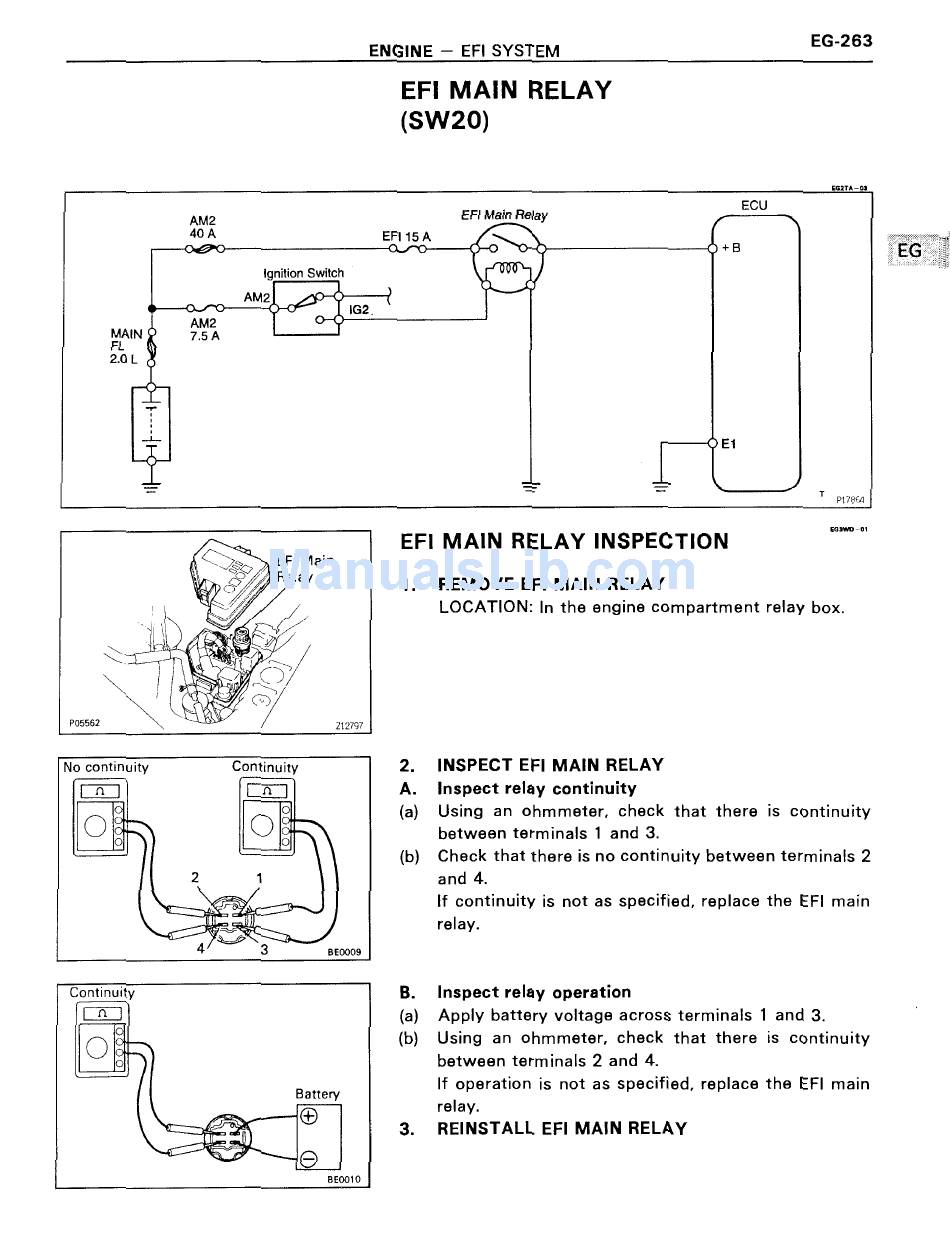

ENGINE — EFI SYSTEM EG'263
EFI MAIN RELAY
(SW20)
Eli2TA—OI
AM2
40 A
ECU
EFI Main Relay /—-4
MAIN '
FL \\
2.0L ,
--1
_1_
CI
0%
Ignition Switch
7.5 A
0 0 I o ). |G2
AM2 ° .
EFl15A
0../"O O 0 0 O
Ill
.0.
FJE1
'_:— tr Q
. +_B EEC; v
T P178F4
\1-
\ l
\
l
__ I \\ \_
I
fee'!
I r
\ ¢ ' > / o i " .
\¢\ »\
N Relay
.\
\
' EFI Main
212797
EFI MAIN RELAY INSPECTION
REMOVE EFI MAIN RELAY
LOCATION: In the engine compartment relay box.
1.
No continuity
Continuity
"ll Q!
2 1
,_ .\_ t
IT! : Z17
,' \F' "-1
4
(Q
BEOOOS
INSPECT EFI MAIN RELAY
Inspect relay continuity
Using an ohmmeter, check that there is continuity
between terminals 1 and 3.
Check that there is no continuity between terminals 2
and 4.
If continuity is not as specified, replace the EFI main
relay.
2.
A.
(8)
(bl
Continuity
Battery
J--I
t? (9
BEOO1O
B.
la)
lb)
Inspect relay operation
Apply battery voltage across terminals 1 and 3.
Using an ohmmeter, check that there is continuity
between terminals 2 and 4.
If operation is not as specified, replace the EFI main
relay.
~ 3. REINSTALL EFI MAIN RELAY
