ENGINE — LUBRICATION SYSTEM EG'387
fieeili ' b l
Z5/A /.;¥::...i
l
y
2'
l \ 1 : f < 5
Pl69'33
I
4- \ <-
TT \
li
+ +
; ' % ' I \ 1 ~l l / < -
I
I jg
/———4'
3.. C
ta
1' ,~ K 0 0Q O/—
~'
I v'dkI Pl
7952
_ , / lb)
ea
@ C I\
/$9
SST
t/0" "
& \
'Q
SST
P1795}
I723
. ff
/in 4
O O-
4}.
Pl 7955
7.
la)
8.
(8)
9.
O ; ' a '
' I7
Wr)<(a < 0 lfi
DC \ ' Q2'-
,W+.°+ at L "
\\o_r .
\ \§/l"l \ __
I" =
. . 6 '
we Gl
° "@ __ .;
lb)
(cl

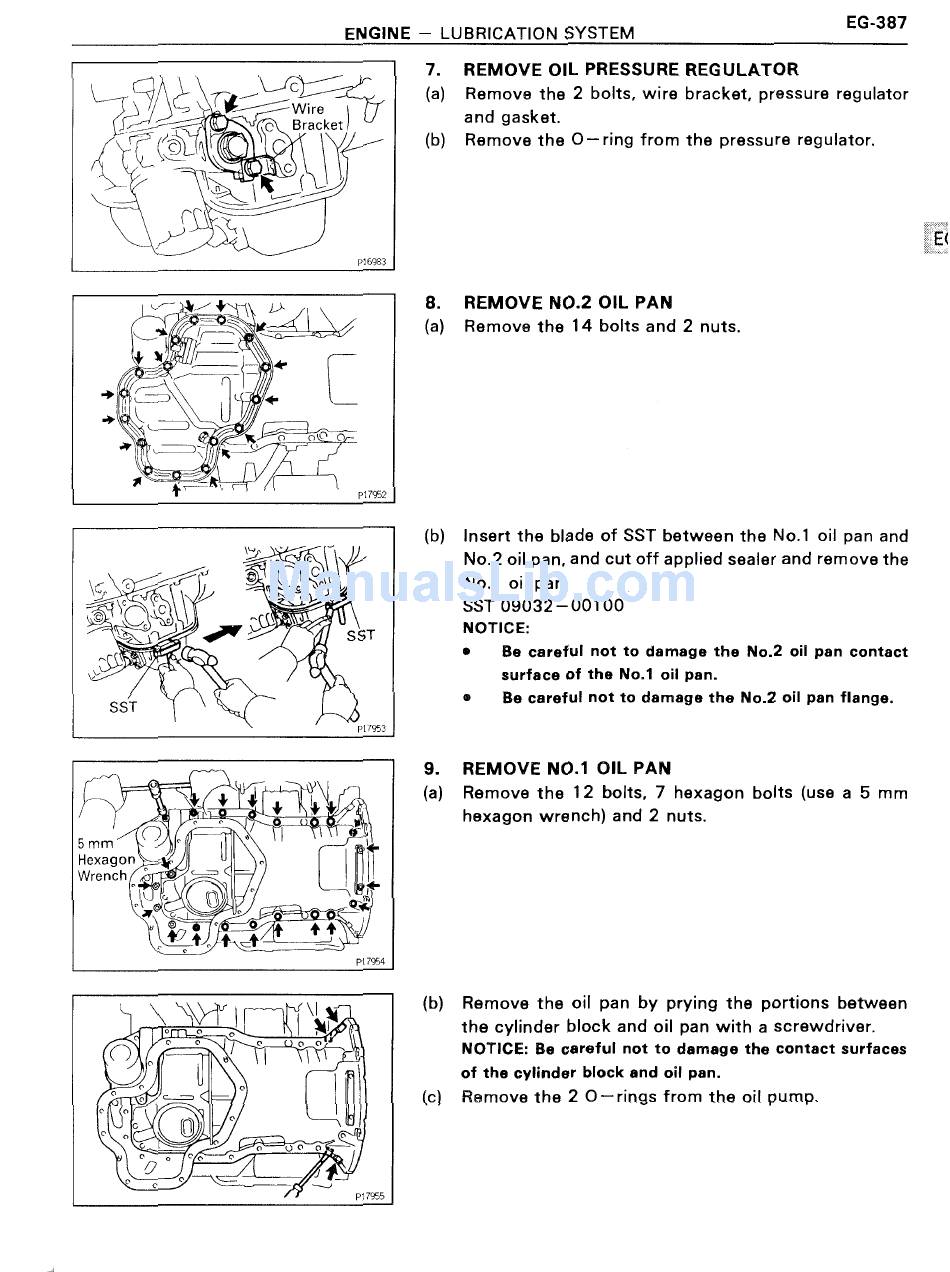

REMOVE OIL PRESSURE REGULATOR
Remove the 2 bolts, wire bracket, pressure regulator
and gasket.
Remove the O—ring from the pressure regulator.
REMOVE NO.2 OIL PAN
Remove the 14 bolts and 2 nuts.
Insert the blade of SST between the No.1 oil pan and
No.2 oil pan, and cut off applied sealer and remove the
No.1 oil pan.
SST 09032-00100
NOTICE:
I Be careful not to damage the No.2 oil pan contact
surface of the No.1 oil pan.
I Be careful not to damage the No.2 oil pan flange.
REMOVE NO.1 OIL PAN
Remove the 12 bolts, 7 hexagon bolts (use a 5 mm
hexagon wrench) and 2 nuts.
Remove the oil pan by prying the portions between
the cylinder block and oil pan with a screwdriver.
NOTICE: Ba careful not to damage the contact surfaces
of the cylinder block and oil pan.
Remove the 2 O—rings from the oil pump.
