Toyota 3S-GE Repair Manual page 334

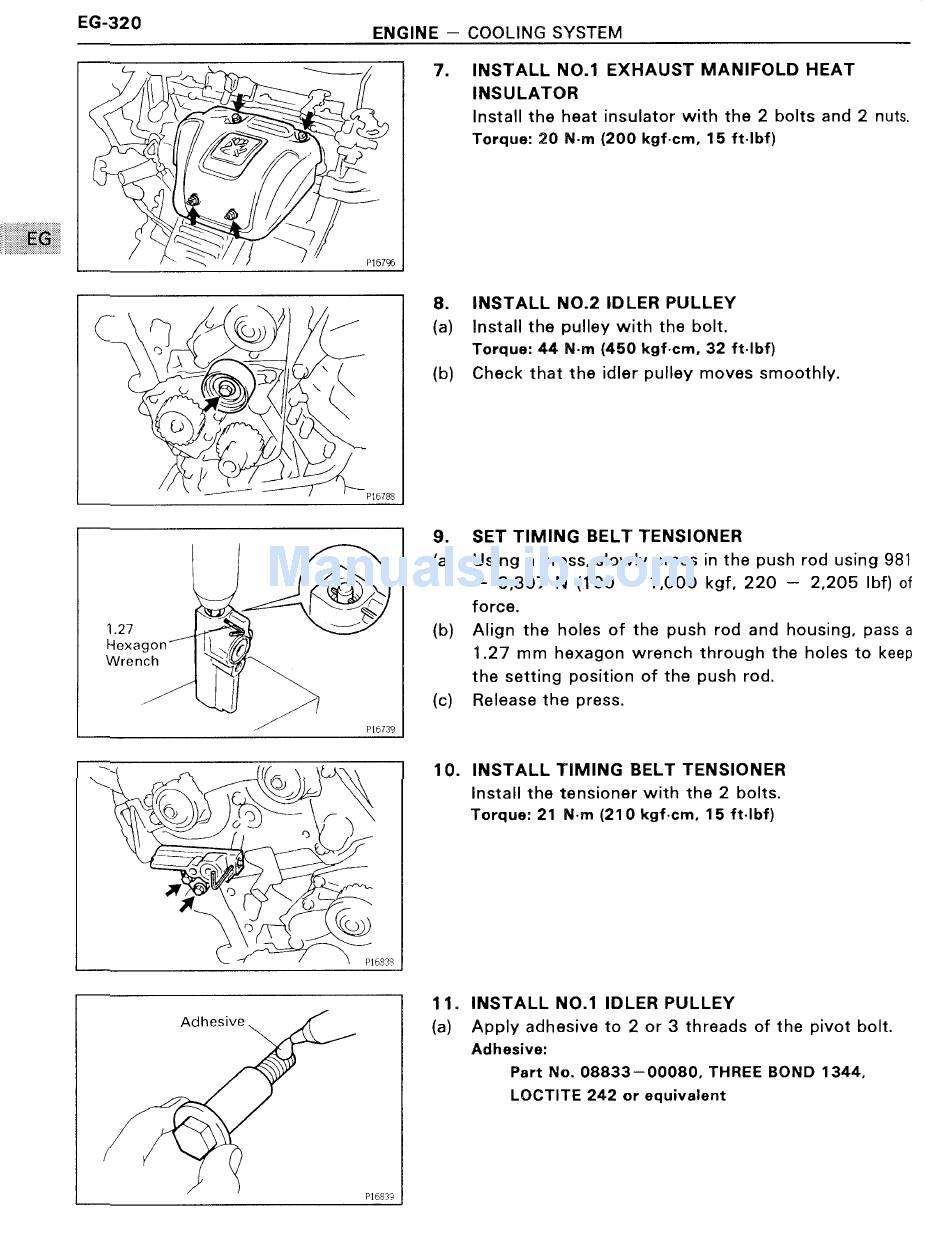

E6320 ENGINE — COOLING SYSTEM
\~_- 7
\ 121% O
V /\
/
' P16796
r/ ' % *€: '
>' @ I . 5'
{T
[(3 C @i% Z
ea AZE 5) ' '\ Q
\Zi/
K);
'V.'
1.27 '
Civil???" U
\..
P1673')
(~39 S"
We
sf)
L)
I 0 T
I
xe/'©
PIBBYQ
. INSTALL NO.1 EXHAUST MANIFOLD HEAT
INSULATOR
lnstall the heat insulator with the 2 bolts and 2 nuts.
Torque: 20 N-m (200 kgf-cm. 15 ft-Ibf)
8. INSTALL NO.2 IDLER PULLEY
(a) lnstall the pulley with the bolt.
Torque: 44 N-m (450 kgf-cm. 32 ft-Ibf)
(b) Check that the idler pulley moves smoothly.
9. SET TIMING BELT TENSIONER
(a) Using a press, slowly press in the push rod using 981
— 9,807 N (100 — 1,000 kgf, 220 — 2.205 Ibf) of
force.
(b) Align the holes of the push rod and housing, pass a
1.27 mm hexagon wrench through the holes to keep
the setting position of the push rod.
(c) Release the press.
10. INSTALL TIMING BELT TENSIONER
lnstall the tensioner with the 2 bolts.
Torque: 21 N-m (210 kgf-cm. 15 ft-Ibf)
11. INSTALL NO.1 IDLER PULLEY
Adhesive (a) Apply adhesive to 2 or 3 threads of the pivot bolt.
Adhesive:
Part No. 08833-00080, THREE BOND 1344.
LOCTITE 242 or equivalent
