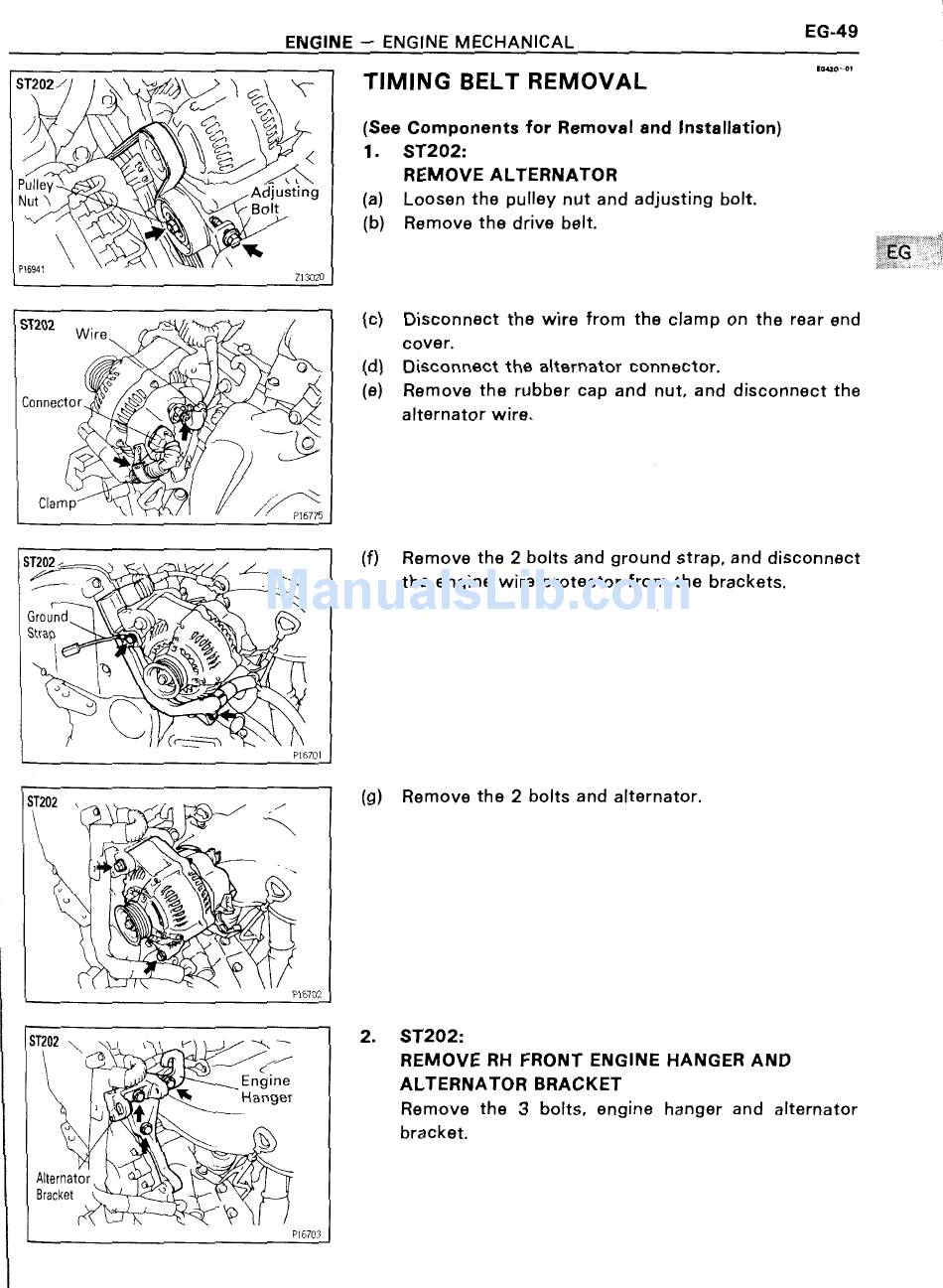

TIMING BELT REMOVAL
(See Components for Removal and Installation)
1. ST202:
REMOVE ALTERNATOR
(a) Loosen the pulley nut and adjusting bolt.
(b) Remove the drive belt.
(cl
Disconnect the wire from the clamp on the rear end
coven
Disconnect the alternator connector.
Remove the rubber cap and nut, and disconnect the
alternator wire.
(d)
(9)
(f) Remove the 2 bolts and ground strap, and disconnect
the engine wire protector from the brackets.
(g) Remove the 2 bolts and alternator.
Pl
V J \\ 2. ST202:
Q.
Pl 6703
* Z5 REMOVE RH FRONT ENGINE HANGER AND
E"9"'e ALTERNATOR BRACKET
I"I
a gel Remove the 3 bolts, engine hanger and alternator
$T2IlZ\ \
was /
A I :7 .
it; I i . .
bracket.
