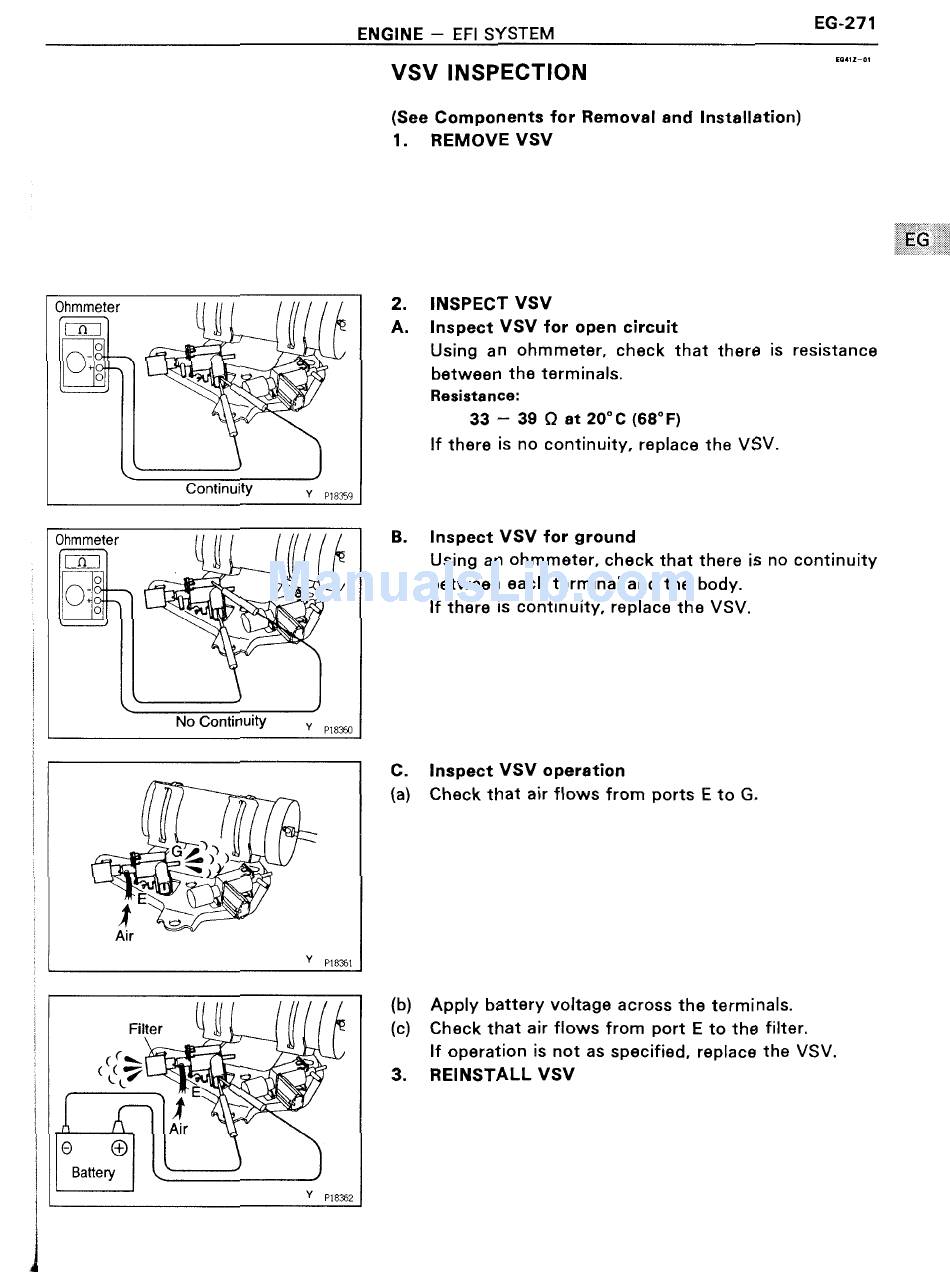

ENGINE - EFI SYSTEM E6471
Pi :
vsv INSPECTION
(See Components for Removal and Installation)
1. REMOVE VSV
Ohmmeter 2. INSPECT VSV
,- " A. Inspect VSV for open circuit
_ - __ Using an ohmmeter, check that there is resistance
\ between the terminals.
- Resistance:
33 — 39 Q at 20°C (68°F)
If there is no continuity. replace the VSV.
Continuity Y W359
' % , _ §17' . I t _ e=
No Continuity Y
P183550
Qhmmeter B. Inspect VSV for ground
" Using an ohmmeter, check that there is no continuity
' ~ . If there is continuity, replace the VSV.
between each terminal and the body.
I
mgil.
n o lL\J
IF
- __
~ , t Js Pots};
Z»
Y
P18361
C. Inspect VSV operation
(a) Check that air flows from ports E to G.
'ft:
m
(b) Apply battery voltage across the terminals.
Filter . ' (c) Check that air flows from port E to the filter.
I
-
I I ' I __T'
Battery
Y
§~», , ' * = I . r e?-1' )
'510
// ")4
PI8362
If operation is not as specified. replace the VSV.
3. REINSTALL VSV
