EG452 ENGINE — ENGINE MECHANICAL
wlk
Q L)
\ (Ax
\
, . - \ ""
3-3"/>51
A
gflé
%%
,4' \.-
/ - >
6\\\$
PO3173
@>@ »_
. . - >
6%
< \r*
/I) I P16700
. . / " h
7- a
/_
\§'
X
\<»
) 4\/2/
EM7984 203374
9 (d)

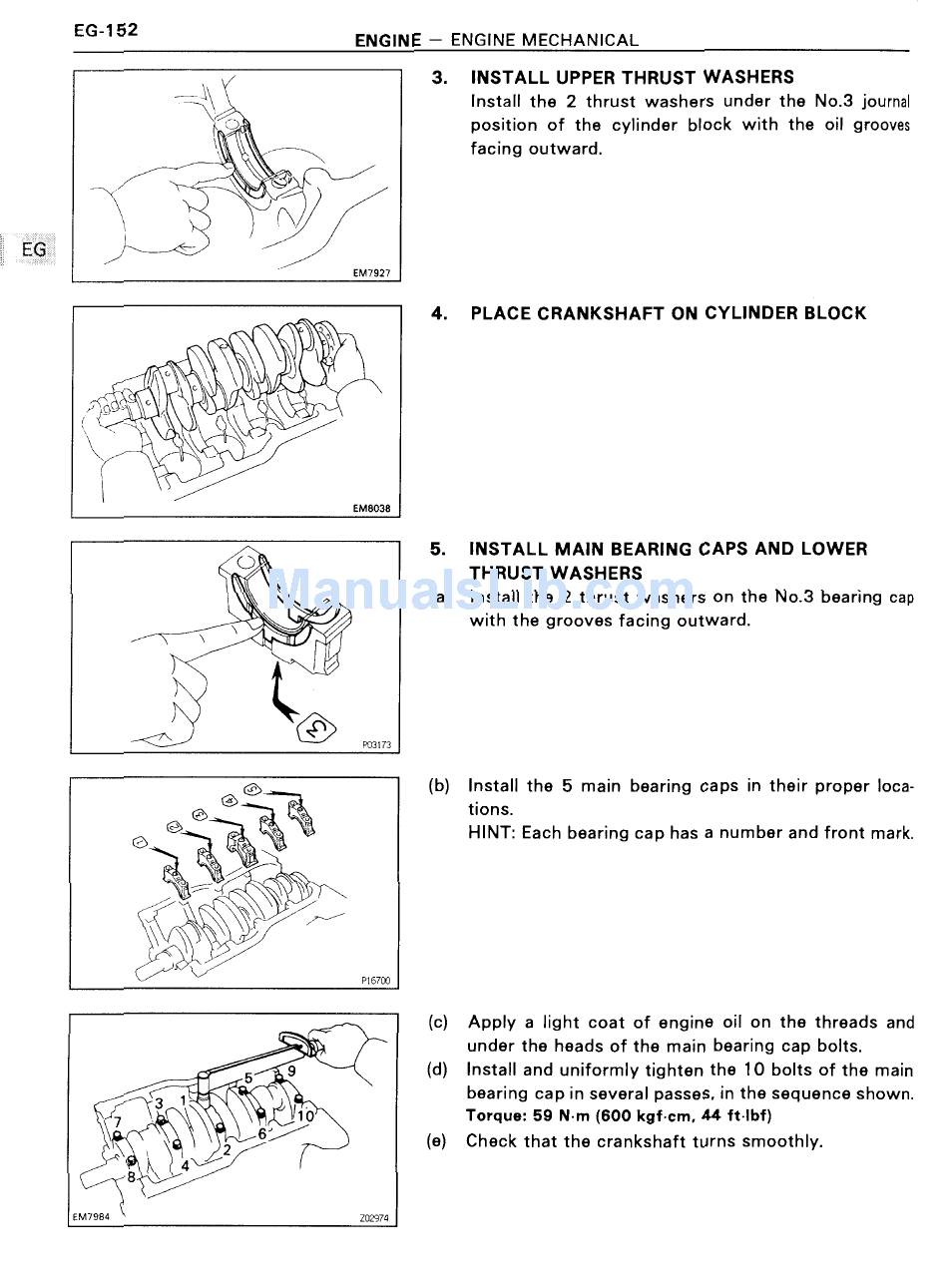

INSTALL UPPER THRUST WASHERS
lnstall the 2 thrust washers under the No.3 journal
position of the cylinder block with the oil grooves
facing outward.
PLACE CRANKSHAFT ON CYLINDER BLOCK
INSTALL MAIN BEARING CAPS AND LOWER
THRUST WASHERS
lnstall the 2 thrust washers on the No.3 bearing cap
with the grooves facing outward.
lnstall the 5 main bearing caps in their proper loca-
tions.
HINT: Each bearing cap has a number and front mark.
Apply a light coat of engine oil on the threads and
under the heads of the main bearing cap bolts.
Install and uniformly tighten the 10 bolts of the main
bearing cap in several passes, in the sequence shown.
Torque: 59 N-m (600 kgf-cm. 44 ft-Ibf)
Check that the crankshaft turns smoothly.
