Toyota 3S-GE Repair Manual page 418

EG-404
ENGINE — LUBRICATION SYSTEM
Push
5
LU0614
5inrn
Hexagon
VVrench
%
/
//
U. . . . . , \ _ . .
2* l.I/
\%'?;
&
Pl67'l8
EM7984
9
/ § »<\
T /
R.
\i?
2
202974
E0100 01

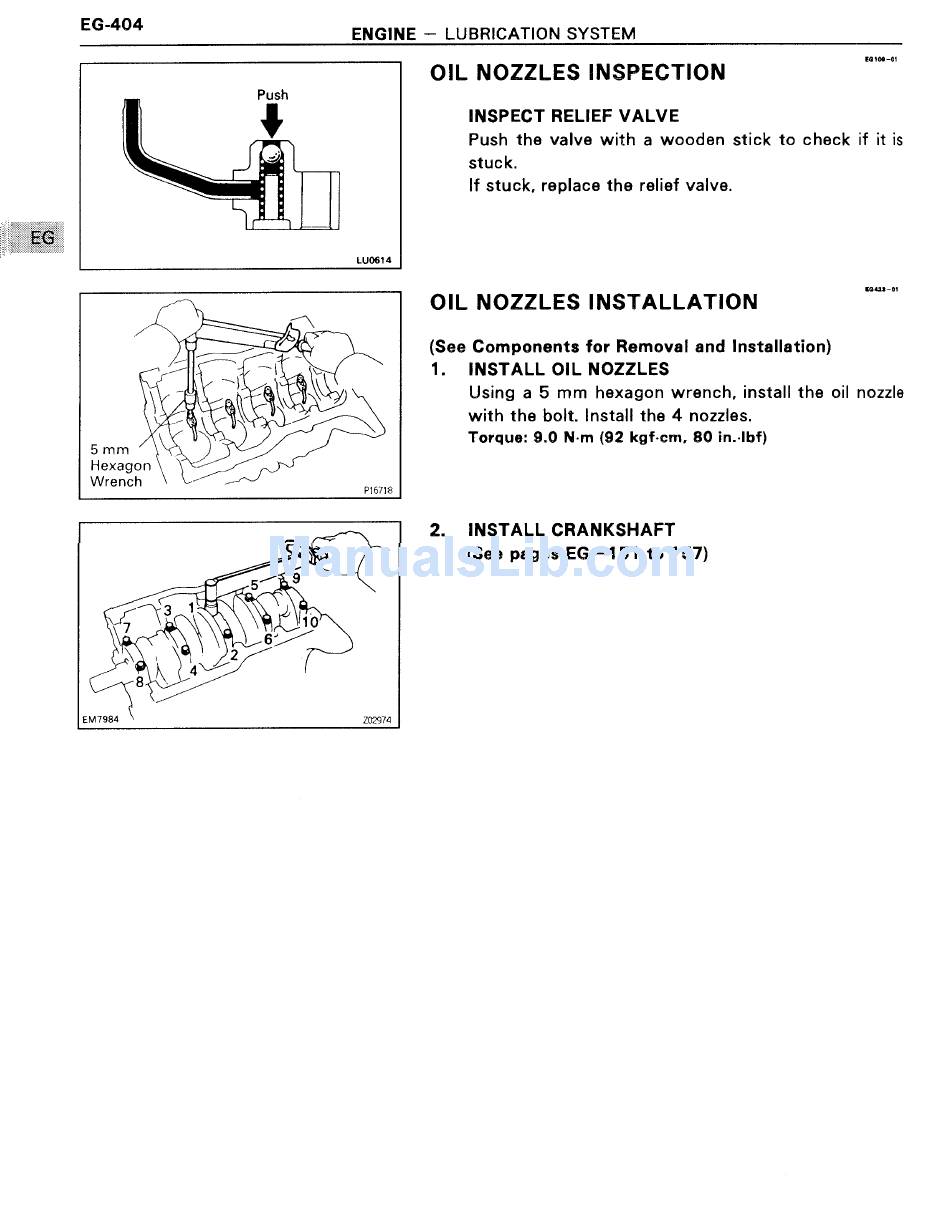

OIL NOZZLES INSPECTION
INSPECT RELIEF VALVE
Push the valve with a wooden stick to check if it is
stuck.
If stuck, replace the relief valve.
IDl.'lI—0l
OIL NOZZLES INSTALLATION
(See Components for Removal and Installation)
1. INSTALL OIL NOZZLES
Using a 5 mm hexagon wrench, install the oil nozzle
with the bolt. lnstall the 4 nozzles.
Torque: 9.0 N-m (92 kgf-cm. 80 in.-lbf)
2. INSTALL CRANKSHAFT
(See pages EG—151 to 157)
