EG-158
ENGINE — ENGINE MECHANICAL

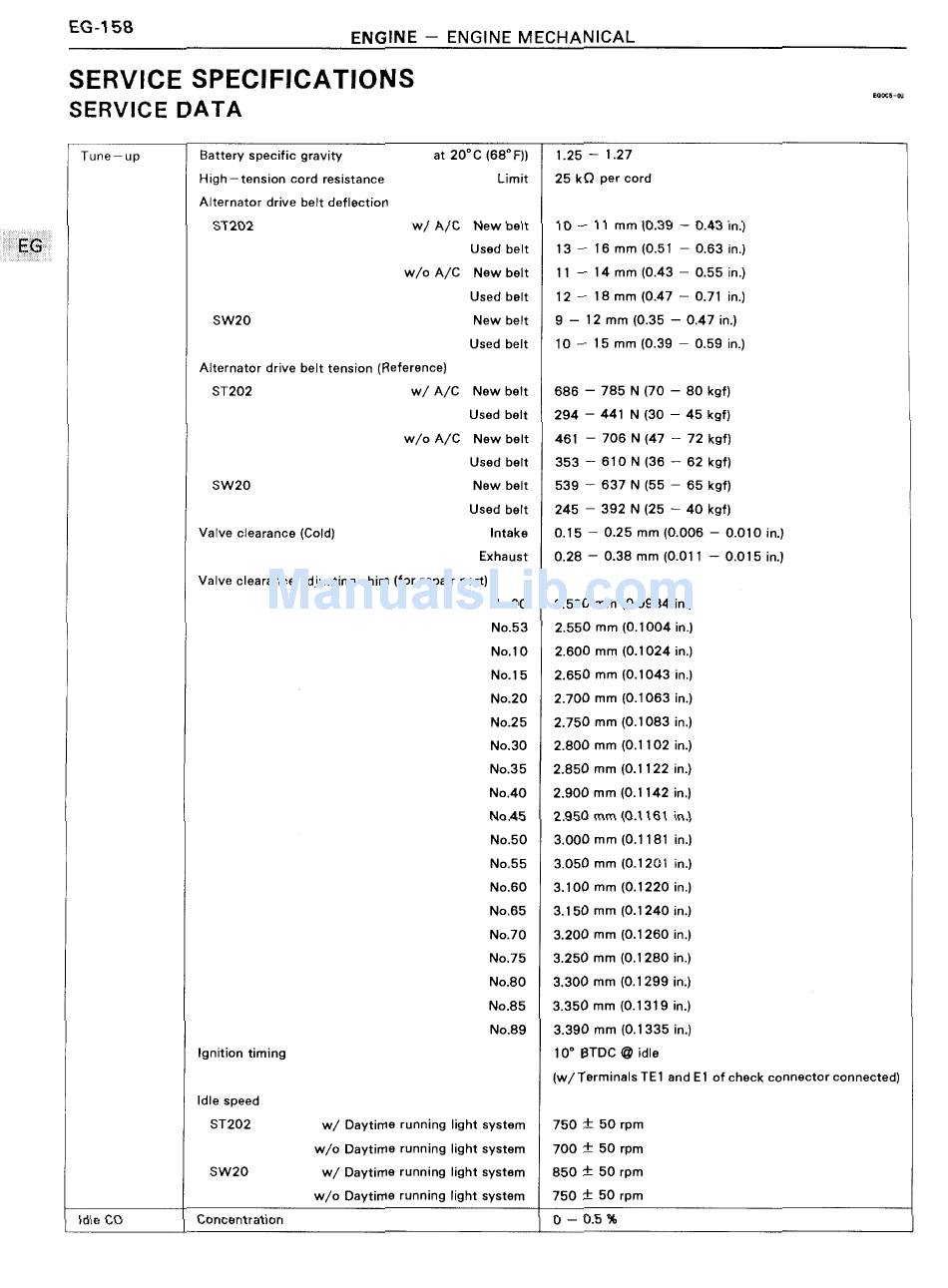

SERVICE SPECIFICATIONS
SERVICE DATA
Tune—up Battery specific gravity at 20°C (68° F))
High—tension cord resistance Limit
Alternator drive belt deflection
ST202
SW20
w/ A/C
w/o A/C
Alternator drive belt tension (Reference)
ST202
SW20
Valve clearance (Cold)
w/ A/C
w/o A/C
New belt
Used belt
New belt
Used belt
New belt
Used belt
New belt
Used belt
New belt
Used belt
New belt
Used belt
Intake
Exhaust
Valve clearance adjusting shim (for repair part)
Ignition timing
Idle speed
ST202
No.00
No.53
No.1 0
No.1 5
No.20
No.25
No.30
No.35
No.40
No.45
No.50
No.55
No.60
No.65
No.70
No.75
No.80
No.85
No.89
w/ Daytime running light system
w/o Daytime running light system
SW20 w/ Daytime running light system
w/o Daytime running light system
1.25 — 1.27
25 kQ per cord
10 - 11 mm (0.39 — 0.43111.)
13 — 13 mm (0.51 - 0.33111.)
11 - 14 mm (0.43 — 0.55111.)
12 — 1s mm (0.47 - 0.11 in.)
3 — 12 mm (0.35 - 0.47111.)
10 - 15 mm (0.39 — 0.59111.)
686 — 785 N (70 — 80 kgf)
294 — 441 N (30 — 45 kgf)
461 — 706 N (47 — 72 kgf)
353 — 610 N (36 —— 62 kgf)
539 — 637 N (55 — 65 kgf)
245 — 392 N (25 — 40 kgf)
0.15 - 0.25 mm (0.006 — 0.010 Irl)
0.28 - 0.38 mm (0.011 - 0.015111)
2.500 mm (0.0984 in.)
2.550 mm (0.1004 in.)
2.600 mm (0.1024 in.)
2.650 mm (0.1043 in.)
2.700 mm (0.1063 in.)
2.750 mm (0.1083 in.)
2.800 mm (0.1102 in.)
2.850 mm (0.1122 in.)
2.900 mm (0.1142 in.)
2.950 mm (0.1161 in.)
3.000 mm (0.1181 in.)
3.050 mm (0.1 201 in.)
3.100 mm (0.1220 in.)
3.150 mm (0.1240 in.)
3.200 mm (0.1260 in.)
3.250 mm (O.1280 in.)
3.300 mm (0.1299 in.)
3.350 mm (0.1319 in.)
3.390 mm (0.1335 in.)
10° BTDC @ idle
(w/ Terminals TE1 and E1 of check connector connected)
750 i 50 rpm
700 i 50 rpm
850 i 50 rpm
750 i 50 rpm
Idle CO Concentration 0—0.5%
