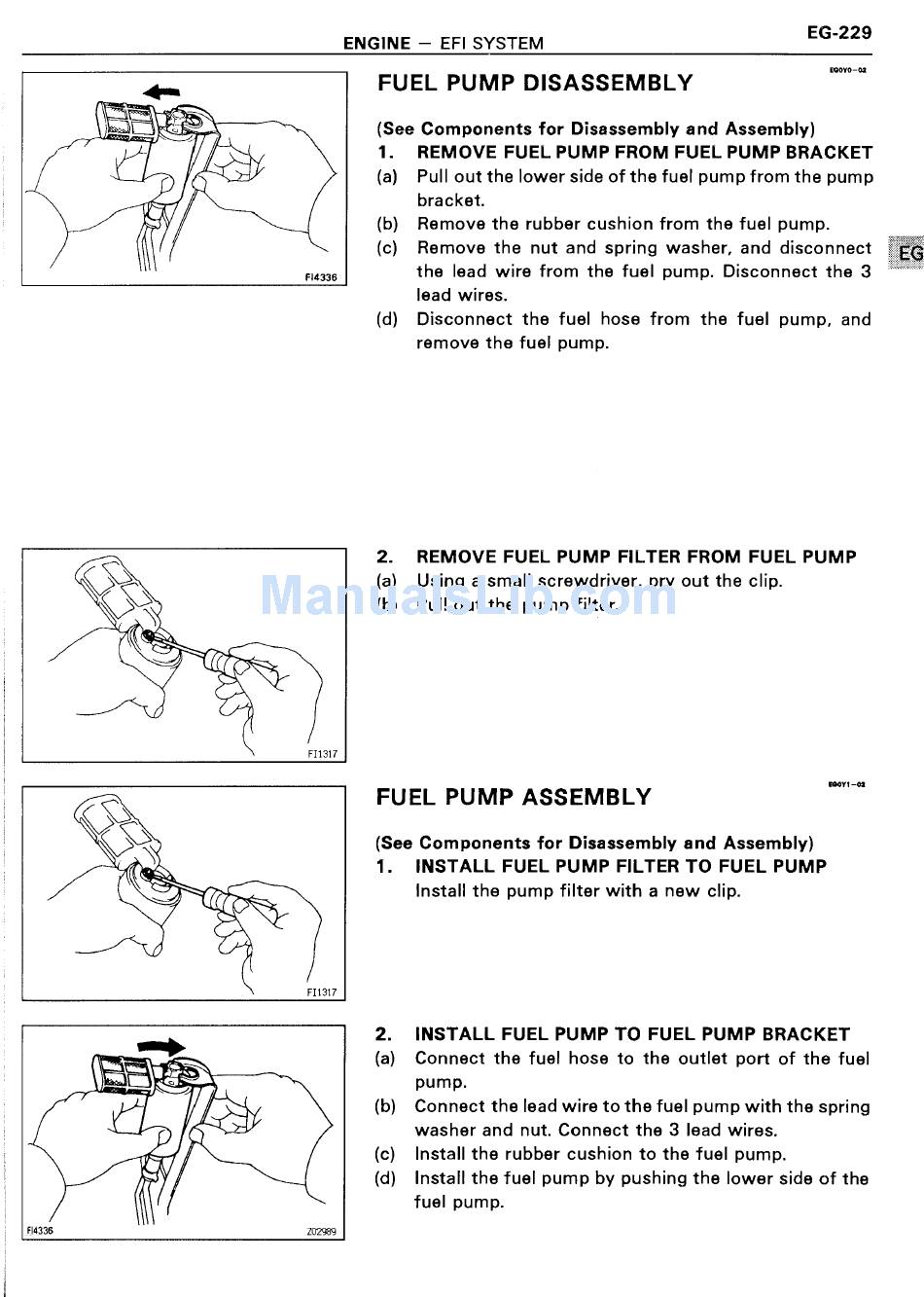

ENGINE — EFI SYSTEM EG-229
5
Ire»
'EV
H4336
FUEL PUMP DISASSEMBLY ' ° °' . °*°'
(See Components for Disassembly and Assembly)
1. REMOVE FUEL PUMP FROM FUEL PUMP BRACKET
(a) Pull out the lower side of the fuel pump from the pump
bracket.
(b) Remove the rubber cushion from the fuel pump.
the lead wire from the fuel pump. Disconnect the 3
\
/ %\"§;s
_/' ,7
F1131?
lead wires.
(d) Disconnect the fuel hose from the fuel pump, and
remove the fuel pump.
2. REMOVE FUEL PUMP FILTER FROM FUEL PUMP
(a) Using a small screwdriver, pry out the clip.
(b) Pull out the pump filter.
\
%\"'s's
/< , ' 3 ».
F1131?
FUEL PUMP ASSEMBLY "°"*°'
(See Components for Disassembly and Assembly)
1. INSTALL FUEL PUMP FILTER TO FUEL PUMP
lnstall the pump filter with a new clip.
H4336
ZO2989
2. INSTALL FUEL PUMP TO FUEL PUMP BRACKET
(a) Connect the fuel hose to the outlet port of the fuel
pump.
Connect the lead wire to the fuel pump with the spring
washer and nut. Connect the 3 lead wires.
(c) lnstall the rubber cushion to the fuel pump.
(d) lnstall the fuel pump by pushing the lower side of the
fuel pump.
lb)
(c) Remove the nut and spring washer, and disconnect
