EG-346
ENGINE — COOLING SYSTEM
'\
/
\ \\
\\\\\/X/'\
y\\"k/
conngct; _ : —-_
P053413
L
\\ Q _
4"/I
.\
P056441
4%
A
V [I1 Ammeter
\, / Battery
PO6074
/ /%/[I
/// /R h
¢>;/ 4*
i
A \, 7
K
sf' g
\
/
h)/Z
~ ~ \\\)
d i/}'°S'~"/\
'\'::::\
P053417
EGMC OI

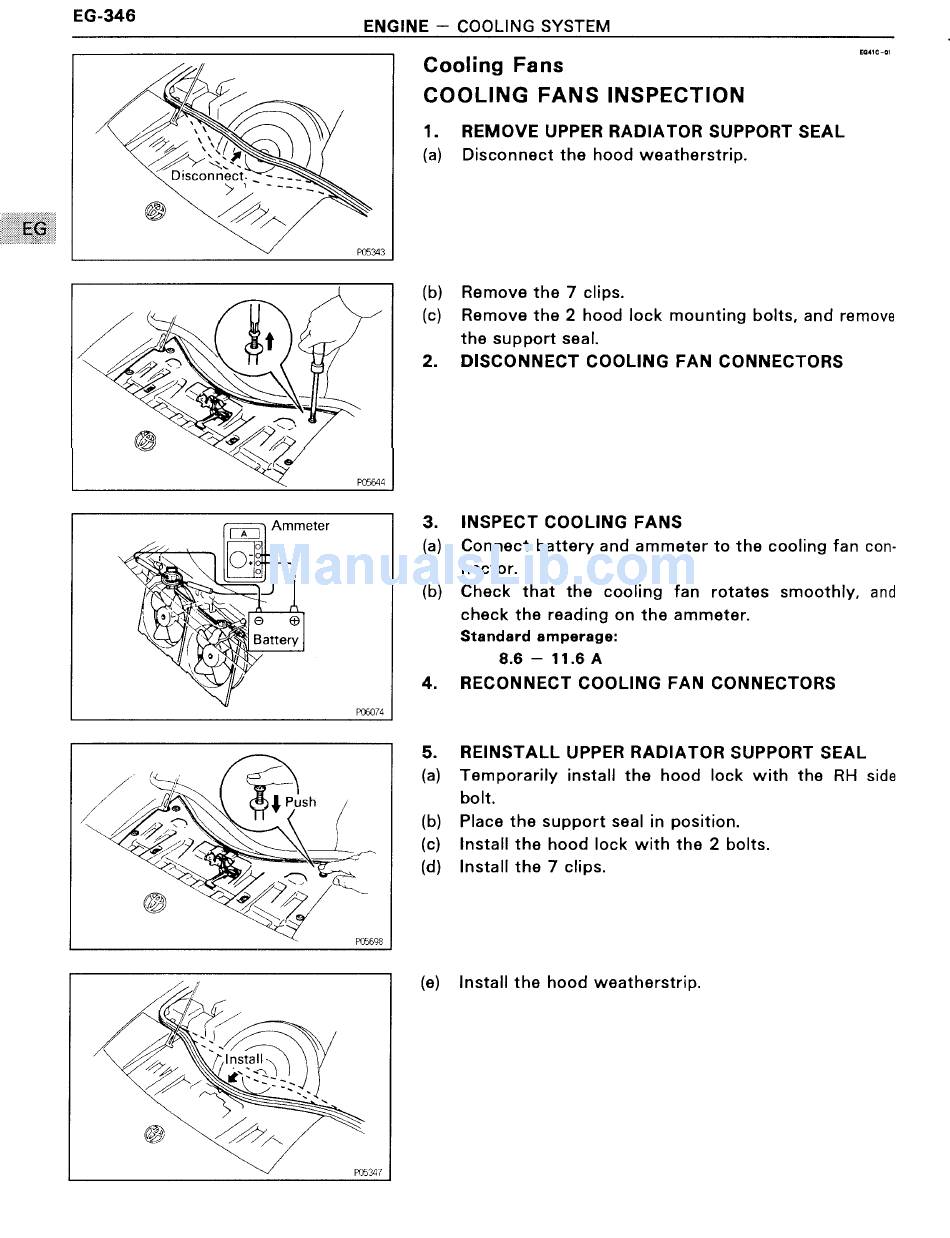

Cooling Fans
COOLING FANS INSPECTION
1. REMOVE UPPER RADIATOR SUPPORT SEAL
(a) Disconnect the hood weatherstrip.
(b) Remove the 7 clips.
(c) Remove the 2 hood lock mounting bolts, and remove
the support seal.
2. DISCONNECT COOLING FAN CONNECTORS
3. INSPECT COOLING FANS
(a) Connect battery and ammeter to the cooling fan con-
nector.
(b) Check that the cooling fan rotates smoothly, and
check the reading on the ammeter.
Standard amperage:
3.6 — 11.6 A
4. RECONNECT COOLING FAN CONNECTORS
5. REINSTALL UPPER RADIATOR SUPPORT SEAL
(a) Temporarily install the hood lock with the RH side
bolt.
(b) Place the support seal in position.
(c) lnstall the hood lock with the 2 bolts.
(d) lnstall the 7 clips.
(e) Install the hood weatherstrip.
