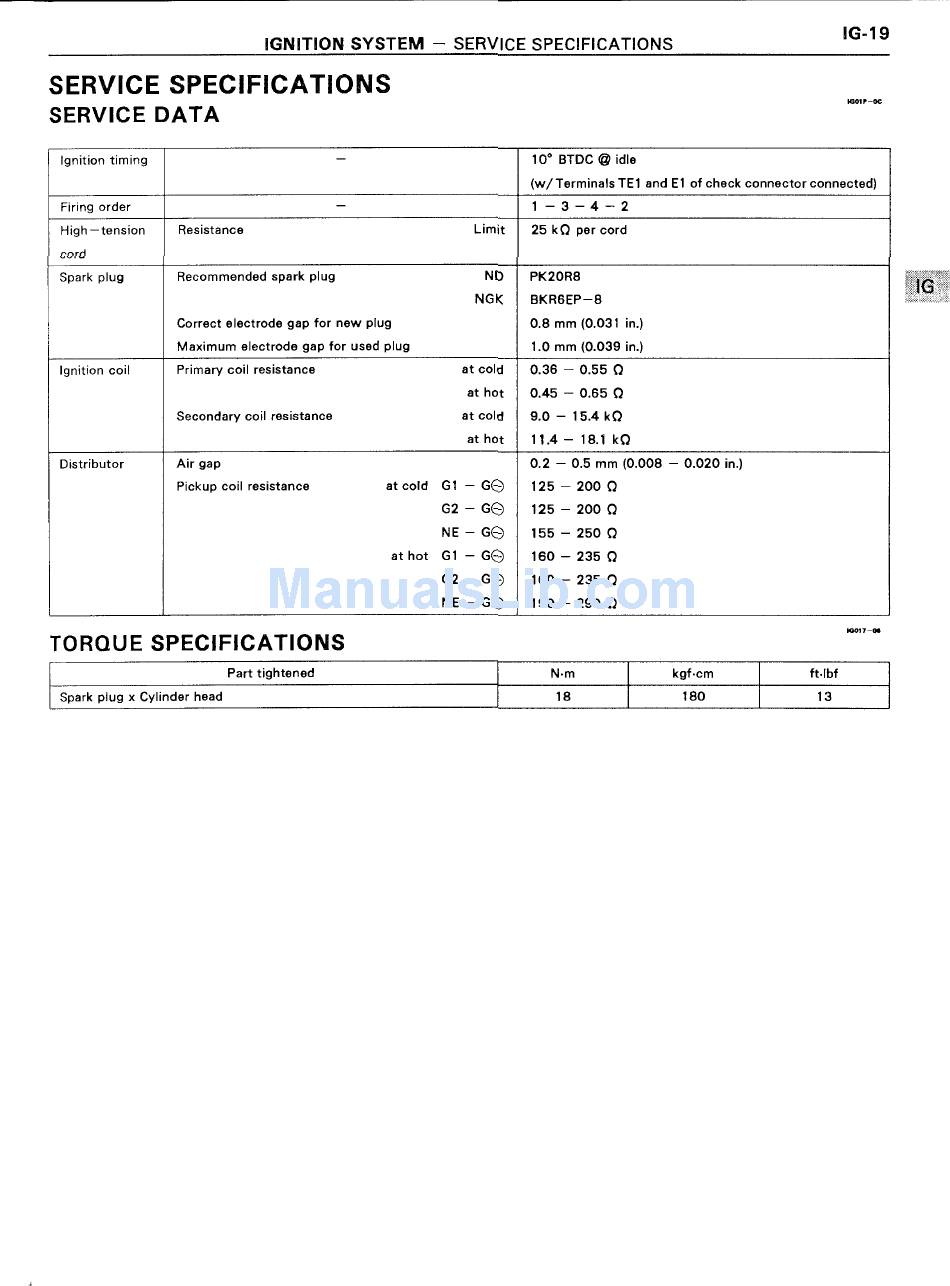

IGNITION SYSTEM — SERVICE SPECIFICATIONS 'G'19
SERVICE SPECIFICATIONS
SERVICE DATA
lG0lP—OC
Ignition timing — 10° BTDC @ idle
(w/ Terminals TE1 and E1 of check connector connected)
Firing order
1-3-4-
High—tension
cord
Resistance Limit
25 kQ per cord
Spark plug
Recommended spark plug ND
NGK
Correct electrode gap for new plug
Maximum electrode gap for used plug
PK2OR8
BKRGEP — 8
0.8 mm (0.031 in.)
I.0 mm (0.039 in.)
Ignition coil
Primary coil resistance at cold
at hot
Secondary coil resistance at cold
at hot
0.36 — 0.55 Q
0.45 — 0.65 Q
9.0 —15.4kQ
11.4 — 18.1 kQ
Distributor
Air gap
Pickup coil resistance at cold GI — GE)
G2 — G6
NE — G@
at hot G1 — G9
G2 — G@
NE — G@
0.2 — 0.5 mm (0.008 — 0.020 in.)
I25
125
I55
160
160
190
200 Q
200 Q
250 Q
235 Q
235 Q
290 Q
TORQUE SPECIFICATIONS
lllO11—K
Part tightened N-m kgf-cm ft-lbf
Spark plug x Cylinder head 18 I80 13
