Toyota 3S-GE Repair Manual page 386

E6372 ENGINE - coouwe SYSTEM
\
4/ _
\'j r,, I'
Q] 4\
W
\ .~
\ /
\
Ignition
Main
Relay
P05560
Ohmmeter
I-xgI
¢-1-1.
No ,.
Continuity/ 2 g
I C
\I".lI$I;,~.\
|i|>T_!§ll|\
5
4
Continuity
:' Oh
Ohmmeter mmeter
Continuity
B50375
_I
G'
Battery
9
Ohmmeter
Continuit 3 2
0| \_|' |', 0
zfl 1 ll 1 l-—J
ml
I iii V
5
4
Ohmmeter
No
Conflnufly
EED76
iGlIl~0I

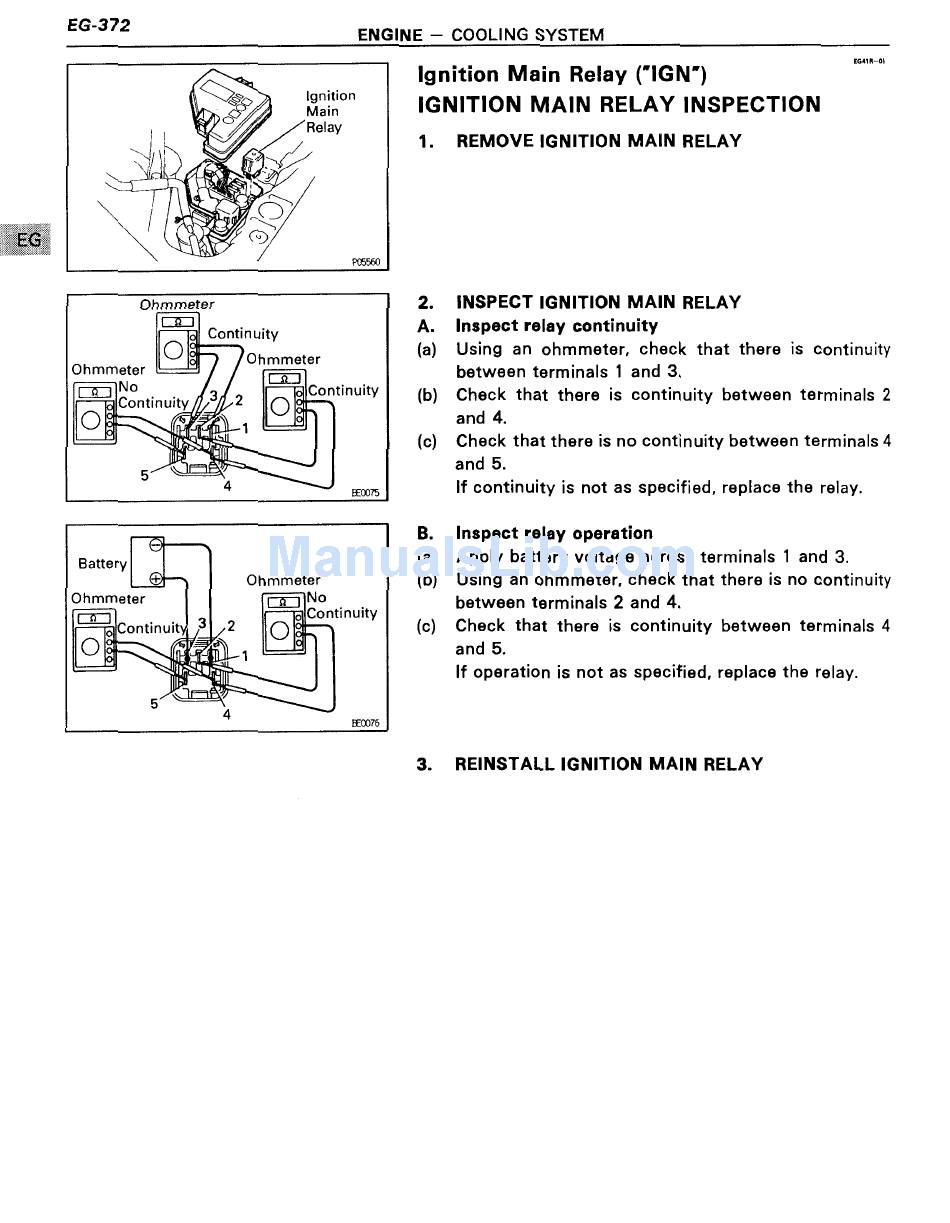

Ignition Main Relay ('IGN')
IGNITION MAIN RELAY INSPECTION
1. REMOVE IGNITION MAIN RELAY
INSPECT IGNITION MAIN RELAY
Inspect relay continuity
Using an ohmmeter, check that there is continuity
between terminals 1 and 3.
Check that there is continuity between terminals 2
and 4.
Check that there is no continuity between terminals 4
and 5.
If continuity is not as specified, replace the relay.
Inspect relay operation
Apply battery voltage across terminals 1 and 3.
Using an ohmmeter, check that there is no continuity
between terminals 2 and 4.
Check that there is continuity between terminals 4
and 5.
If operation is not as specified, replace the relay.
REINSTALL IGNITION MAIN RELAY
