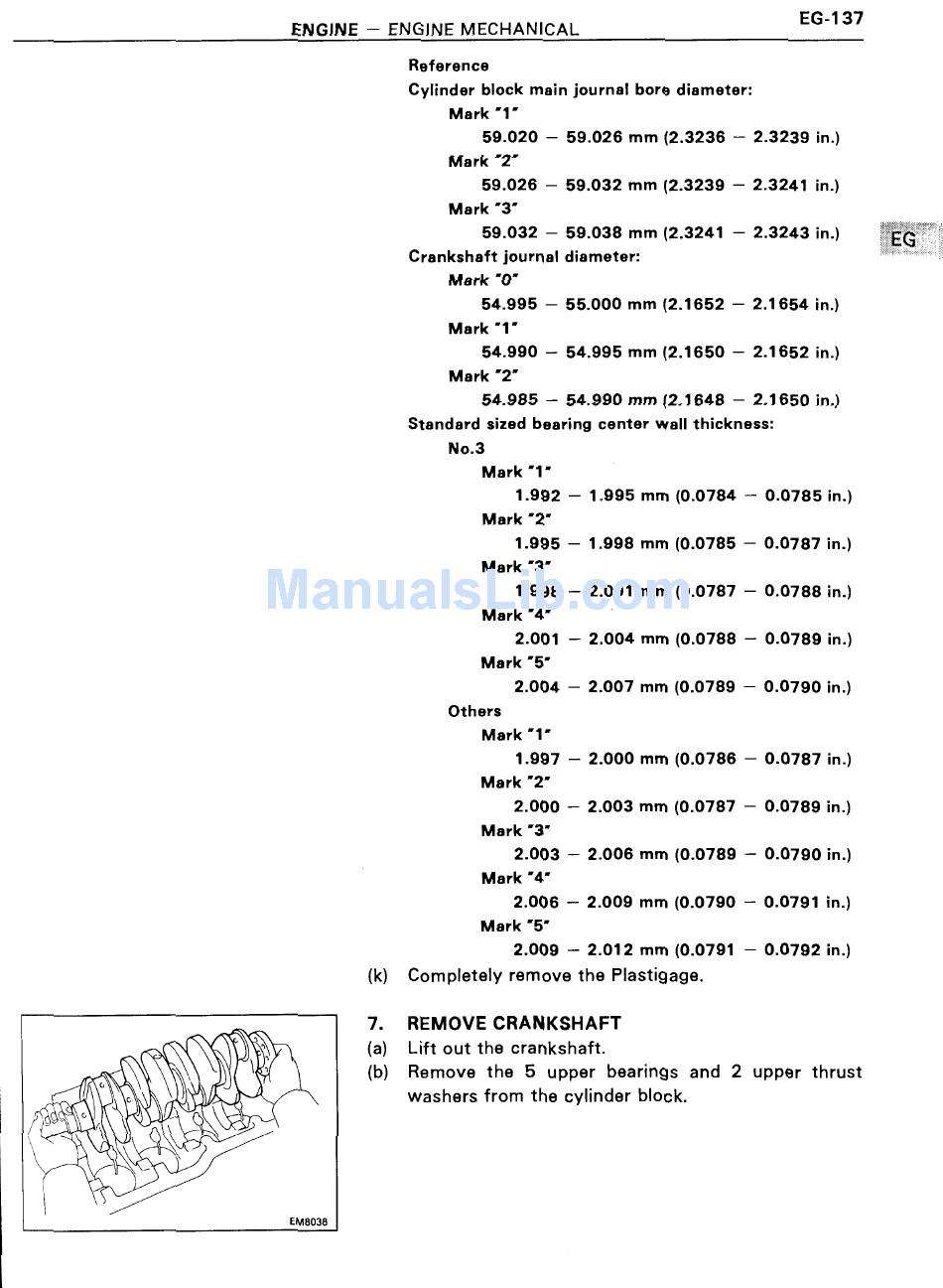

ENGINE — ENGINE MECHANICAL

Cylinder block main journal bore diameter:

59.020 — 59.026 mm (2.3236 — 2.3239 in.)

59.026 — 59.032 mm (2.3239 — 2.3241 in.)

59.032 — 59.038 mm (2.3241 — 2.3243 in.)

Crankshaft journal diameter:

54.995 — 55.000 mm (2.1652 — 2.1654 in.)

54.990 — 54.995 mm (2.1650 — 2.1652 in.)

54.985 — 54.990 mm (2.1648 — 2.1650 in.)

Standard sized bearing center wall thickness:

1.992 — 1.995 mm (0.0784 — 0.0785 in.)

1.995 — 1.998 mm (0.0785 — 0.0787 in.)

1.998 — 2.001 mm (0.0787 — 0.0788 in.)

2.001 — 2.004 mm (0.0788 — 0.0789 in.)

2.004 — 2.007 mm (0.0789 — 0.0790 in.)

1.997 — 2.000 mm (0.0786 — 0.0787 in.)

2.000 — 2.003 mm (0.0787 — 0.0789 in.)

2.003 —— 2.006 mm (0.0789 — 0.0790 in.)

2.006 —— 2.009 mm (0.0790 — 0.0791 in.)

2.009 — 2.012 mm (0.0791 — 0.0792 in.)

Completely remove the Plastigage.

REMOVE CRANKSHAFT

Lift out the crankshaft

Remove the 5 upper bearings and 2 upper thrust

washers from the cylinder block.
