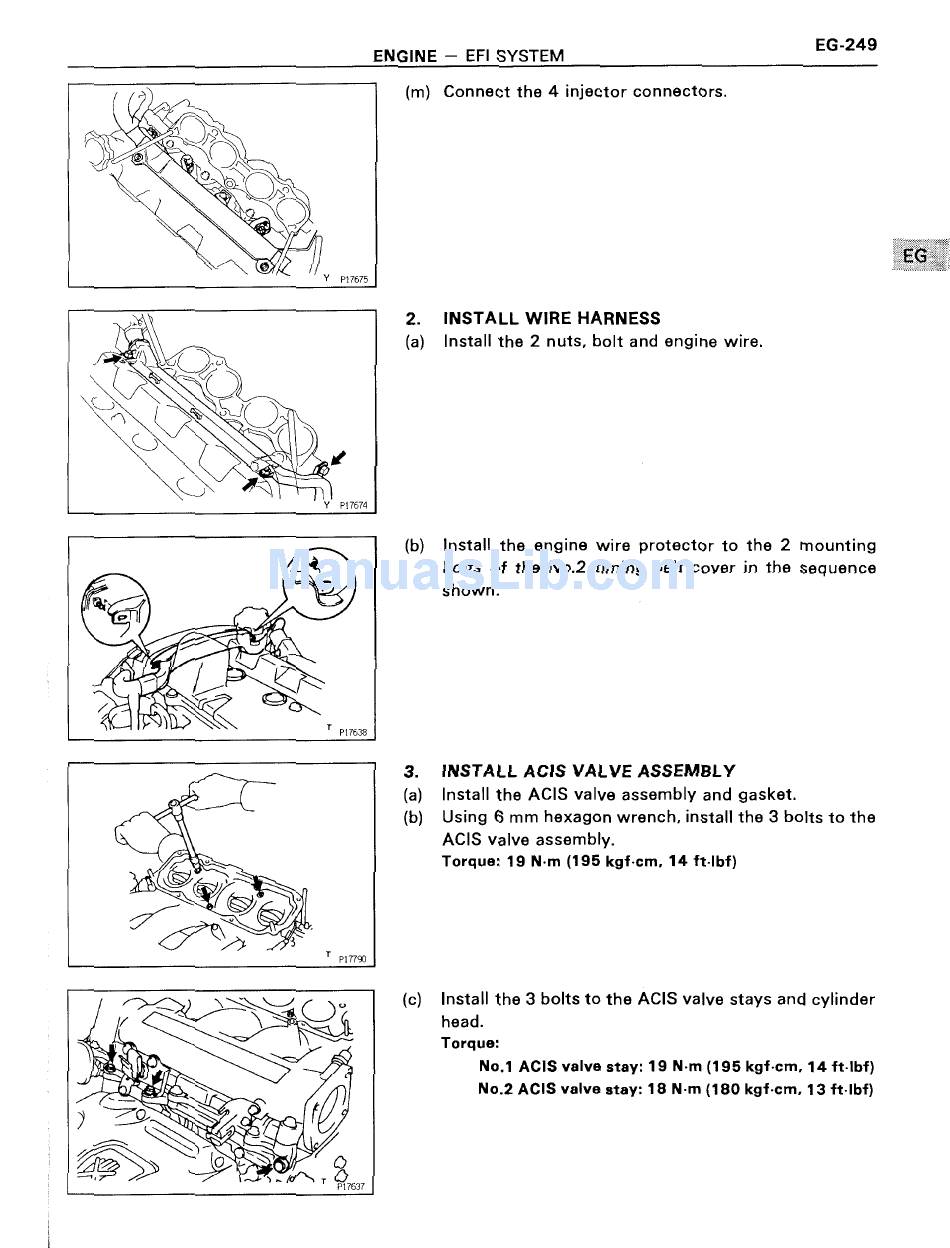

EG-249
ENGINE — EFI SYSTEM
(m) Connect the 4 injector connectors.
¢\
sin
'Se
at
2 INSTALL WIRE HARNESS
(a) lnstall the 2 nuts, bolt and engine wire.
,4!
(b) lnstall the engine wire protector to the 2 mounting
bolts of the No.2 timing belt cover in the sequence
/ T shown.
ii t
:2. \
/Ni
. /
is'
.1'/y/.~;'\'
_!4
'ls
' § ~' l \
7
rib ® /g.
7/
/ (Z
§
J
.7'
9
l < <%<' %
£ 113 -'
sit?
~ \
INSTALL ACIS VALVE ASSEMBLY
lnstall the ACIS valve assembly and gasket.
Using 6 mm hexagon wrench, install the 3 bolts to the
ACIS valve assembly.
Torque: 19 N-m (195 kgf-cm, 14 ft-Ibf)
lnstall the 3 bolts to the ACIS valve stays and cylinder
head.
Torque:
No.1 ACIS valve stay: 19 N-m (195 kgf-cm. 14 ft-Ibf)
No.2 ACIS valve stay: 18 N-m (180 kgf~cm. 13 ft-Ibf)
