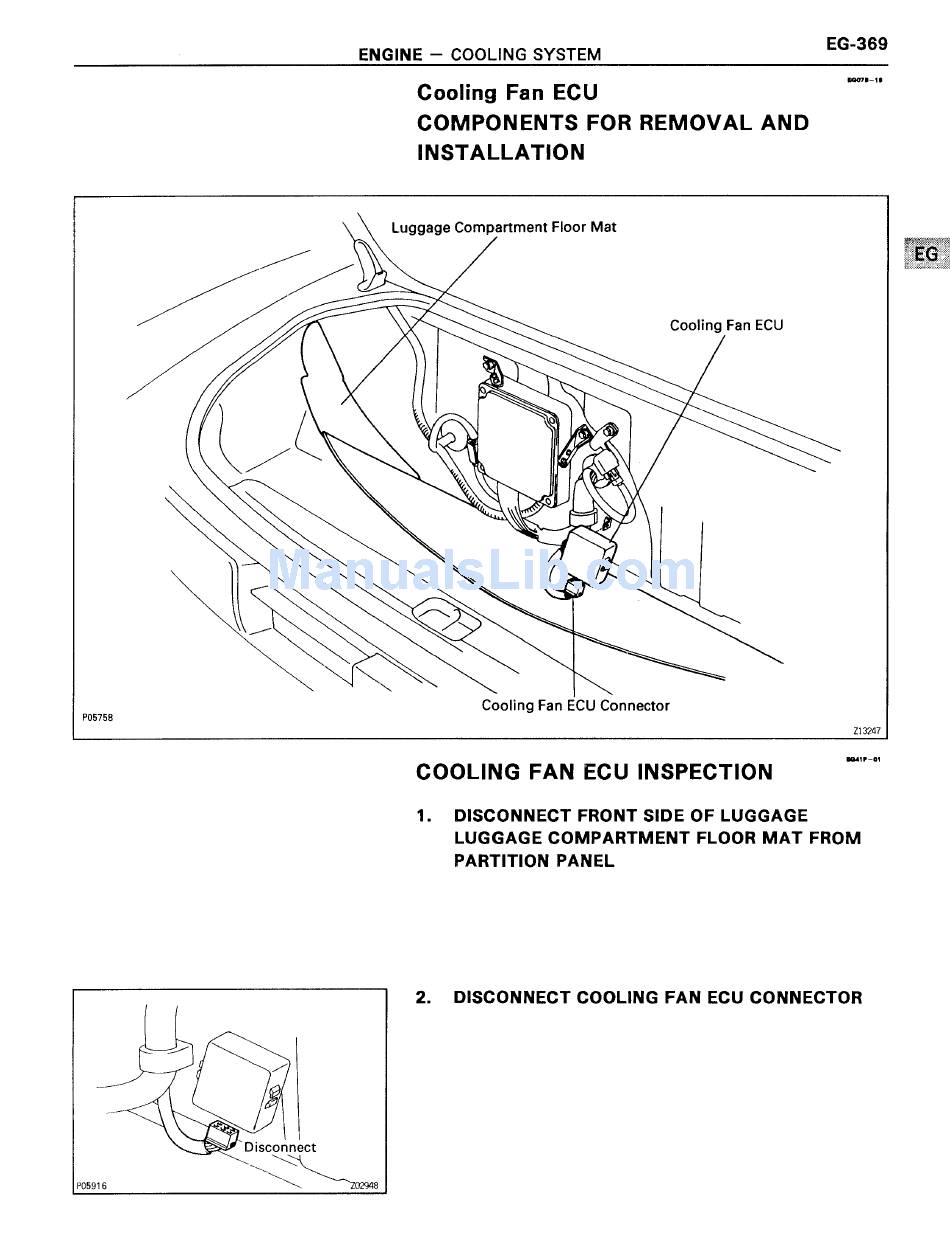

ENGINE — COOLING SYSTEM
EG-369
Cooling Fan ECU
COMPONENTS FOR REMOVAL AND
INSTALLATION
bl
//
Luggage Companment Floor Mat
193%/Y
/
ng
Fan ECU
\
\
/
\\
\
\\
_
0
>
€
Z1324?
Disconnect
\\
\\
P05916
\.
02948
COOLING FAN ECU INSPECTION
1.
DISCONNECT FRONT SIDE OF LUGGAGE
LUGGAGE COMPARTMENT FLOOR MAT FROM
PARTITION PANEL
2.
DISCONNECT COOLING FAN ECU CONNECTOR
