Toyota 3S-GE Repair Manual page 262

EG-248
ENGINE — EFI SYSTEM
Bolt(B)
Spacer(A) ' "
\ 2,,
S
I is
L
\
\
\\
Y
Atta
\
Q '% .=>
X ' ~ / 1 . 0 .
w 73$'
5'3
Y P17682
(fl
egf
Q _ av I
\ °7Q§'5;~',"_\ _ , '*
*'@l 'G, _ \
~
SQ
Y Pl7583
7
9/I /
\—jonnector
., J ~
.\ -,
Rotat »\
c"@0;
>
6 '
Y Pl7684
(i)
\
-
r' - Yr.
/\ Y 917665
(I)
5
'S4
'V
e . »
/$7
,1)'
: - - ' € ~
Q.
Vacuum ' (kl
Union Bolt \fi§,'§§'"9 ®"'
if I 7
{K v.,_"_'_ . '. I'
UL ' Fuel
\.Z% 5» Return
\ ' 4' Hose
\ "".'/,3.
'Q Fuel Inlet
P17676 P|pe Y 212255
(9)
(hi

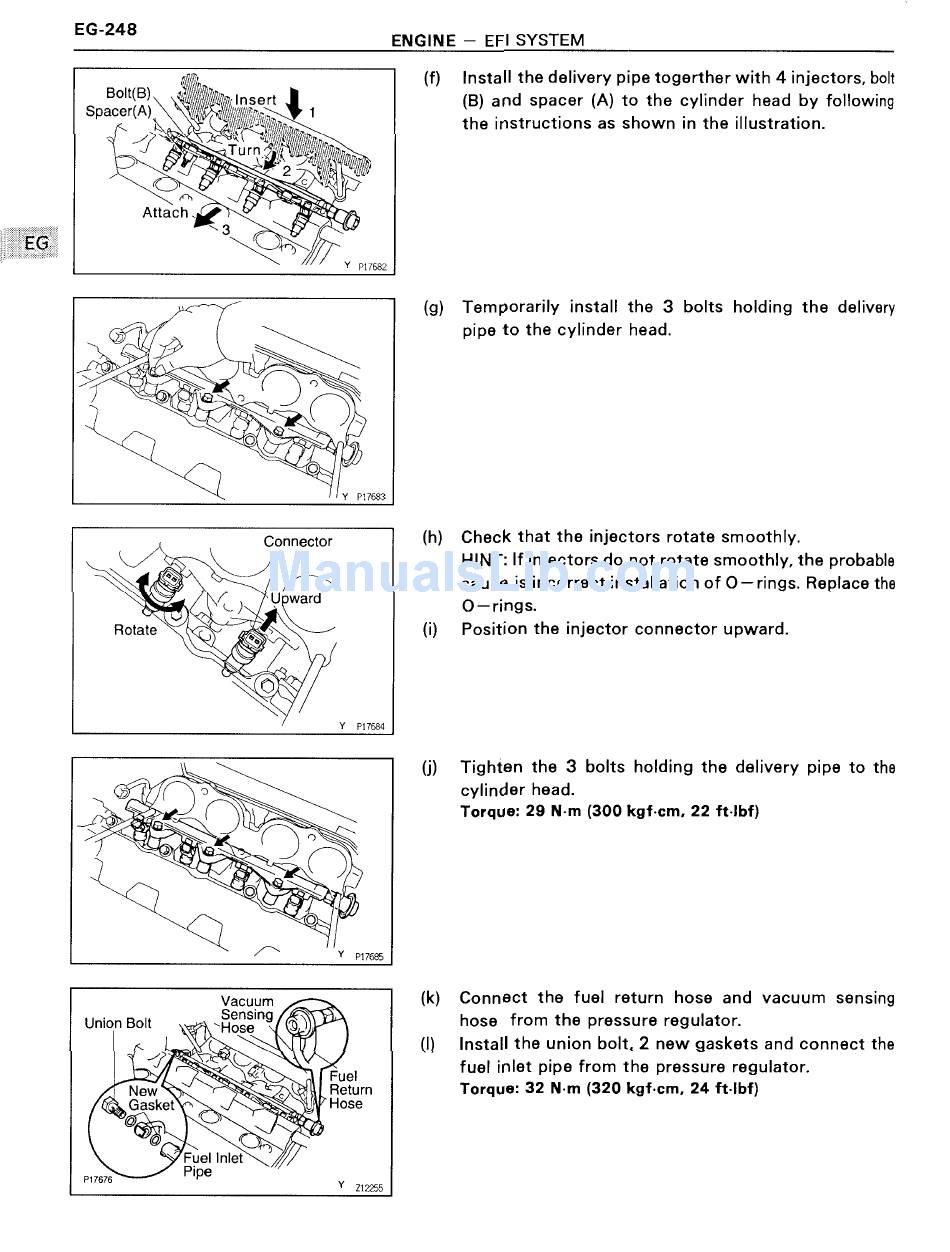

lnstall the delivery pipe togerther with 4 injectors, bolt
(B) and spacer (A) to the cylinder head by following
the instructions as shown in the illustration.
Temporarily install the 3 bolts holding the delivery
pipe to the cylinder head.
Check that the injectors rotate smoothly.
HINT: If injectors do not rotate smoothly, the probable
cause is incorrect installation of O—rings. Replace the
O—rings.
Position the injector connector upward.
Tighten the 3 bolts holding the delivery pipe to the
cylinder head.
Torque: 29 N-m (300 kgf-cm, 22 ft-Ibf)
Connect the fuel return hose and vacuum sensing
hose from the pressure regulator.
lnstall the union bolt, 2 new gaskets and connect the
fuel inlet pipe from the pressure regulator.
Torque: 32 N-m (320 kgf-cm, 24 ft-Ibf)
