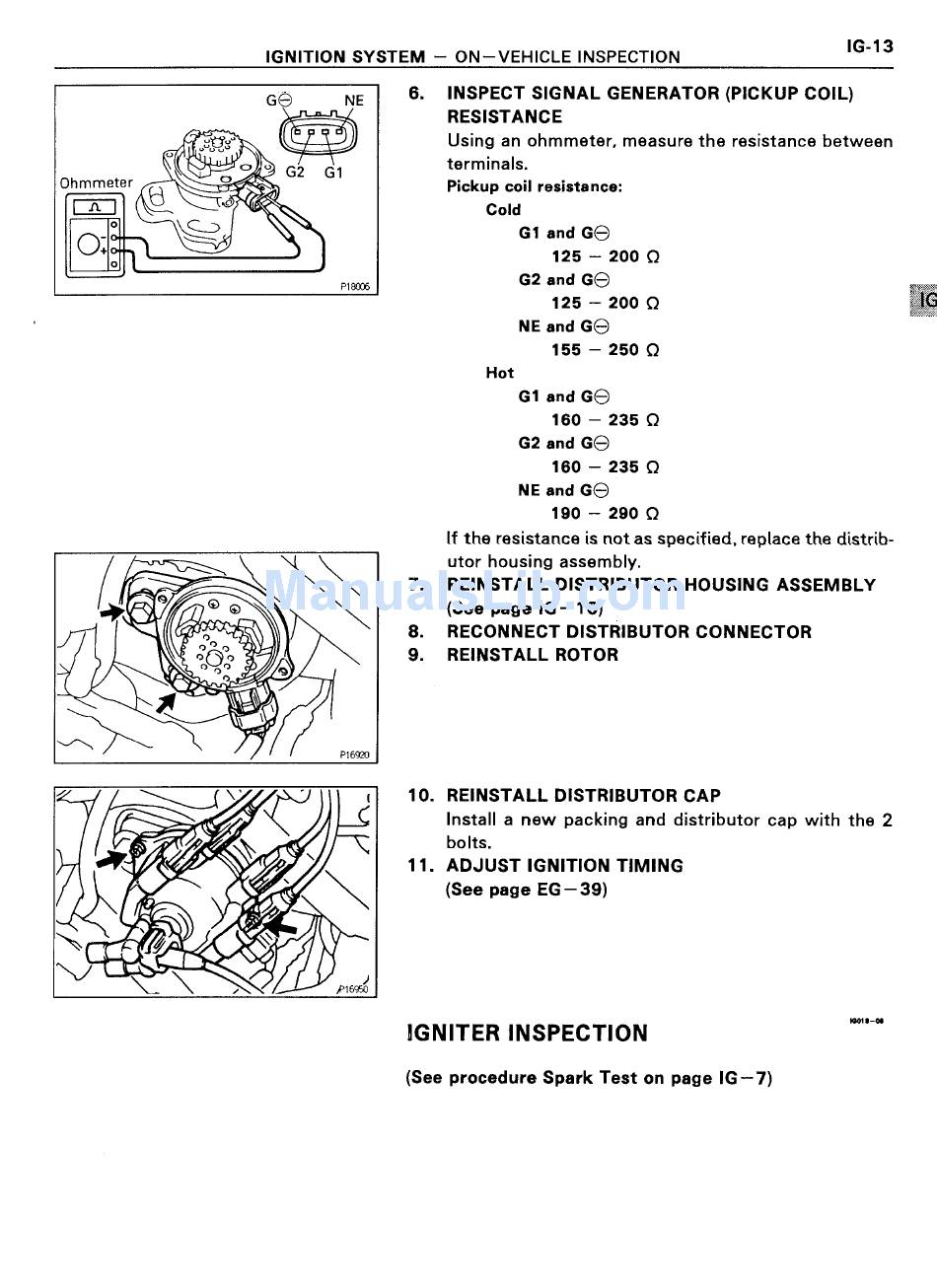

IGNITION SYSTEM — ON—VEH|CLE INSPECTION IG-13
5%
'I
'Q
G6) NE 6. INSPECT SIGNAL GENERATOR (PICKUP COIL)
RESISTANCE
Using an ohmmeter, measure the resistance between
G1 terminals.
Pickup coil resistance:
Ohmmeter
\ Cold
O- \ ' G1 and G9
* 125 - 200 Q
P18006
§
g\
[J ,
. @ §
P16920
<_/ '
-==,
as
\
/
#16950
G2 and G@
125 — 200 Q
NE and G@
155 — 250 Q
Hot
G1 and G@
160 — 235 Q
G2 and G@
160 — 235 Q
NE and GEE
190 — 290 Q
If the resistance is not as specified, replace the distrib-
utor housing assembly.
7. REINSTALL DISTRIBUTOR HOUSING ASSEMBLY
(See page lG—16) _
8. RECONNECT DISTRIBUTOR CONNECTOR
9. REINSTALL ROTOR
\/( \' 1 10. REINSTALL DISTRIBUTOR CAP
%'
lnstall a new packing and distributor cap with the 2
bolts
/'\i 11. A0.|usT IGNITION TIMING
I'/' Q \ (See page EG—39)
4"
IGNITER INSPECTION
(See procedure Spark Test on page IG-7)
