Toyota 3S-GE Repair Manual page 447

ST-7
STARTING SYSTEM — STARTER
/
ed
V
i
P1371?
S
Ll?
§ 3
°\
fig
R. J i
/'_@- pzo
PI3464
NA";
We"
%»
sT
(1)
(4)
(3)
1
\-
D
~77 \\
lfifimfltttr T
'((111,
I (((((u/r(0
PI3527
./
Q9' f
fl
P13743

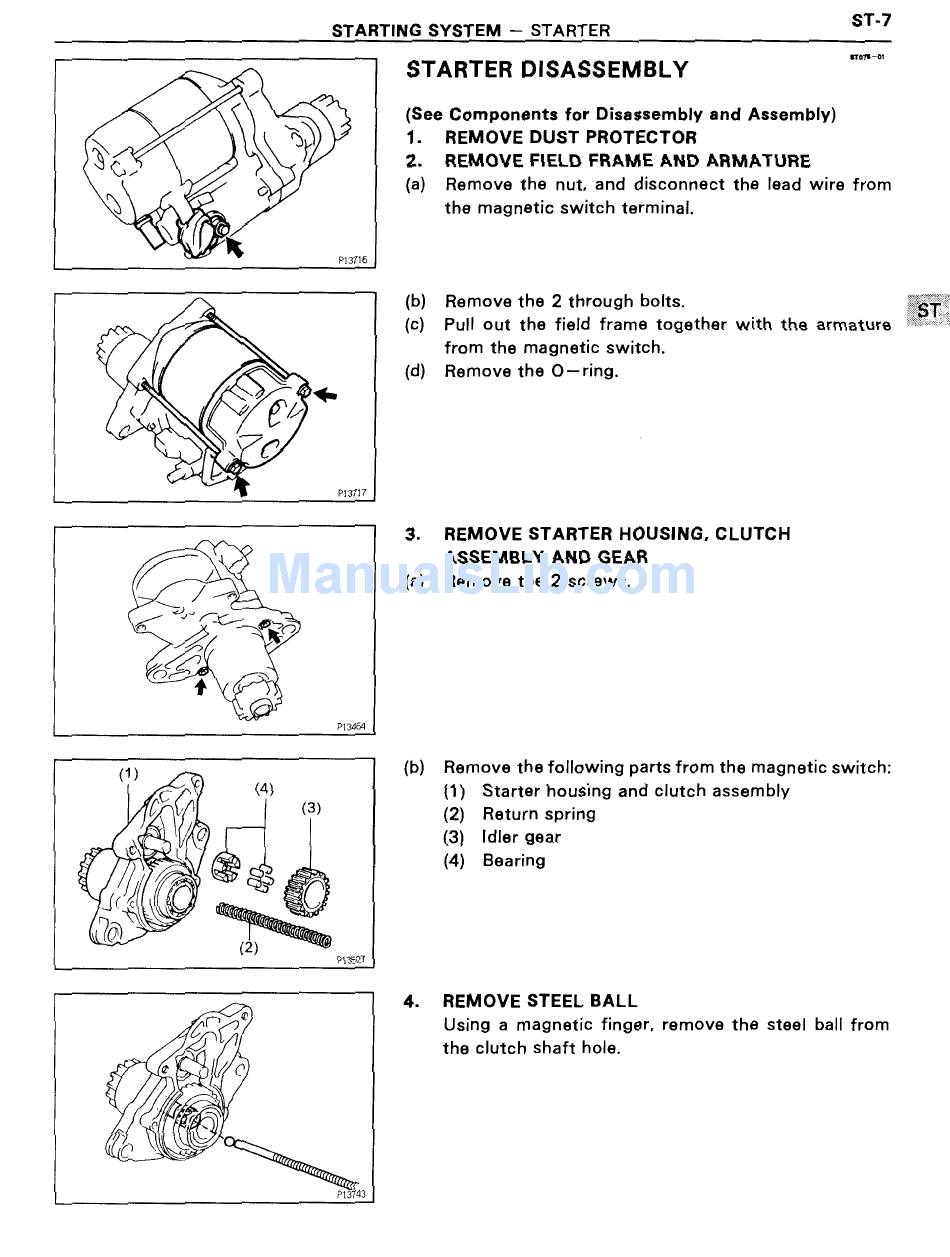

STARTER DISASSEMBLY
' (See Components for Disassembly and Assembly)
1. REMOVE DUST PROTECTOR
2. REMOVE FIELD FRAME AND ARMATURE
(a) Remove the nut, and disconnect the lead wire from
the magnetic switch terminal.
(b) Remove the 2 through bolts.
Pull out the field frame together with the armature
from the magnetic switch.
(d) Remove the O—ring.
3. REMOVE STARTER HOUSING, CLUTCH
ASSEMBLY AND GEAR
(a) Remove the 2 screws. -
(b) Remove the following parts from the magnetic switch:
(1) Starter housing and clutch assembly
(2) Return spring
(3) Idler gear
(4) Bearing
4. REMOVE STEEL BALL
Using a magnetic finger, remove the steel ball from
the clutch shaft hole.
