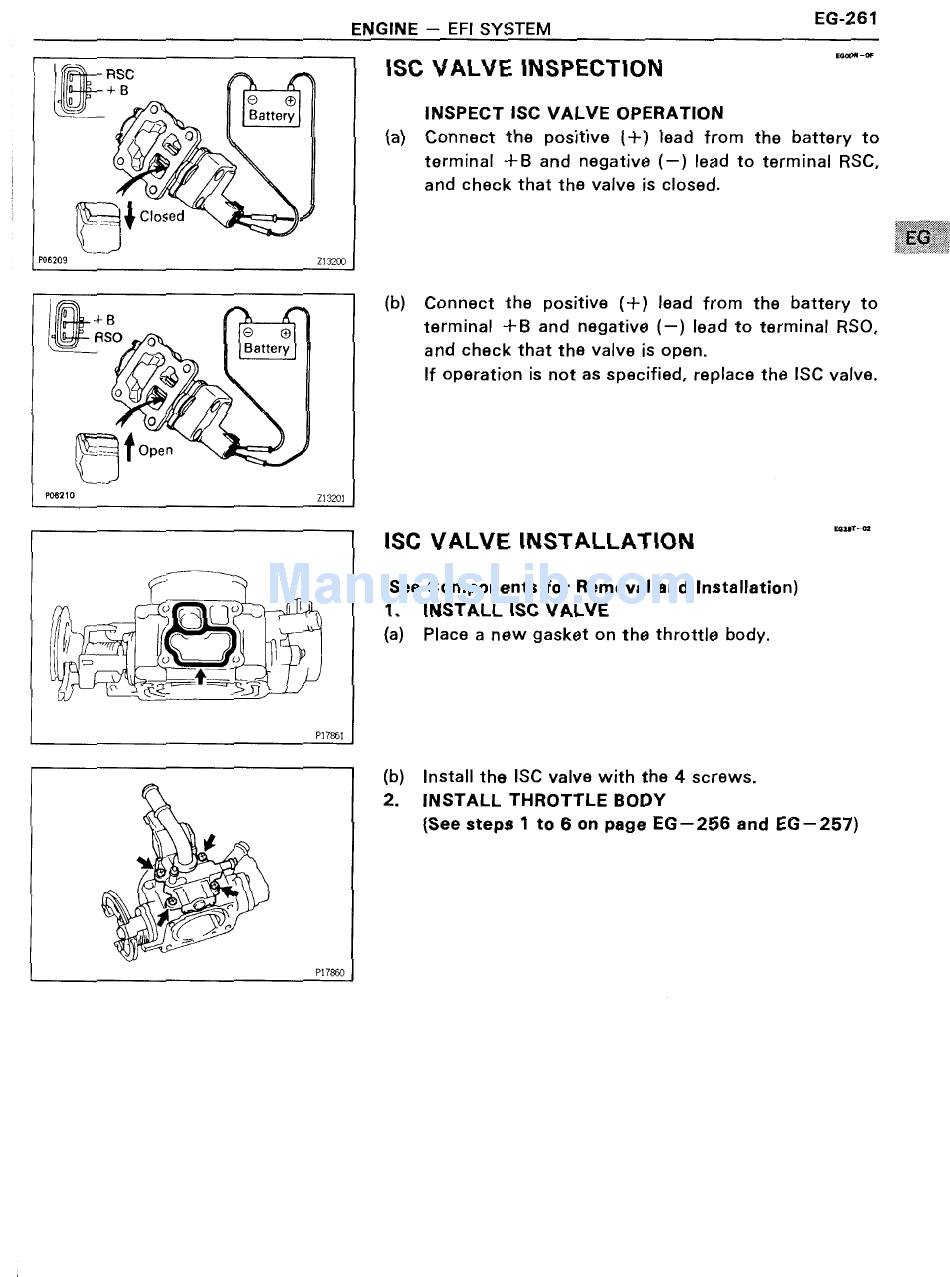

Toyota 3S-GE Repair Manual page 275

EG-261
_ ENGINE — EFI SYSTEM
O T T O 3
I SC
- I O o o
Ti I \\
/' \'\
i 5'
l //ff'\
CIOSBCI :1 /i/J,
Potszoe 'T 213900
35 . '
@tp . -
Polmo 213201
=.! wt
~ ts?"
'I,,,,';'1s
r ct
PI7860
ElI@I—OF
ISC VALVE INSPECTION
INSPECT ISC VALVE OPERATION
(a) Connect the positive (+) lead from the battery to
terminal +B and negative (—) lead to terminal RSC,
and check that the valve is closed.
(b) Connect the positive (+) lead from the battery to
terminal +8 and negative (—) lead to terminal RSO,
and check that the valve is open.
If operation is not as specified, replace the ISC valve.
ISC VALVE INSTALLATION """'°'
(See Components for Removaland Installation)
[J K 1. INSTALL ISC VALVE
(a) Place a new gasket on the throttle body.
la § i
o o lllll
l R@;+5,-33
(b) lnstall the ISC valve with the 4 screws.
2. INSTALL THROTTLE BODY
(See steps 1 to 6 on page EG—256 and EG—257)
