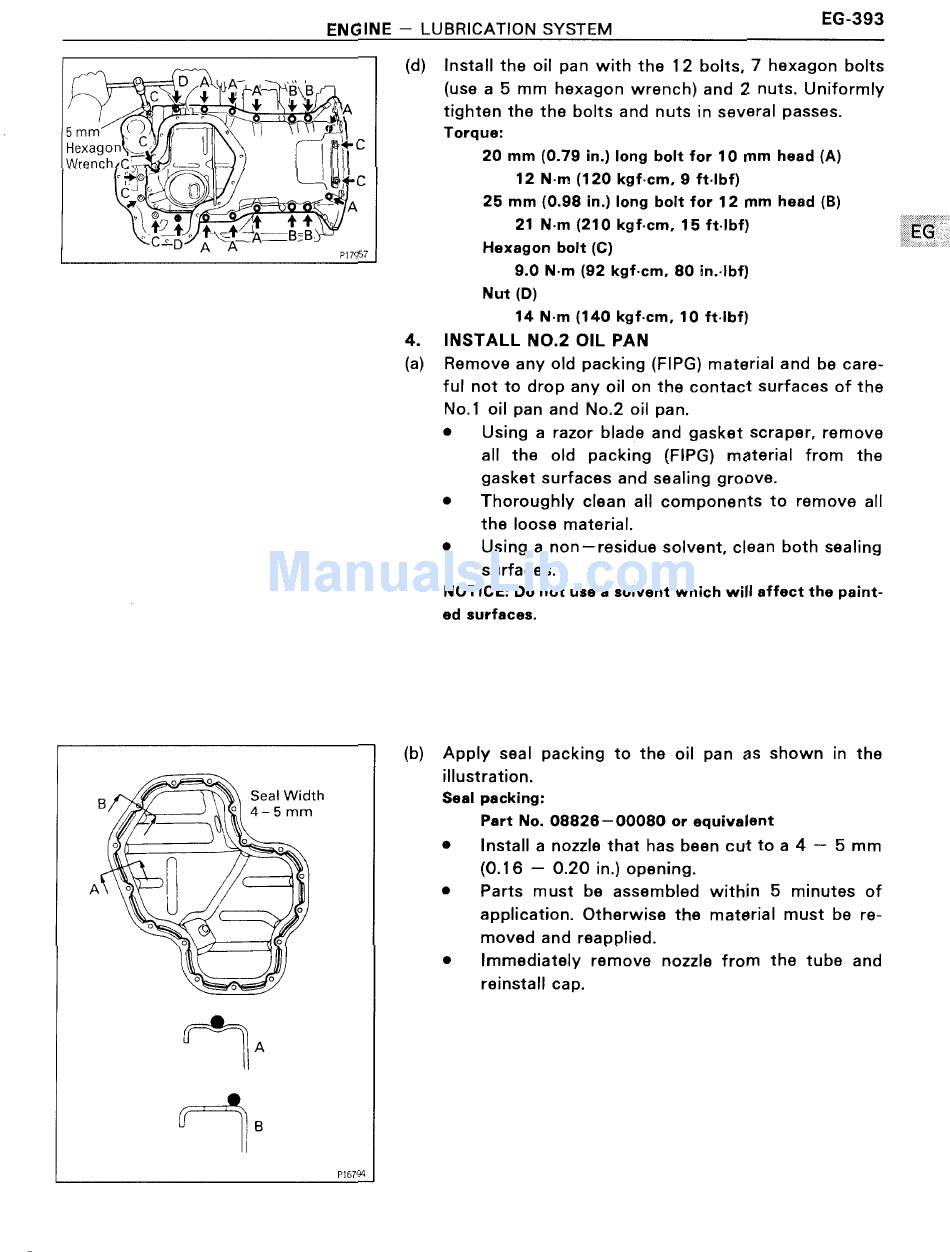

Toyota 3S-GE Repair Manual page 407

EG-393
ENGINE — LUBRICATION SYSTEM
5
Hexagon E;
Wrench Cf; V @_:>
<2: v . ,
\'
FHITT
DA ~
c i ii B\B
/ r\ n
->< \
/L
' ? ' 5 @
U- > 0 Q
>2 0
'
>9» »\ >17-D _ _ 4->-
cn->, 1-' U21-D
" _' _ '-
: _ __f - — ~) >
O
, C
A
P1795?
B _/=\ Seal Width
'- ° 4— 5 mm
P 0
\\ ' \
A fij in
° e '0
";q|||||||||IIIN
llll
A
rifle
Pl6794
(dl
4.
(8)
(bl
lnstall the oil pan with the 12 bolts, 7 hexagon bolts
(use a 5 mm hexagon wrench) and 2 nuts. Uniformly
tighten the the bolts and nuts in several passes.
Torque:
20 mm (0.79 in.) long bolt for 10 mm head (A)
12 N-m (120 kgf-cm. 9 ft-Ibf)
25 mm (0.98 in.) long bolt for 12 mm head (B)
21 N-m (210 kgf-cm, 15 ft-Ibf)
Hexagon bolt (C)
9.0 N-m (92 kgf-cm. 80 in.-lbf)
Nut (D)
14 N-m (140 kgf-cm, 10 ft-Ibf)
INSTALL NO.2 OIL PAN
Remove any old packing (FIPG) material and be care-
ful not to drop any oil on the contact surfaces of the
No.1 oil pan and No.2 oil pan.
I Using a razor blade and gasket scraper. remove
all the old packing (FIPG) material from the
gasket surfaces and sealing groove.
0 Thoroughly clean all components to remove all
the loose material.
O Using a non—residue solvent, clean both sealing
surfaces.
NOTICE: Do not use a solvent which will affect the paint-
ed surfaces.
Apply seal packing to the oil pan as shown in the
illustration.
Seal packing:
Part No. 08826-00080 or equivalent
0 lnstall a nozzle that has been cut to a 4 -— 5 mm
(0.16 — 0.20 in.) opening.
I Parts must be assembled within 5 minutes of
application. Otherwise the material must be re-
moved and reapplied.
0 Immediately remove nozzle from the tube and
reinstall cap.
