ENGINE — EFI SYSTEM EG-285
Negative (—) Terminal Cable
$§'%
((1)
all:

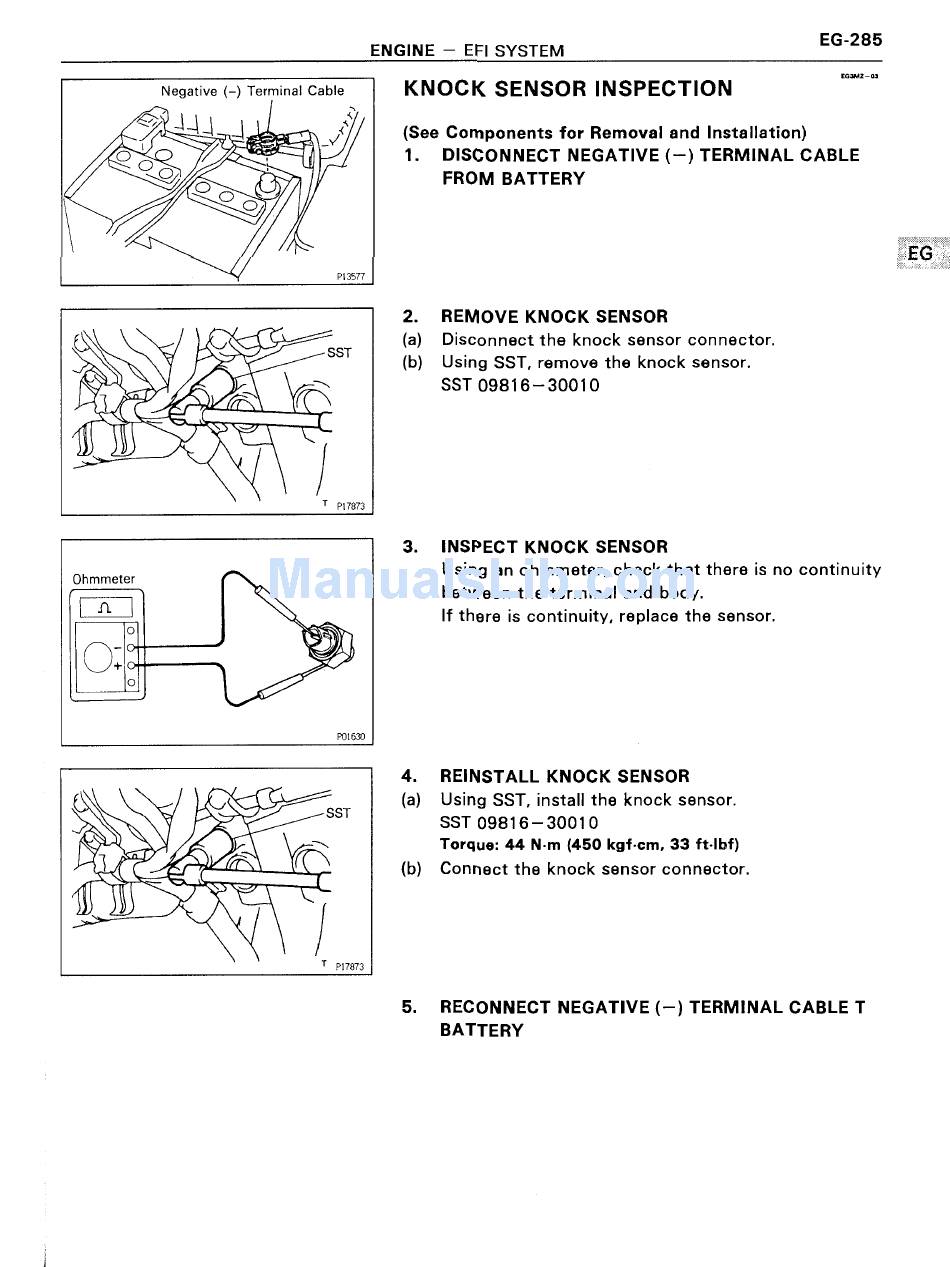

KNOCK SENSOR INSPECTION
(See Components for Removal and Installation)
1. DISCONNECT NEGATIVE (—) TERMINAL CABLE
FROM BATTERY
,Q\¢' SST
T were
0. " - ' * » +\ "
45"'
/
ll
2. REMOVE KNOCK SENSOR
(a) Disconnect the knock sensor connector.
(b) Using SST, remove the knock sensor.
SST 09816-30010
Ohmmeter
I
\
O;
3. INSPECT KNOCK SENSOR
Using an ohmmeter, check that there is no continuity
between the terminal and body.
If there is continuity, replace the sensor.
.Q\2¢
at - ' * » \ " '
/
ll
4. REINSTALL KNOCK SENSOR
(a) Using SST, install the knock sensor.
SST 09816-30010
Torque: 44 N-m (450 kgf-cm. 33 ft-Ibf)
(b) Connect the knock sensor connector.
5. RECONNECT NEGATIVE (—) TERMINAL CABLE T
BATTERY
