EG-333
ENGINE — COOLING SYSTEM
'no' <5»
K 'fig (See Components for Disassembly and Assembly)
if
I
can
PI5692
,4/S
\
0
JA
PI5693
®'7K\;
I
'
L 0
.
'*5
@' ' "
\
_ . .\
"" P5694
/I
TEWTP "
I
1/
H5694
u
t/(3 6 H' as.../A
/4-A
»\
:40
P1569?
E1IX—OI

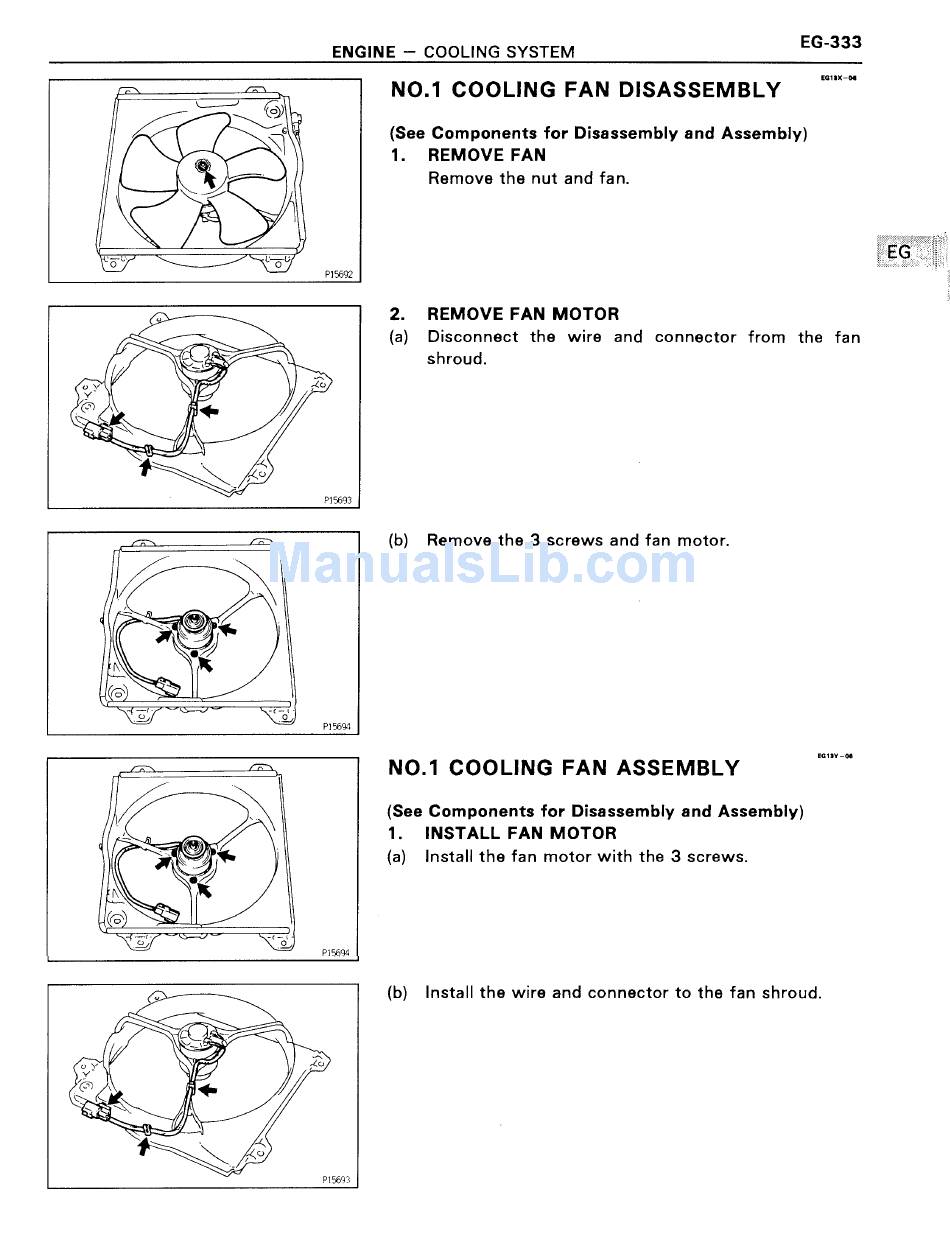

NO.1 COOLING FAN DISASSEMBLY E
1. REMOVE FAN
Remove the nut and fan.
' EG
2. REMOVE FAN MOTOR
(a) Disconnect the wire and connector from the fan
shroud.
(b) Remove the 3 screws and fan motor.
No.1 COOLING FAN ASSEMBLY """"°'
(See Components for Disassembly and Assembly)
1. INSTALL FAN MOTOR
(a) lnstall the fan motor with the 3 screws.
(b) lnstall the wire and connector to the fan shroud.
