EG'244 ENGINE - EFI SYSTEM
lGlWI—0l

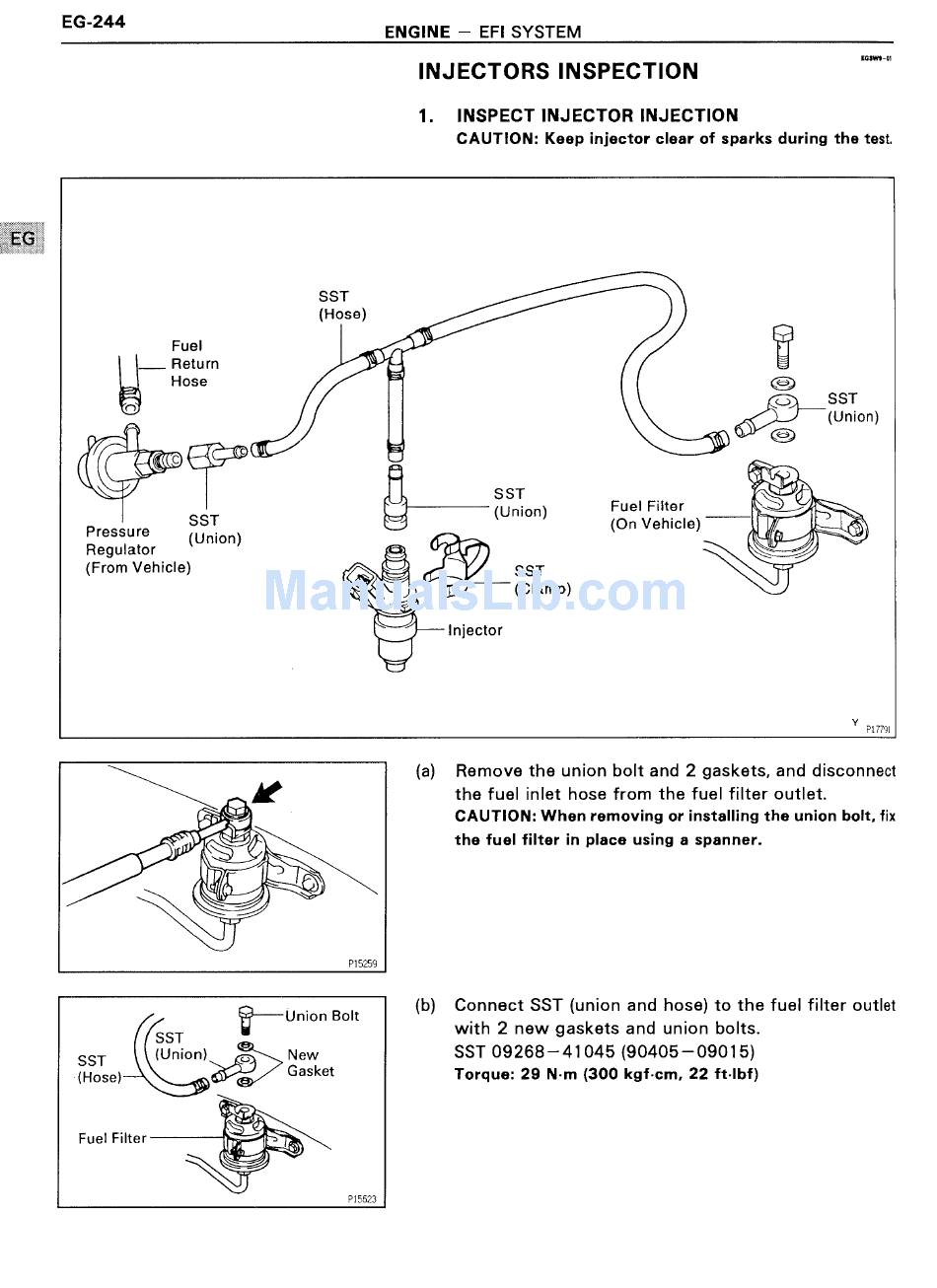

INJECTORS INSPECTION
1. INSPECT INJECTOR INJECTION
CAUTION: Keep injector clear of sparks during the test.
SST
(Hose)
Fuel
__ Return
Hose
m 7%
SST
Pressure (Union)
Regulator
(From Vehicle)
( ( @ ( l 3
T (Clamp)
\____¢/
Injector
SST
(Union)
SST _
(Union) FUGI FIIIOF
(On Vehicle)
SST T'
Y Pt779l
\ 8*
'§?l
§I
P1525')
E-—Union Bolt
SST
SST (Union) New
(Hose) Gasket
Fuel Filter
Pi5623
Remove the union bolt and 2 gaskets, and disconnect
the fuel inlet hose from the fuel filter outlet.
CAUTION: When removing or installing the union bolt. fix
the fuel filter in place using a spanner.
Connect SST (union and hose) to the fuel filter outlet
with 2 new gaskets and union bolts.
SST 09268—4l O45 (90405—O90l 5)
Torque: 29 N-m (300 kgf-cm, 22 ft-Ibf)
