Toyota 3S-GE Repair Manual page 323

EG-309
ENGINE — COOLING SYSTEM
on Radiator; / Air Drain Plug
/ k)
' Q
/ \
' 1 ' - I
On Heater Water Valve
//"'/
>_>__//__
//T'/T Air Drain Plug
e \g
U 'I Q9
P0557l '
P05572 202768
W §'.,,
\
1st Stop Point,
¢'<73?2F¢,1fl
\ l \/ (I)
6"
\\\\\\ 7
' '£2 I Q a.
'Z
'\
Pl 6707
\ My Ml)
/'
,
IJ
*$' * t'i
'\
P16709

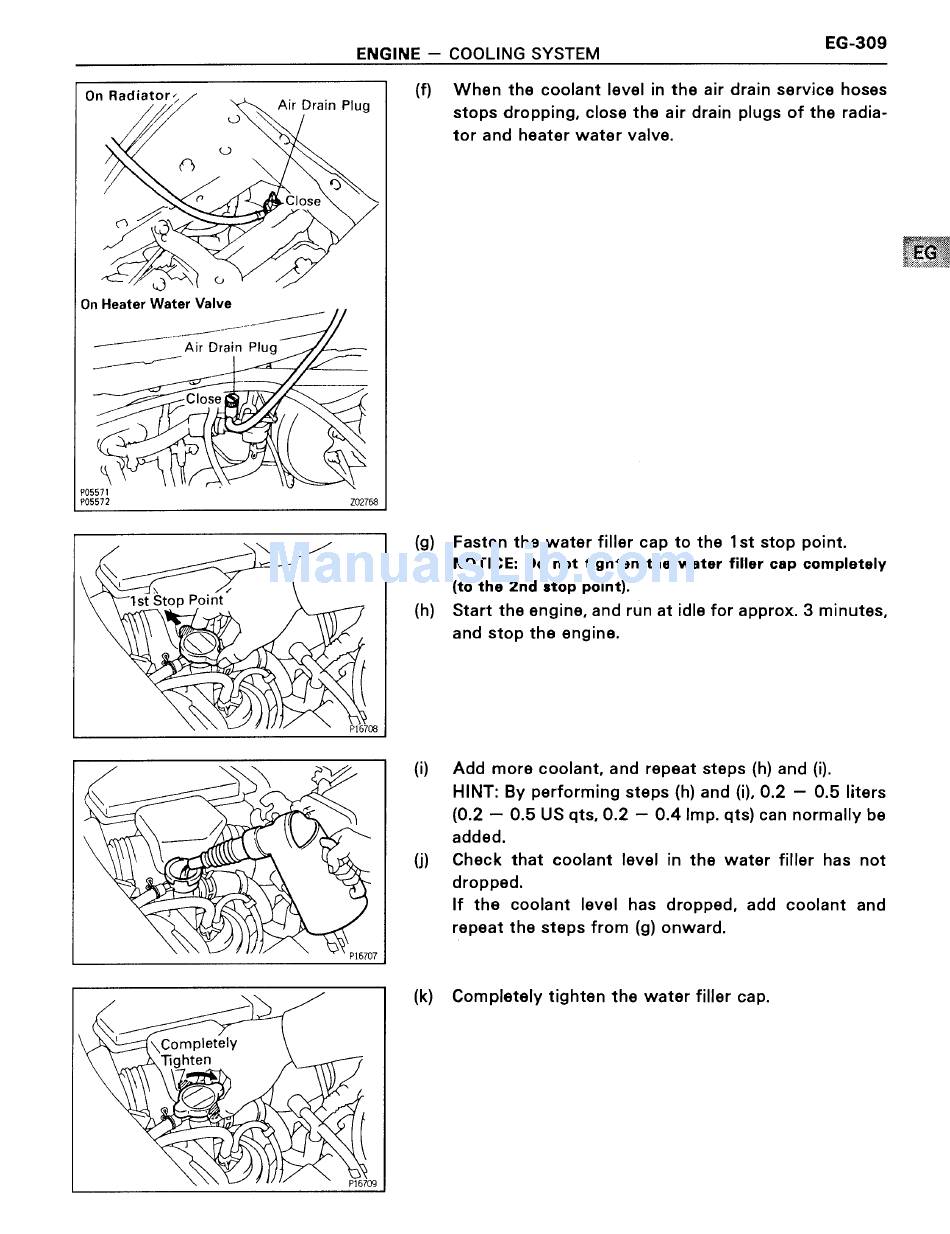

(f) When the coolant level in the air drain service hoses
stops dropping, close the air drain plugs of the radia-
tor and heater water valve.
(g) Fasten the water filler cap to the 1st stop point.
NOTICE: Do not tighten the water filler cap completely
(to the 2nd stop point).
(h) Start the engine, and run at idle for approx. 3 minutes,
and stop the engine.
Add more coolant, and repeat steps (h) and (i).
HINT: By performing steps (h) and (i), 0.2 — 0.5 liters
(0.2 — 0.5 US qts, 0.2 —- 0.4 Imp. qts) can normally be
added.
(j) Check that coolant level in the water filler has not
dropped.
If the coolant level has dropped, add coolant and
repeat the steps from (g) onward.
(k) Completely tighten the water filler cap.
