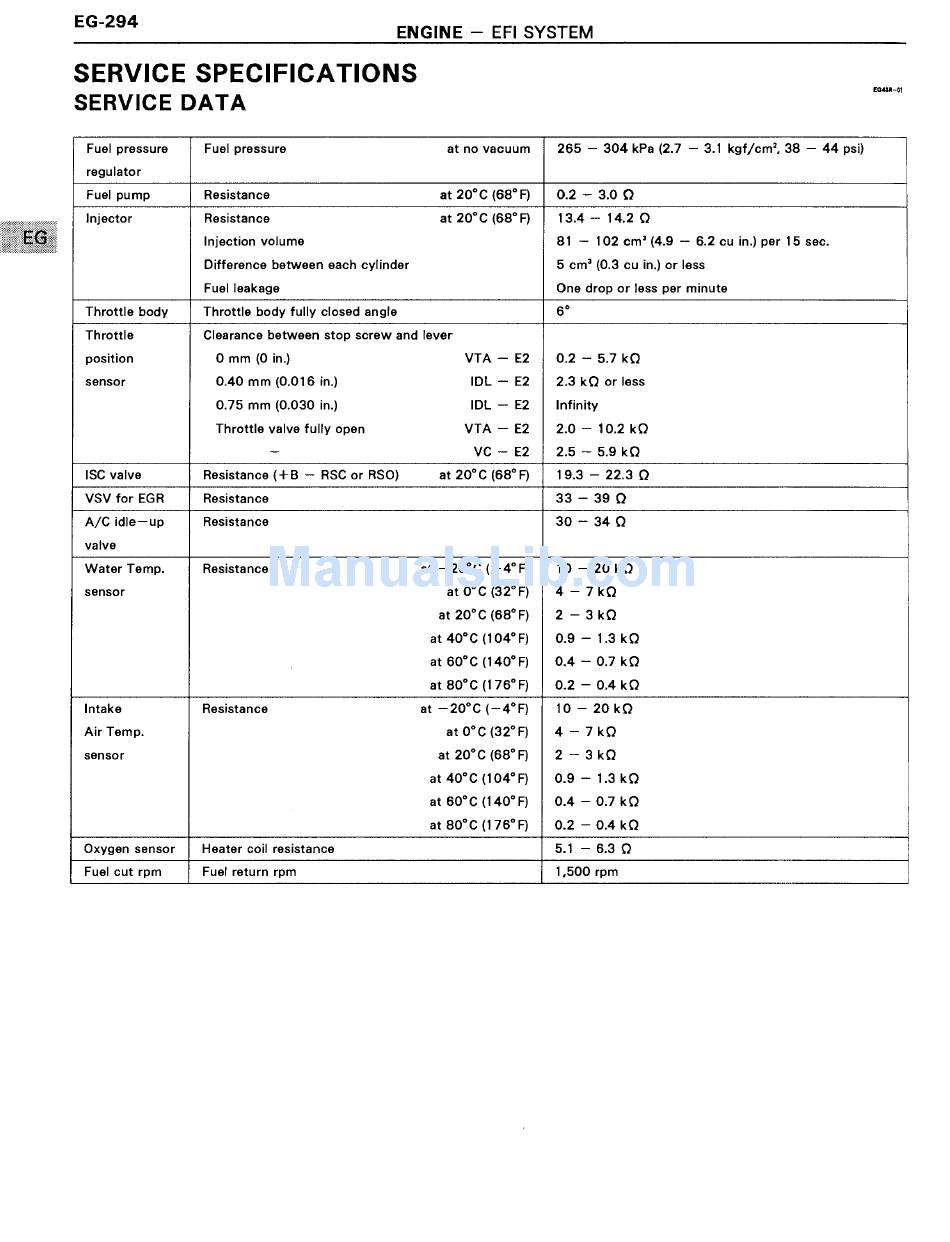

EG-294
ENGINE — EFI SYSTEM
SERVICE SPECIFICATIONS
SERVICE DATA
Fuel pressure
regulator
Fuel pressure
at I10 VBCUUITI
265 — 304 kPa (2 7 — 3 1 kgf/cm' 38 — 44 psi)
Fuel pump
Resistance
at 20°C (68° F) 0.2 —- 3.0 Q
lnj ector Resistance
Injection volume
at 20°C (68° F)
Difference between each cylinder
Fuel leakage
13.4 -— 14.2 Q
81 — 102 cm' (49 — 62 cu In)per 15 sec
5 cm' (0.3 cu in) or less
One drop or less per minute
Throttle body Throttle body fully closed angle
6e
Throttle
position
sensor
Clearance between stop screw and lever
O mm (0 in.)
0.40 mm (0.016 in.)
0.75 mm (0.030 in.)
Throttle valve fully open
VTA — E2
IDL — E2
IDL — E2
VTA — E2
VC -— E2
0.2 — 5.7 KQ
2.3 kQ or less
Infinity
2.0 — 10.2 kQ
2.5 — 5.9 KQ
ISC valve Resistance (+B — RSC or RSO)
at 20°C (68° F) 19.3 — 22.3 Q
VSV for EGR
Resistance
33—39Q
A/C idle— up
valve
Resistance
30-340
Water Temp.
sensor
Resistance
at -20°c (—4°F)
at o°c (32°F)
at 20°c (ee° F)
at 4o°c (104°F)
at eo°c (140°F)
at eo°c (176°F)
10 — 20 kQ
4 — 7kQ
2 — 3kQ
0.9 — 1.3 kQ
0.4 —- 0.7 kQ
0.2 — 0.4 kQ
Intake
Air Temp.
sensor
Resistance at —20°C (—4°F)
at 0°C (32°F)
at 20°C (68° F)
at 40°C (104°F)
at 60°C (140°F)
at 80°C (176°F)
10 — 20 kQ
4 — 7kQ
2 —- 3kQ
0.9 —1.3kQ
0.4 — 0.7 kQ
0.2 — 0.4 kQ
Oxygen sensor Heater coil resistance 5.1 — 6.3 Q
Fuel cut rpm Fuel return rpm 1,500 rpm
