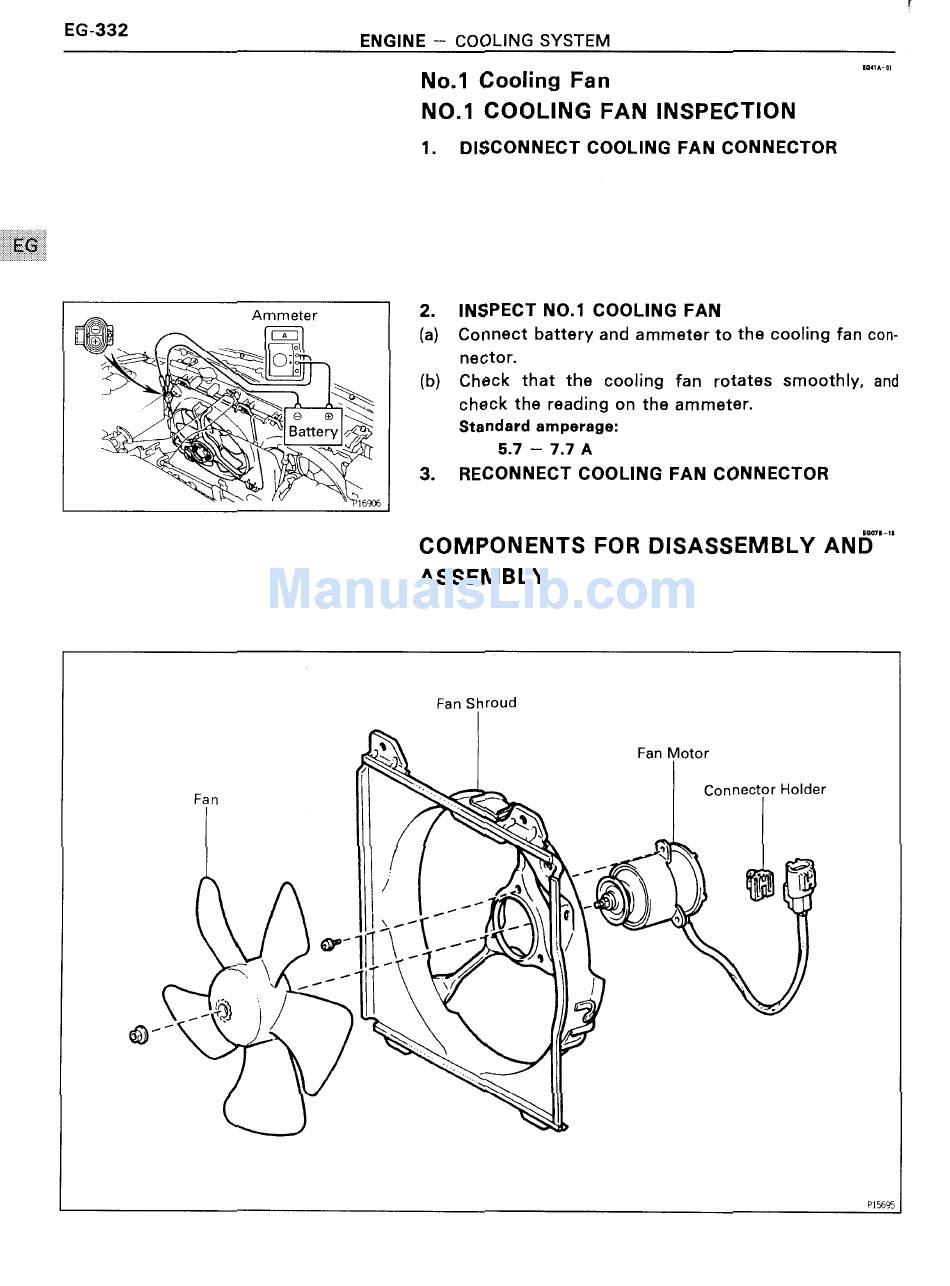

EG 332 ENGINE —- COOLING SYSTEM
ld4IA OI
No.1 Cooling Fan
NO.1 COOLING FAN INSPECTION
1. DISCONNECT COOLING FAN CONNECTOR
2. INSPECT NO.1 COOLING FAN
(a) Connect battery and ammeter to the cooling fan con-
Ammeter
_ @ '
-9/A
4' / v
//l e
nector.
(b) Check that the cooling fan rotates smoothly, and
i'\-.|
V
.4 J,
check the reading on the ammeter.
Standard amperage:
5.7 — 7.7 A
3. RECONNECT COOLING FAN CONNECTOR :2
iOfl7l—ll
COMPONENTS FOR DISASSEMBLY AND
ASSEMBLY
an
-- ~ \) -
\/, /' z t
"I /'I,»' I I_I/
I', '\// ' \ I
, I 'Q
at / \ /
Fan Shroud
Fan Motor
Connector Holder
i f -at
$2
-.i : g§§
\ ..
P15695
