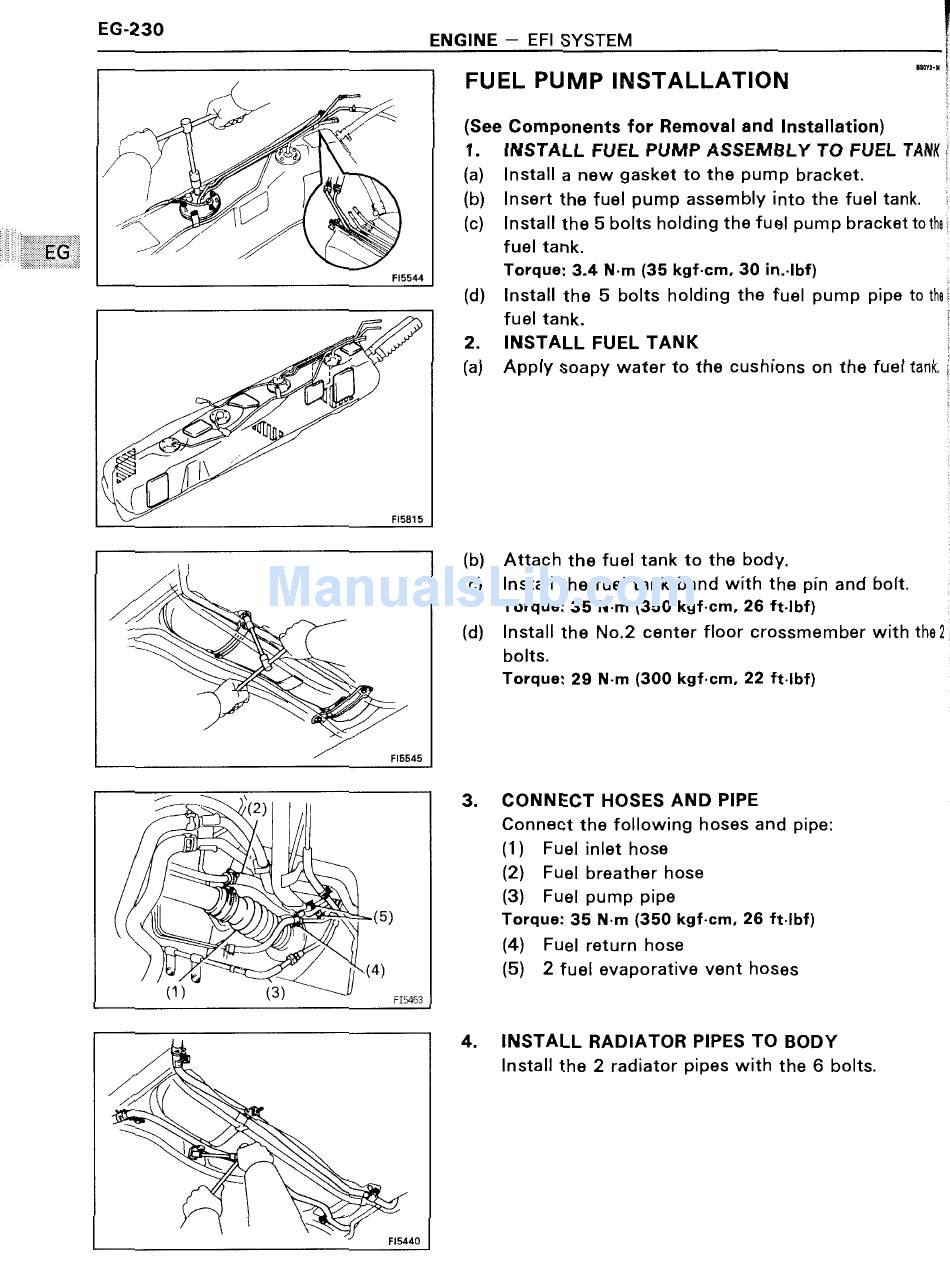

FUEL PUMP INSTALLATION
I
(See Components for Removal and Installation) 1 .
1. INSTALL FUEL PUMP ASSEMBLY T0 FUEL TANK
(a) Install a new gasket to the pump bracket.
(b) Insert the fuel pump assembly into the fuel tank.
(c) lnstall the 5 bolts holding the fuel pump bracket totha
fuel tank.
Torque: 3.4 N-m (35 kgf-cm. 30 in.-lbf)
(d) Install the 5 bolts holding the fuel pump pipe to the
fuel tank.
2. INSTALL FUEL TANK
(a) Apply soapy water to the cushions on the fuel tank.
(b) Attach the fuel tank to the body.
(c) lnstall the fuel tank band with the pin and bolt.
Torque: 35 N-m (350 kgf-cm. 26 ft-Ibf)
(d) lnstall the No.2 center floor crossmember with the2
bolts.
Torque: 29 N-m (300 kgf-cm. 22 ft-Ibf)
CONNECT HOSES AND PIPE
Connect the following hoses and pipe:
(1) Fuel inlet hose
(2) Fuel breather hose
(3) Fuel pump pipe
Torque: 35 N-m (350 kgf-cm. 26 ft-Ibf)
(4) Fuel return hose
(5) 2 fuel evaporative vent hoses
INSTALL RADIATOR PIPES TO BODY
lnstall the 2 radiator pipes with the 6 bolts.
