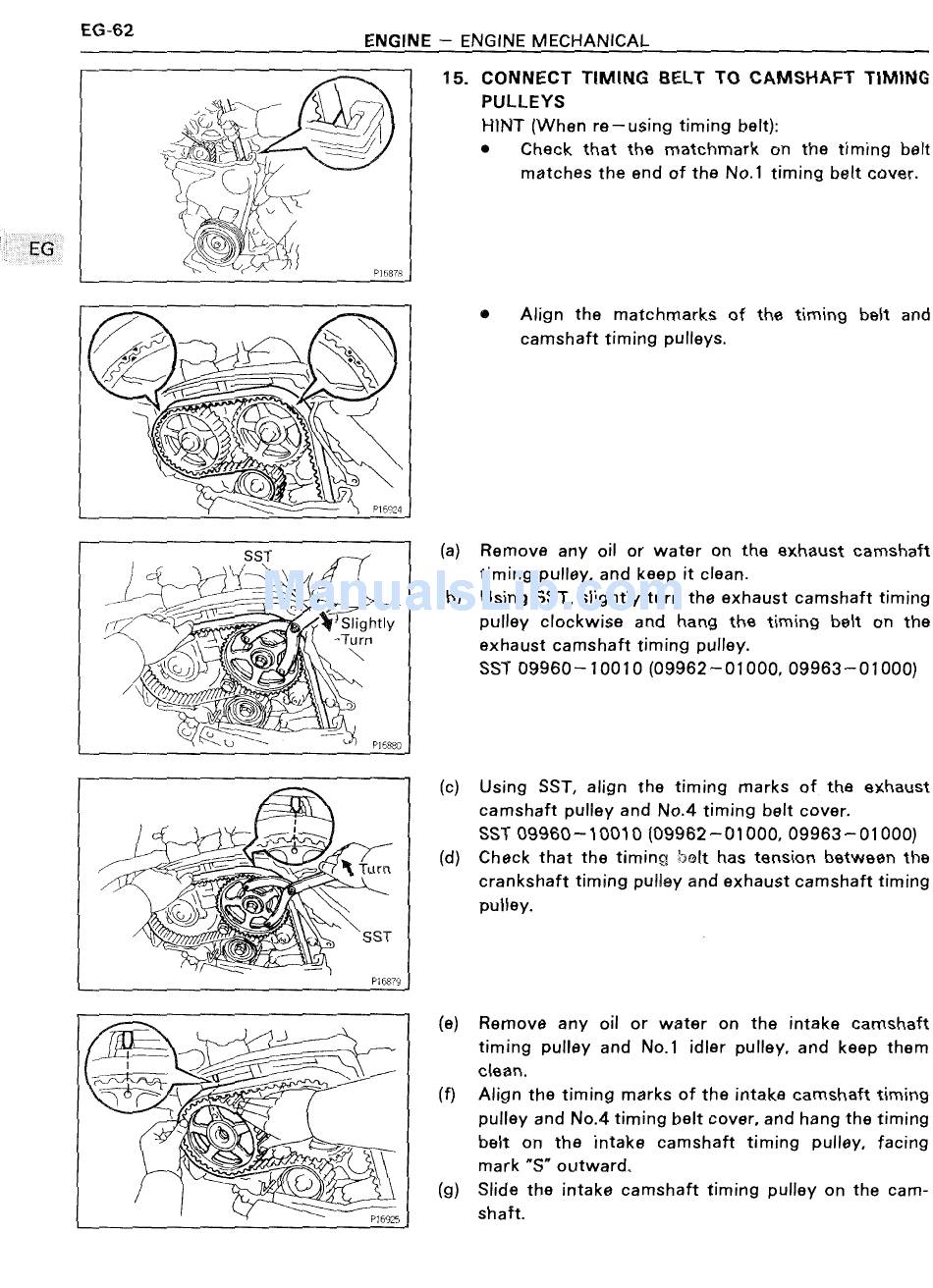

EG'62 ENGINE — ENGINE MECHANICAL
7,.\/
mi °(§§"T(,
{Wt
\ /
X
/
E6 K)
15. CONNECT TIMING BELT TO CAMSHAFT TIMING
PULLEYS
HINT (When re-using timing belt):
Check that the matchmark on the timin belt
1-1
\/
H5878
,/5/
' M5880
. \:~ ,
:'/T E '\ Turn
Z@
. L In ____
P115879
ms \
'1
e
€'*\;;?t5:-~.. -re, ' A'
fi\)I~
L/©
-
P16925
*1' I matches the end of the No.1 timing belt cover.
0 Align the matchmarks of the timing belt and
camshaft timing pulleys.
/SST ,
'E4 - 5'
W7 // Vsiighiiv
/' " ~Tu rn
12i\»> \
Q
Remove any oil or water on the exhaust camshaft
timing pulley, and keep it clean.
Using SST, slightly turn the exhaust camshaft timing
pulley clockwise and hang the timing belt on the
exhaust camshaft timing pulley.
SST 09960-10010 (09962-01000, 09963-01000)
Using SST, align the timing marks of the exhaust
camshaft pulley and No.4 timing belt cover.
SST 09960-10010 (09962-01000, 09963-01000)
Check that the timing belt has tension between the
crankshaft timing pulley and exhaust camshaft timing
pulley.
Remove any oil or water on the intake camshaft
timing pulley and No.1 idler pulley, and keep them
clean.
Align the timing marks of the intake camshaft timing
pulley and No.4 timing belt cover, and hang the timing
belt on the intake camshaft timing pulley, facing
mark "S" outward.
Slide the intake camshaft timing pulley on the cam-
shaft.
