EG-255
ENGINE — EFI SYSTEM _
(Q, <
§'
I
4....
~ we
\\ Z
P1'/'B49
--r Q'
.
figgfill

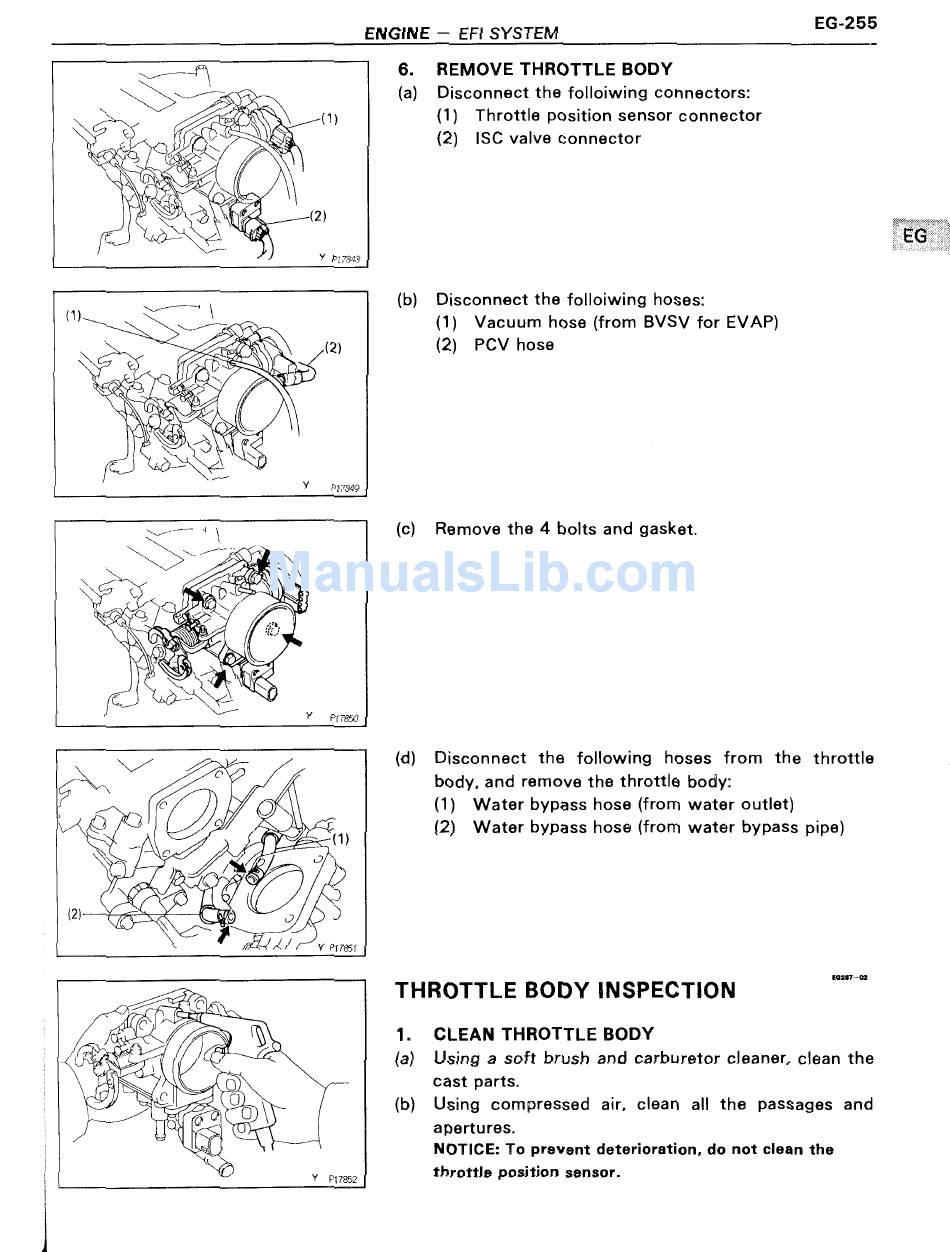

REMOVE THROTTLE BODY
Disconnect the folloiwing connectors:
(1) Throttle position sensor connector
(2) ISC valve connector
Disconnect the folloiwing hoses:
(1) Vacuum hose (from BVSV for EVAP)
(2) PCV hose
Remove the 4 bolts and gasket.
Disconnect the following hoses from the throttle
body, and remove the throttle body:
(1) Water bypass hose (from water outlet)
(2) Water bypass hose (from water bypass pipe)
, THROTTLE BODY INSPECTION
F,/'tr is'
*6 Pl 7852
CLEAN THROTTLE BODY
Using a soft brush and carburetor cleaner, clean the
cast parts.
Using compressed air, clean all the passages and
apertures.
NOTICE: To prevent deterioration. do not clean the
throttle position sensor.
