Toyota 3S-GE Repair Manual page 110

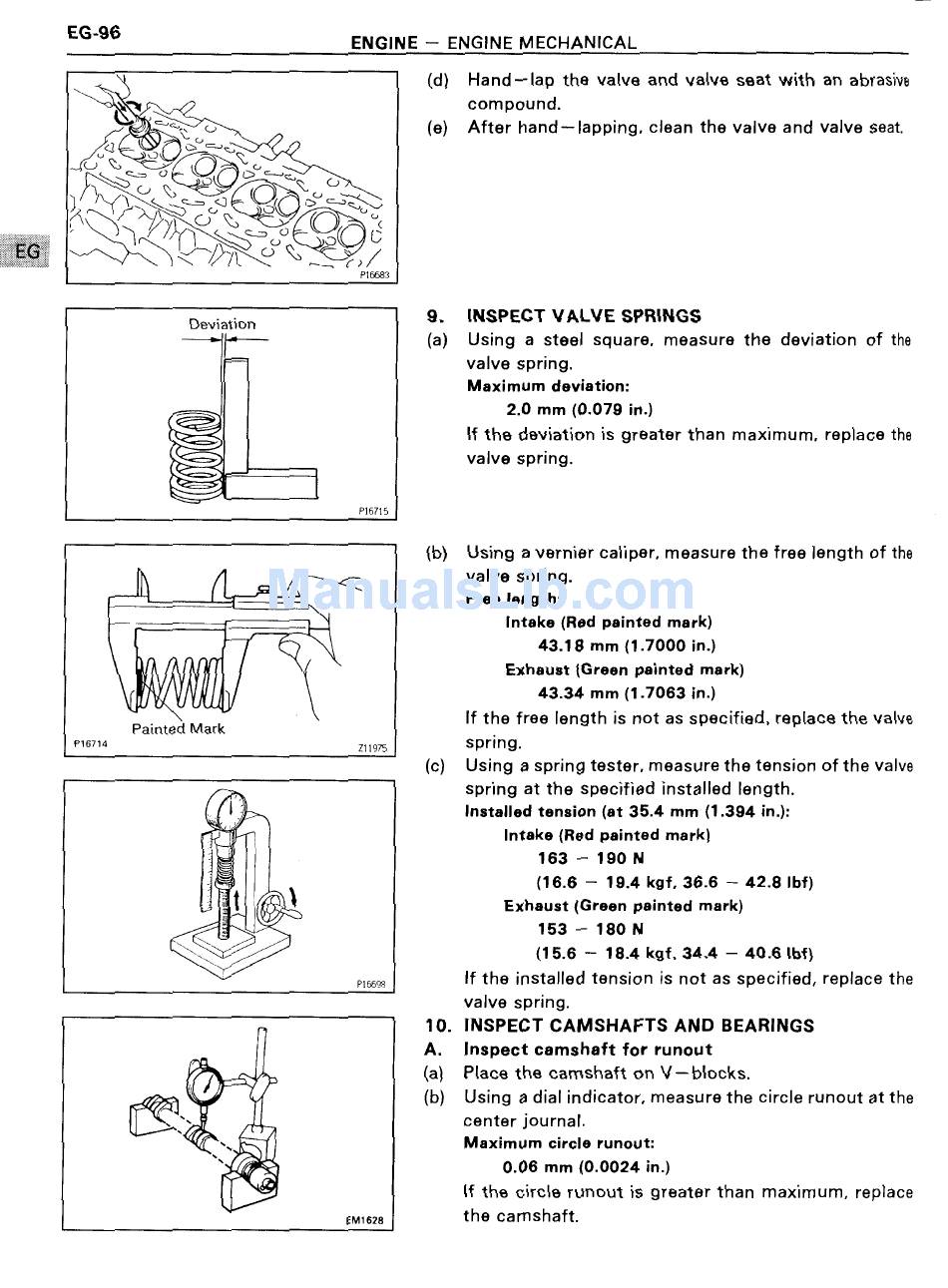

EG-96
ENGINE — ENGINE MECHANICAL
a 1%'
7 4
442%
56> 41 , 9
F
t/C" op C
A
3
\ c 7A¢C
ca
§:>QQ \>
10 %Q:0O
\£¢~/»? Q s-_
QC'
I
KJKQ
[EKG
P1668?
Deviation
1
P115715
I 9
I 1 l./l/ll l l
Q.
w
~..
\-
/
P16698
A.
(94-1" £21
.
EM1628
(d) Hand—lap the valve and valve seat with an abrasive
compound.
(e) After hand—lapping. clean the valve and valve seat.
9.
(8)
INSPECT VALVE SPRINGS
Using a steel square, measure the deviation of the
valve spring.
Maximum deviation:
2.0 mm (0.079 in.)
If the deviation is greater than maximum, replace the
valve spring.
(b) Using a vernier caliper. measure the free length of the
valve spring.
Free length:
lntake (Rad painted mark)
43.18 mm (1.7000 in.)
Exhaust (Green painted mark)
43.34 mm (1 .7063 in.)
If the free length is not as specified, replace the valve
spring.
Using a spring tester, measure the tension of the valve
spring at the specified installed length.
Installed tension (at 35.4 mm (1.394 in.):
lntake (Red painted mark)
163 — 190 N
(16.6 — 19.4 kgf, 36.6 —— 42.8 Ibf)
Exhaust (Green painted mark)
153 — 180 N
(15.6 — 18.4 kgf, 34.4 — 40.6 Ibf)
If the installed tension is not as specified, replace the
valve spring.
INSPECT CAMSHAFTS AND BEARINGS
Inspect camshaft for runout
Place the camshaft on V—blocks.
Using a dial indicator, measure the circle runout at the
center journal.
Maximum circle runout:
0.06 mm (0.0024 in.)
If the circle runout is greater than maximum, replace
the camshaft.
(C)
10.
