ENGINE — COOLING SYSTEM EG-339
M \
Engine
Main
Relay
'rt
Q
4
PI3766
Ohmmeter Ohmmeter
IE Continuity
IO; "
Ohmmeter 5
ll!' =14" I
/'gt' 'Q 3 No Continu
§...a/
Continuity
Posim
EH
: 1 - g m
Ohmmeter Ohmmeter
i ! No Continuity i !
Iitiii I
E L.Ti*;|;! >
I' ).'a§L@
@- H
5;, E'
- . -/I
I R'?
Q!
3
Continuity
Battery
P08l0i
E(IINE—OI

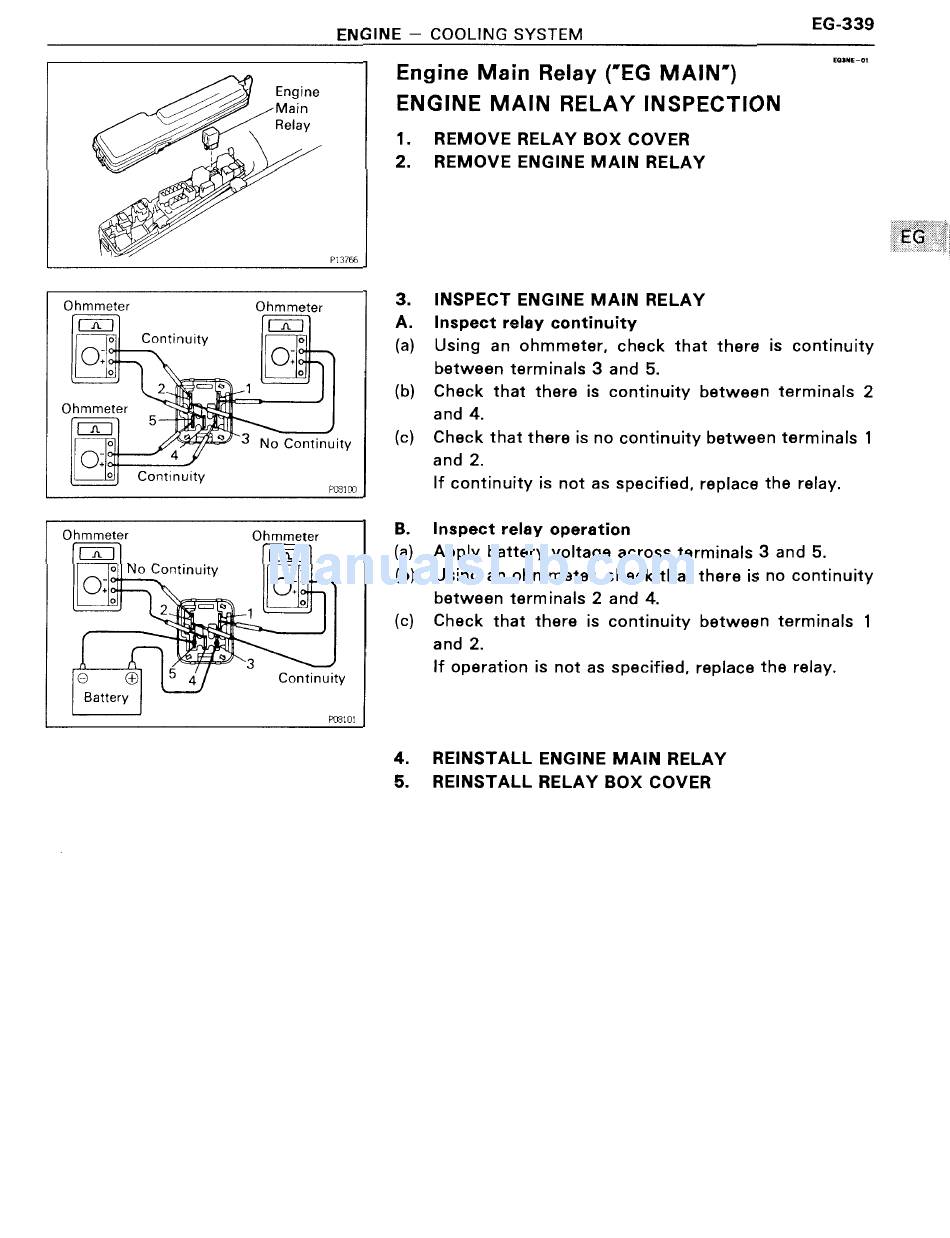

Engine Main Relay ('EG MAIN')
ENGINE MAIN RELAY INSPECTION
1
2.
3
A.
la)
(b)
(c)
B.
la)
(b)
(C)
4
5.
REMOVE RELAY BOX COVER
REMOVE ENGINE MAIN RELAY
INSPECT ENGINE MAIN RELAY
Inspect relay continuity
Using an ohmmeter, check that there is continuity
between terminals 3 and 5.
Check that there is continuity between terminals 2
and 4.
Check that there is no continuity between terminals 1
and 2.
If continuity is not as specified, replace the relay.
Inspect relay operation
Apply battery voltage across terminals 3 and 5.
Using an ohmmeter, check that there is no continuity
between terminals 2 and 4.
Check that there is continuity between terminals 1
and 2.
If operation is not as specified, replace the relay.
REINSTALL ENGINE MAIN RELAY
REINSTALL RELAY BOX COVER
